Motion Sensor Stair LED Strip 5-28 Steps Stair COB LED Strip Staircase Tape LED Stair Lighting

Product description

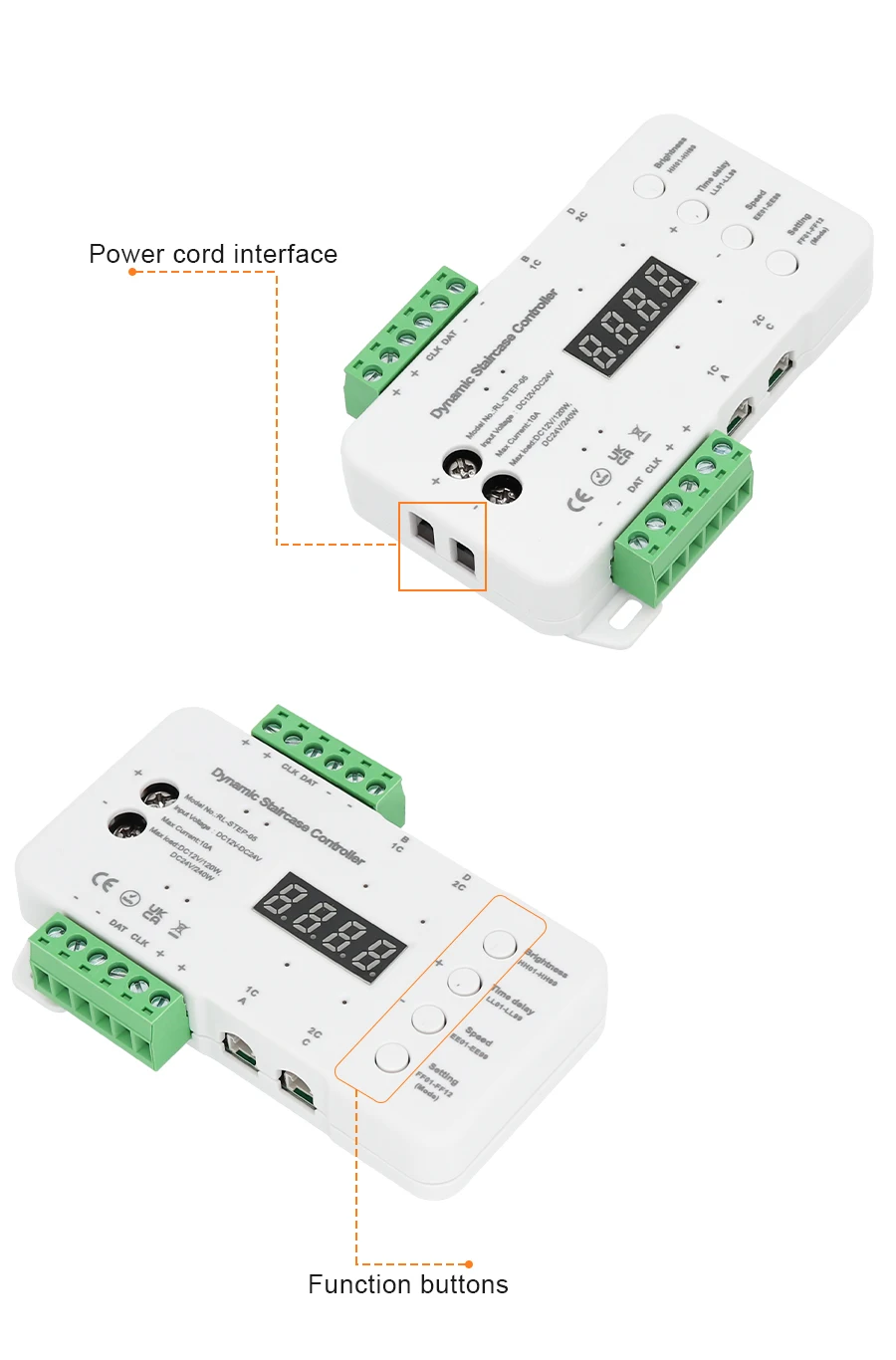

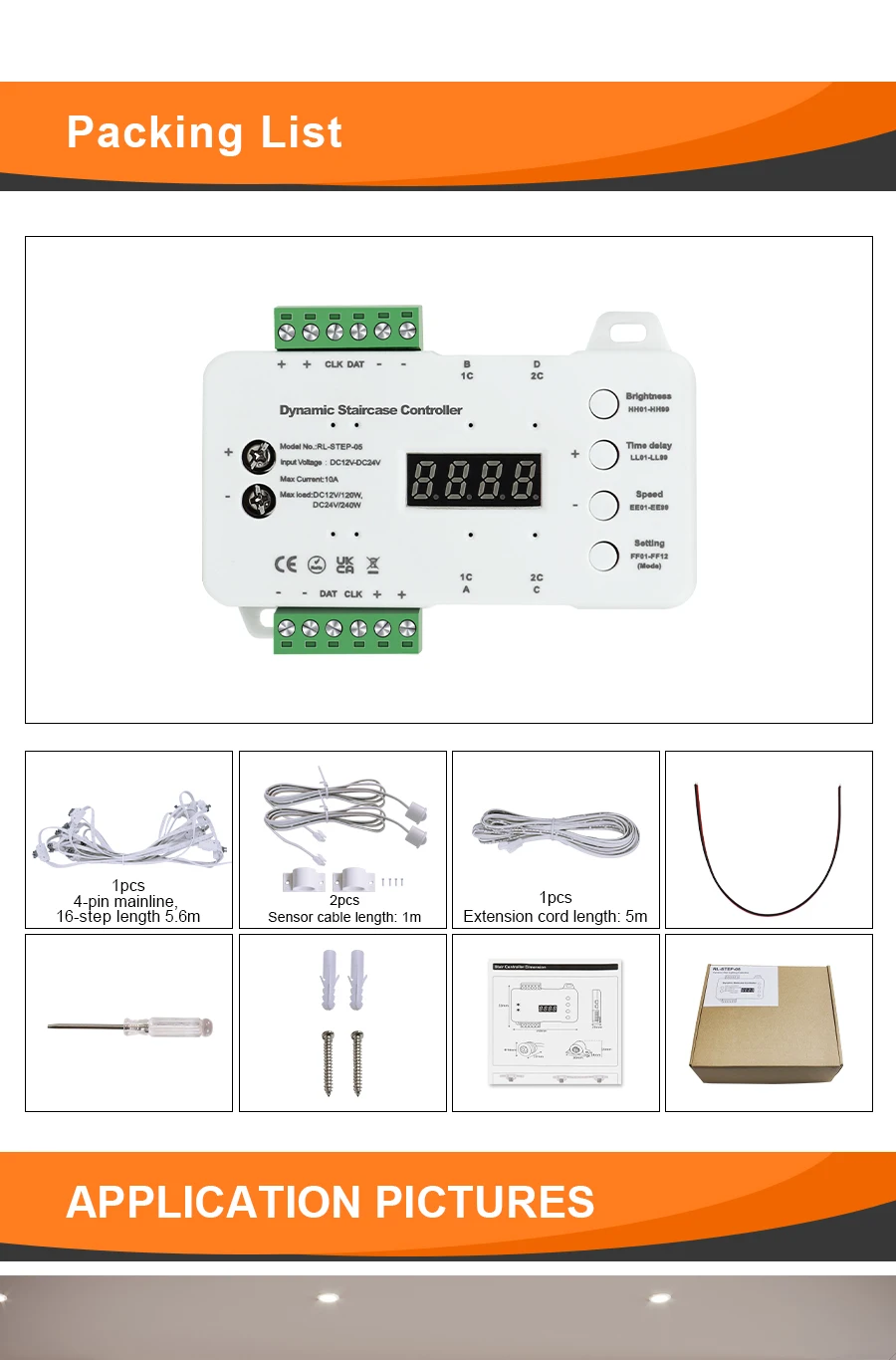

Product Name: Stair Motion Sensor Switch

Voltage: DC12V / DC24V

Max current: 10A

Power: each step<15w total<240w (DC12V /120W; DC24V/ 240W Max)

Sensors: 2 PIR Sensoron both sides

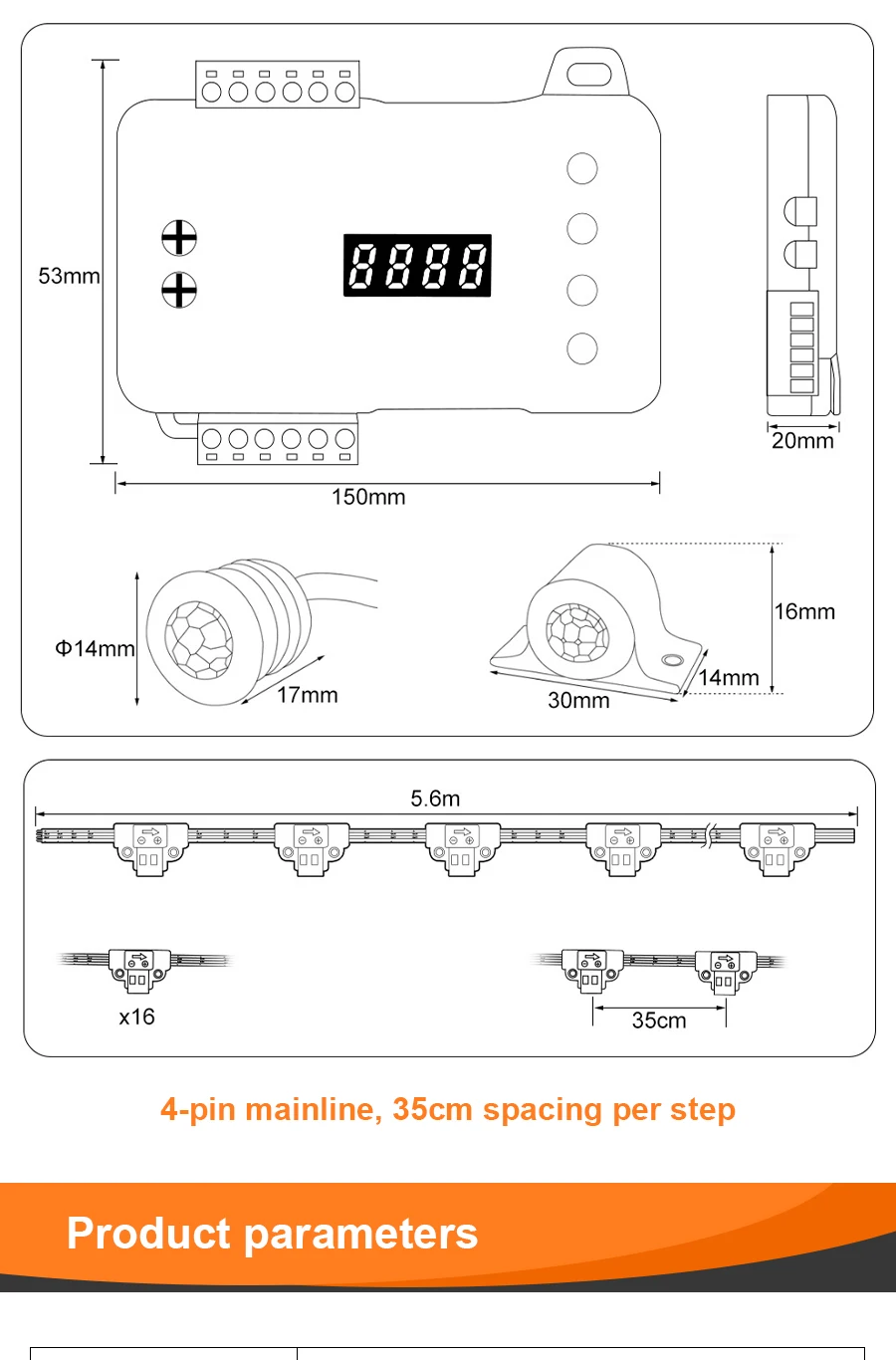

Special function: 4PIN main wire for Max 99 steps Delay Time/Speed / dimmable Lights and 12 Model

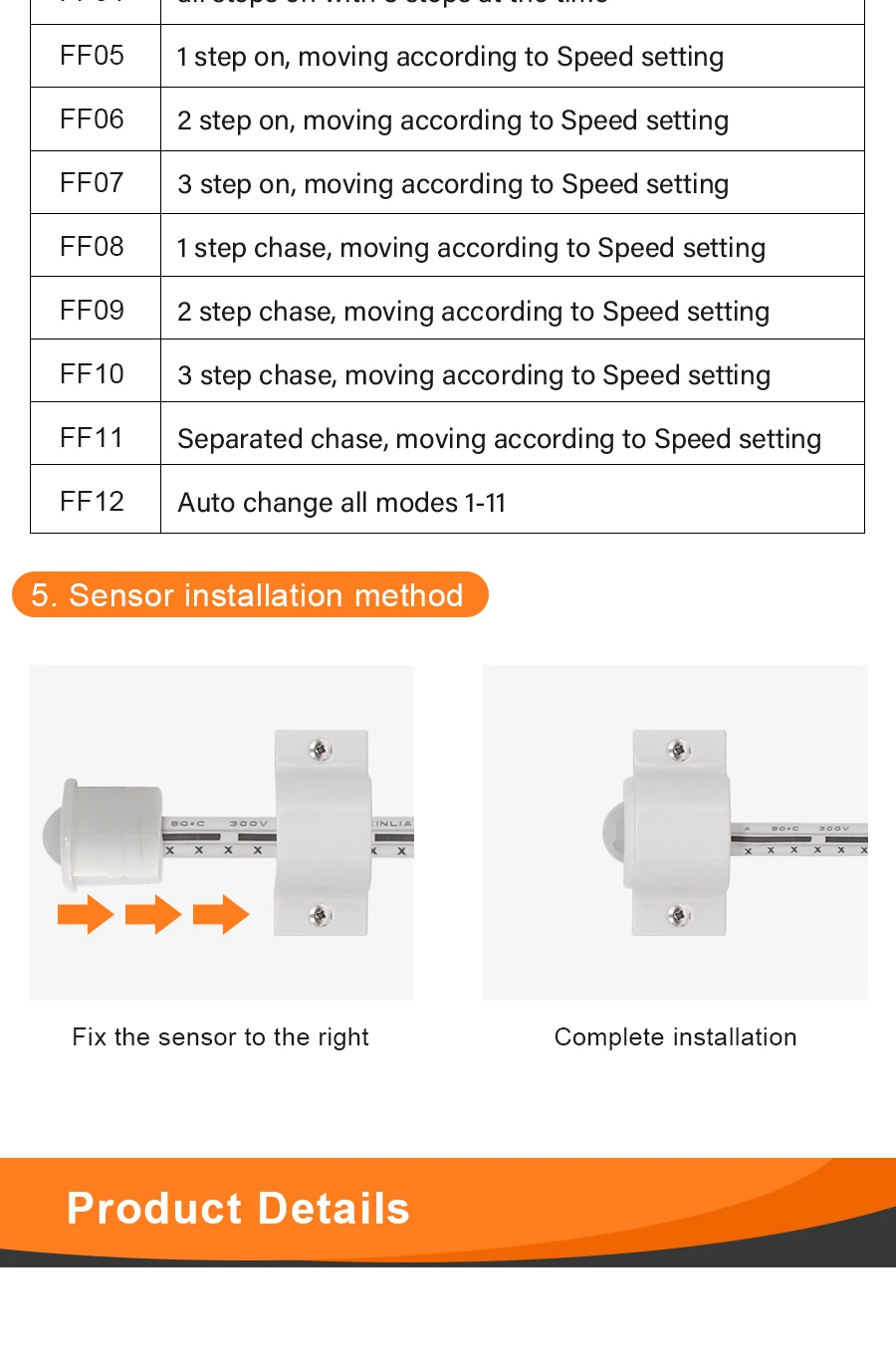

PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )

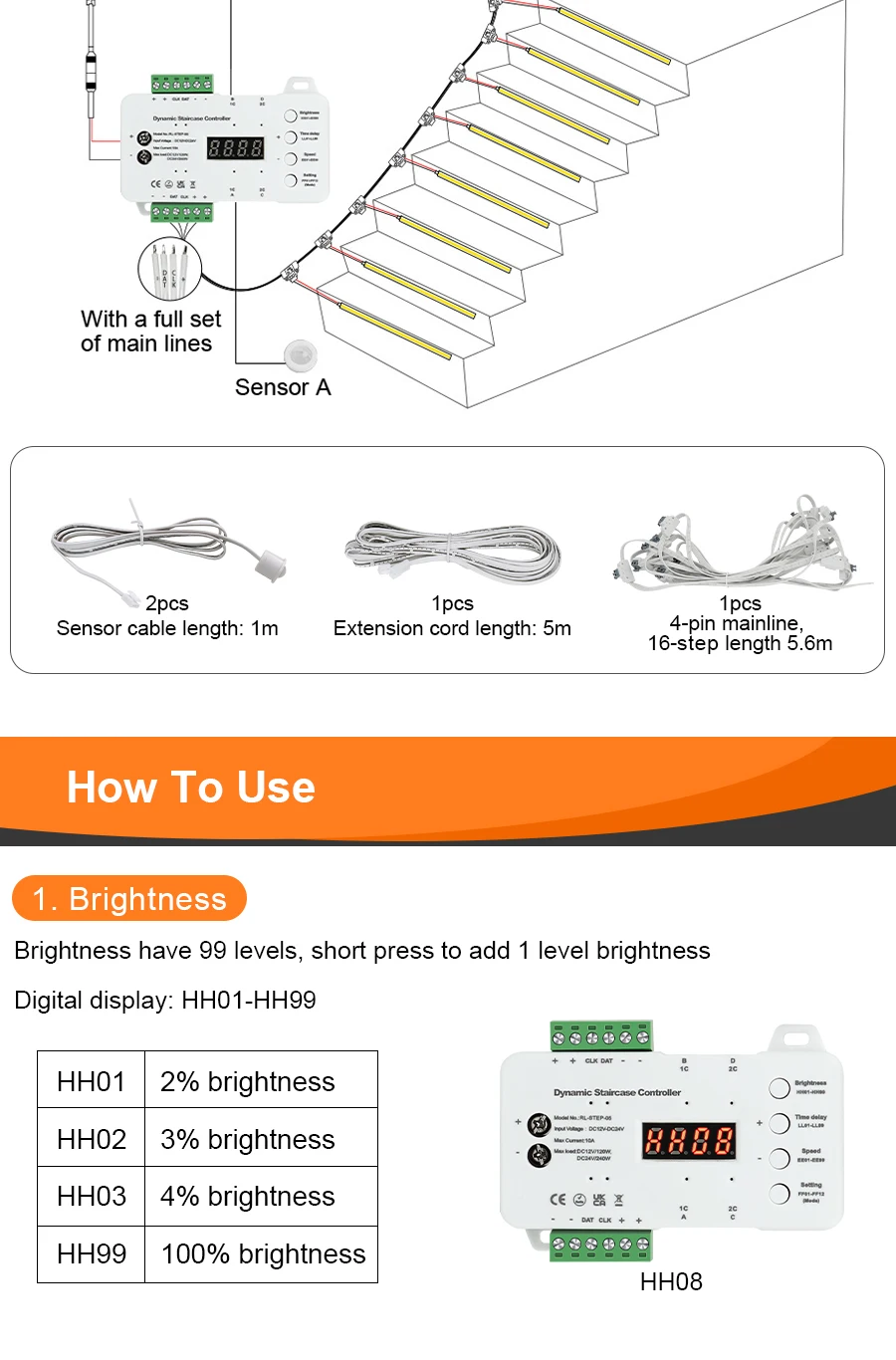

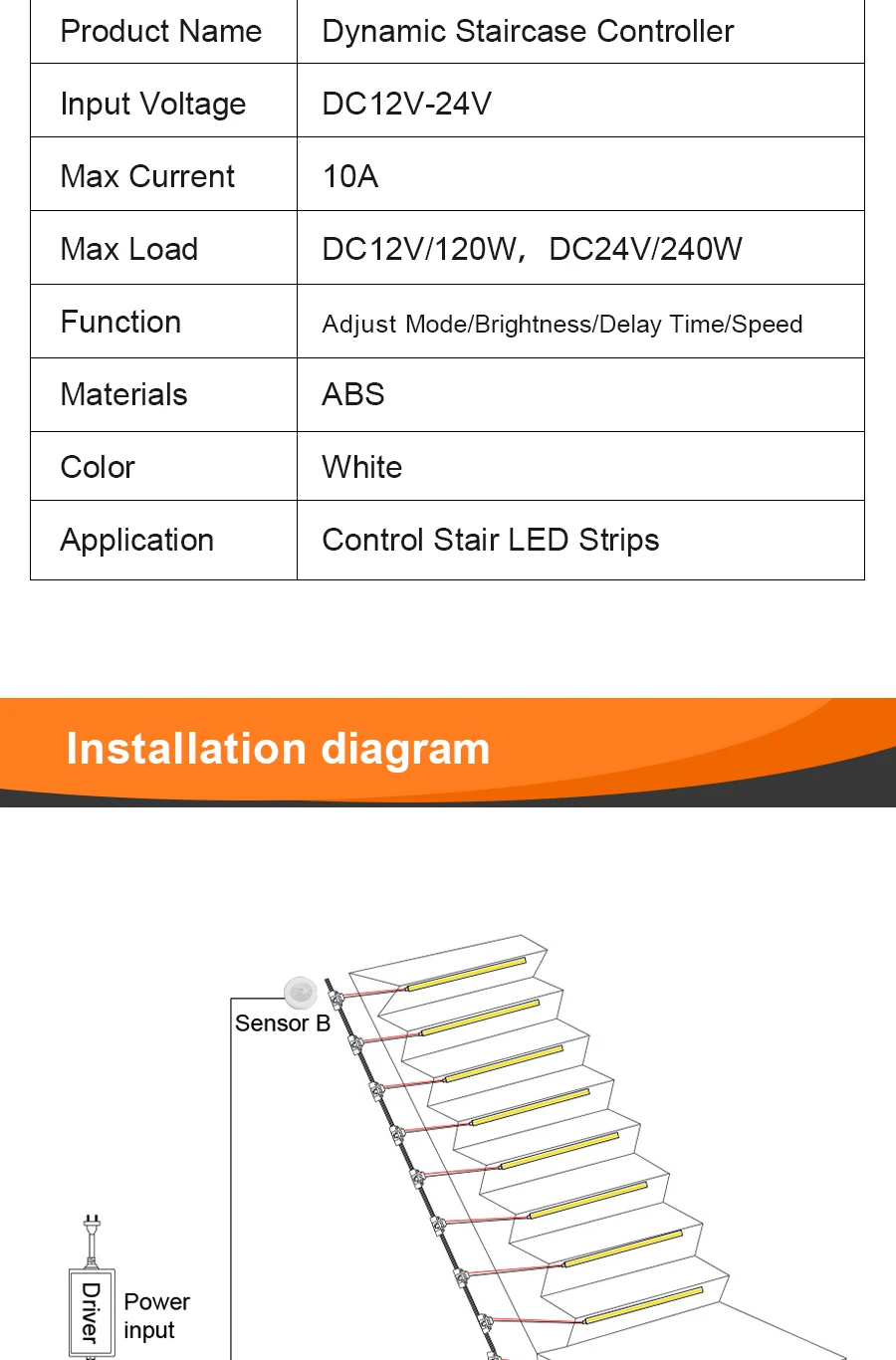

Features: there's a main line cable to conect all strips, no need complicate wiring

Parameters of LED strip

COB Strip width: 8mm

LED chip quantity: 480 LEDs/m

Voltage: DC 24V

Watt: 10W/m

Length: 1 meter per piece

Thickness: 2.2~2.5mm

Sticker: original 3M SLE adhesive tape

Wire length on the led strip: 15cm

Waterproof grade: IP30

Cuttable: yes (50mm/cut)

Brightness: 1000~1100LM/m

Special Features

1. No need wiring for each led strip, very easy to in stall led strips.

2. With daylight sensor, can make the controller don't work on daylight.

3. With remote controller to control the lighting system.

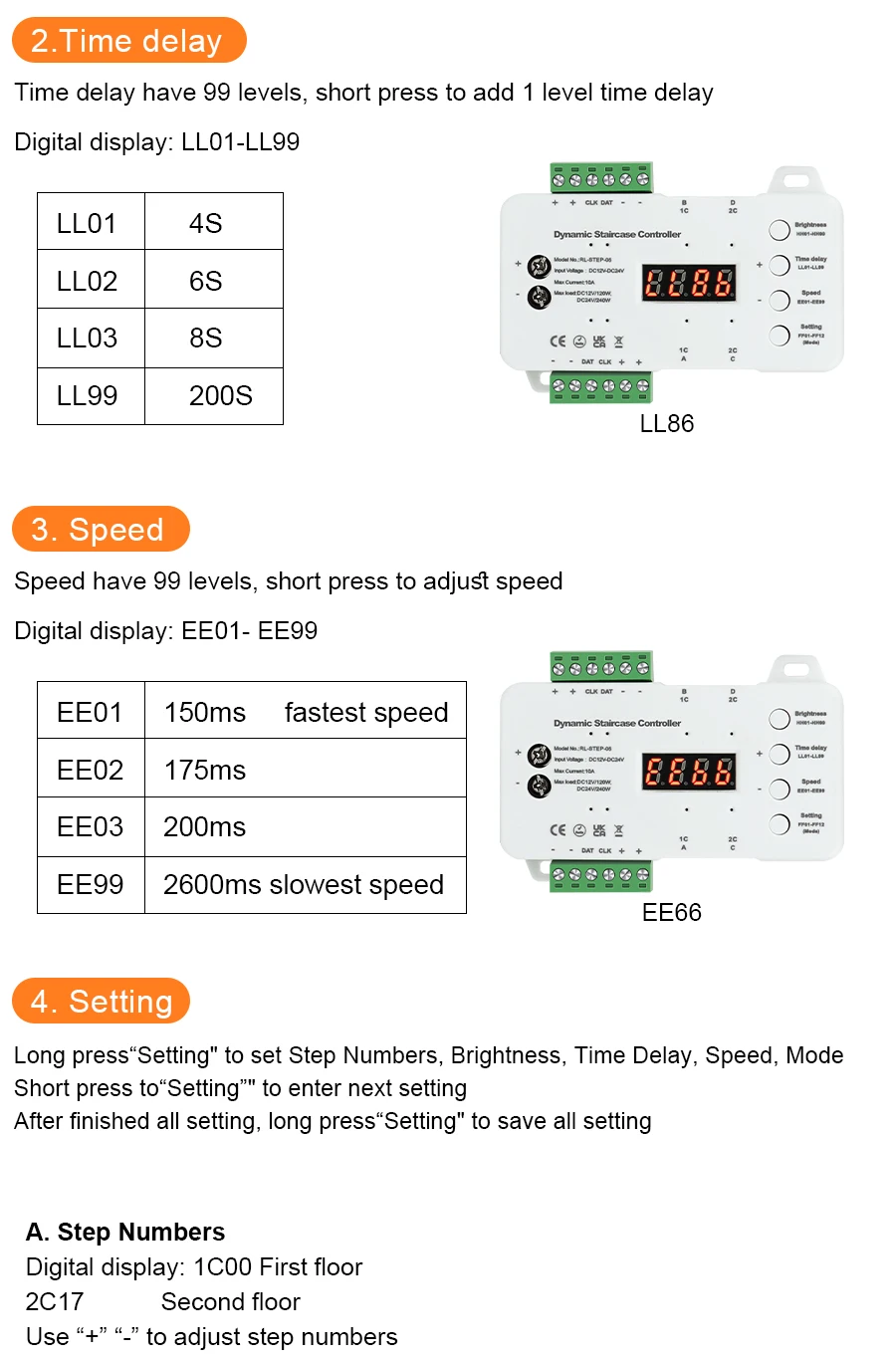

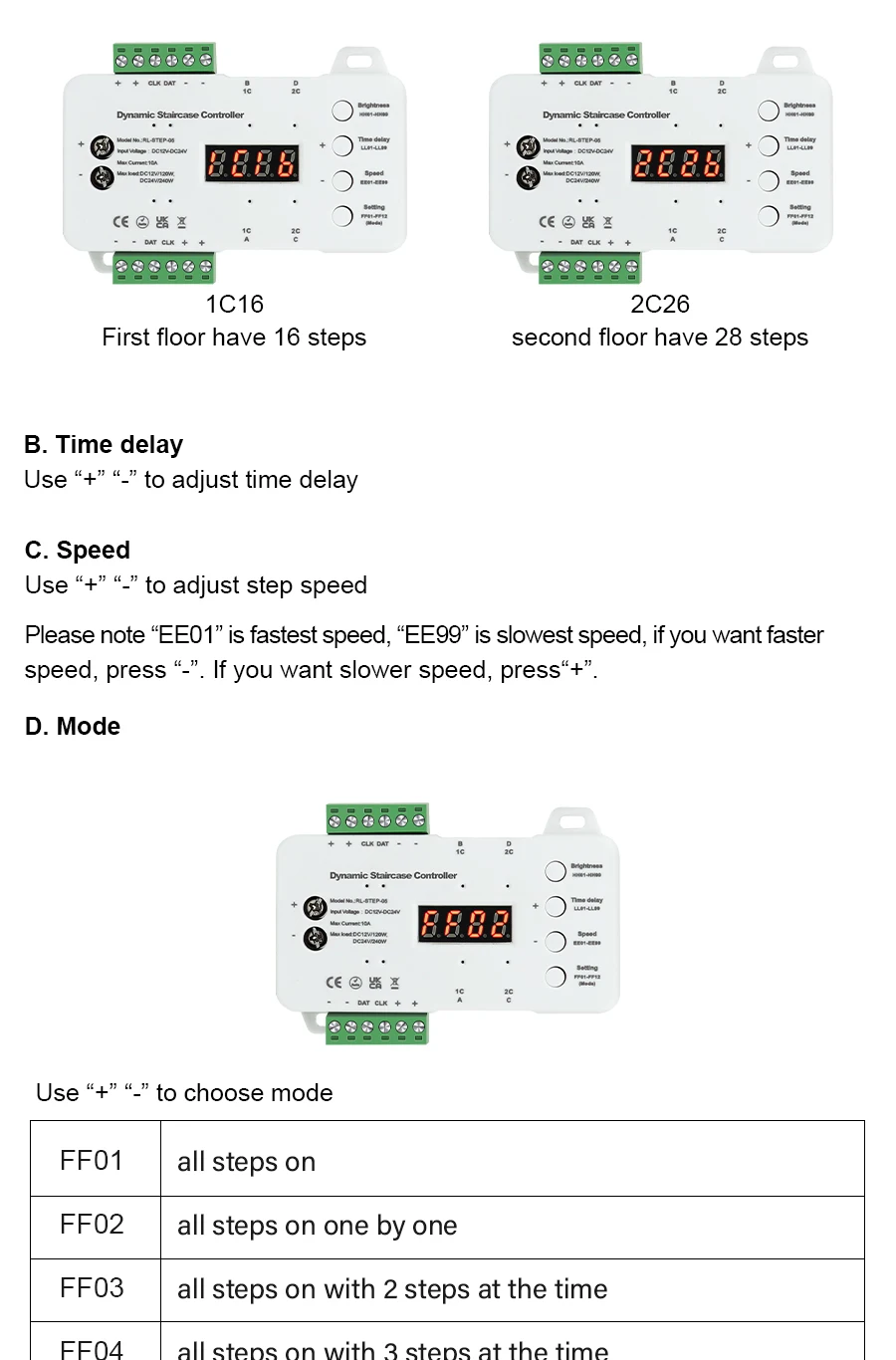

4. Can control the light step by step, can set time and speed of dynamic lighting.
