New Version Flipsky BLDC Belt Motor 6374 140KV 3500W for Electric Skateboard DIY Brushless Sensored Motor Glues Poured

Feature:

• KV: 140 / 190KV

• Max Power: 3500Watts

• Max Current: 85 Amps

• Max Volts: 14S

• Max Torque:8Nm

• Motor Resistance: 0.05Ohm

• Recommend ESC: 3-12S 50A (FSESC4.12 50AorFSESC 6.6 60A)

• The number of pole: 14

• Net weight: 980g

• Motor wire:12AWG

• Wire Configuration

     Blue=U (A)

     Yellow=V (B)

     Green= W (C)

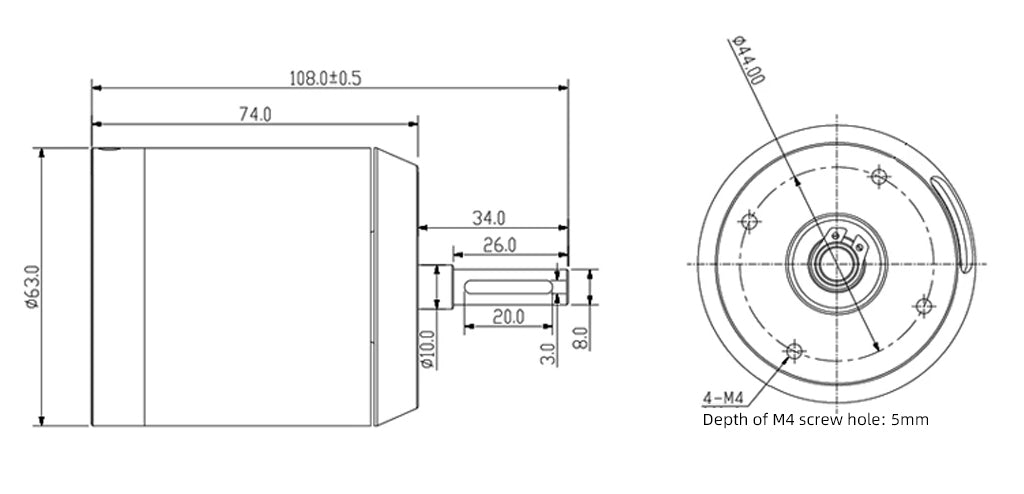

• Shaft Size: 8MM / 10MM


Reference Information:

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.

• Screws to mount the motor are not included with the motor.

• If you choose round shaft motor, shipping includes the key for the keyway

• If you choose the shipping comes with pulley, will come with 8mm steel material pulley.

• The Flipsky logo is in different places, will be shipped randomly.
