NMEA 2000 N2K Backbone Drop Cable IP67 Micro-C M12 A Code 5 Pin Male to Female Extension Cable For Garmin Lowrance Simrad B&G

Technical:

Connector Type: NMEA 2000 N2K Backbone Drop Cable

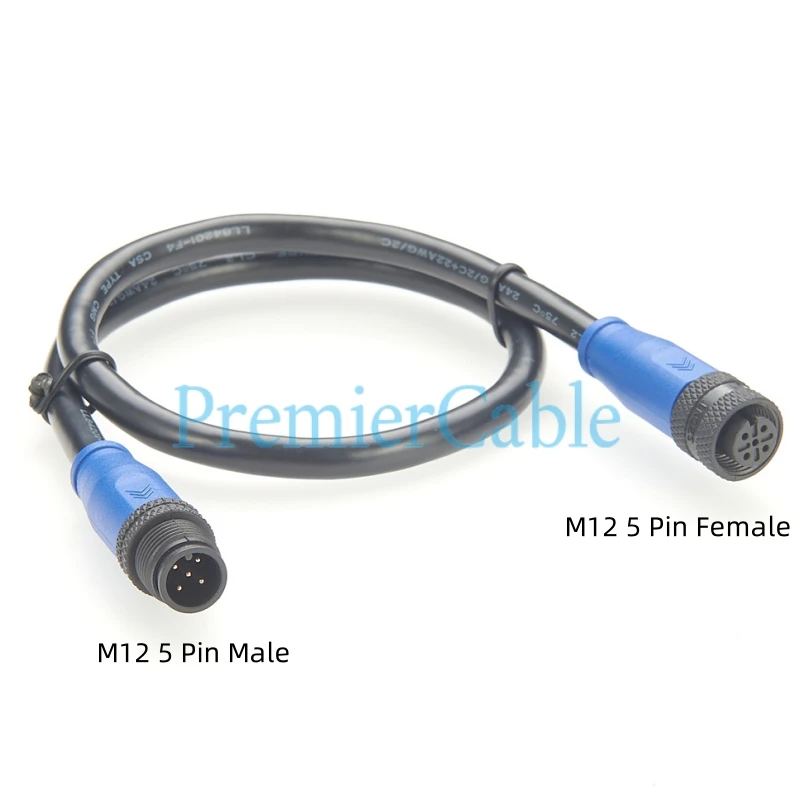

Connector A: M12 A Code Male Connector

Connector B: M12 A Code Female Connector

Length: 0.5M/1M/1.5M/2M/3M/5M Optional

OD: 6.6MM

Wire Gauge: ULCL2(22#*1P+AM)+(24#*1P+AM)+EB

Waterproof level: IP67

Operating temperature: -40°C to 85°C

Material marine-grade, UV-resistant material

Feature:

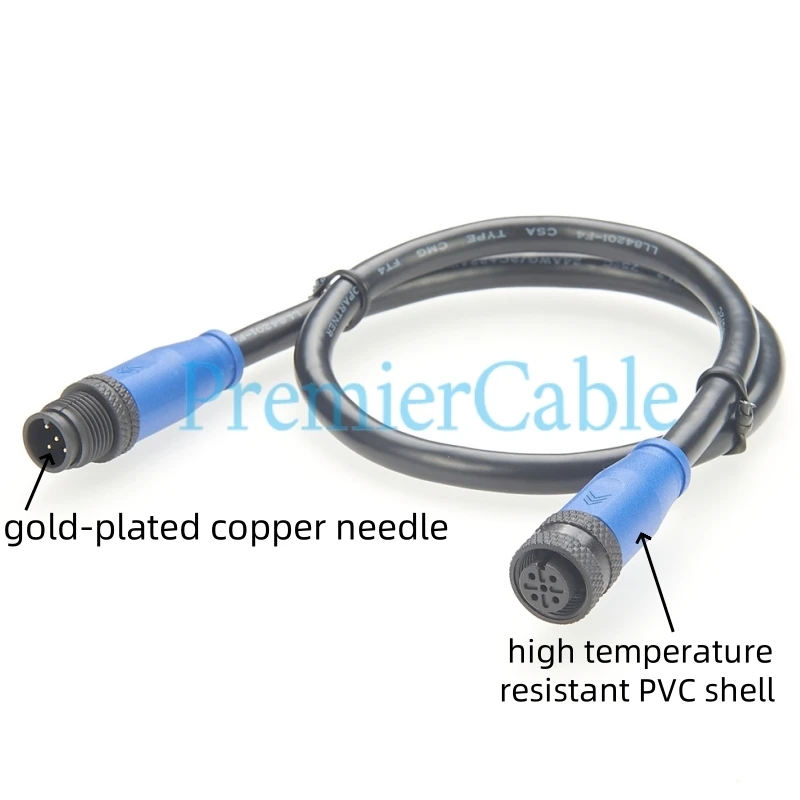

【High Quality】NMEA 2000 Backbone Drop Cable Made of PVC material, with gold-plated contacts,oil resistant,high temperature resistant,seawater-resistant,fire retardant,ensuring durability, corrosion resistance, and anti-rust performance.

【Waterproof & Reliable】Micro-Change Micro-C M12 5Pin,with stable conductivity and IP67 waterproof, ensuring safer and more durable use in harsh marine environments.

【Universal NMEA 2000 Connector Cable】Dive into marine connectivity with our IP67 Micro-C M12 Marine Backbone Cable.The connectors have a keyway anti-drop design to ensure error-free connections,Facilitates two-way communication between main and branch lines,for ship or yacht communication networks.

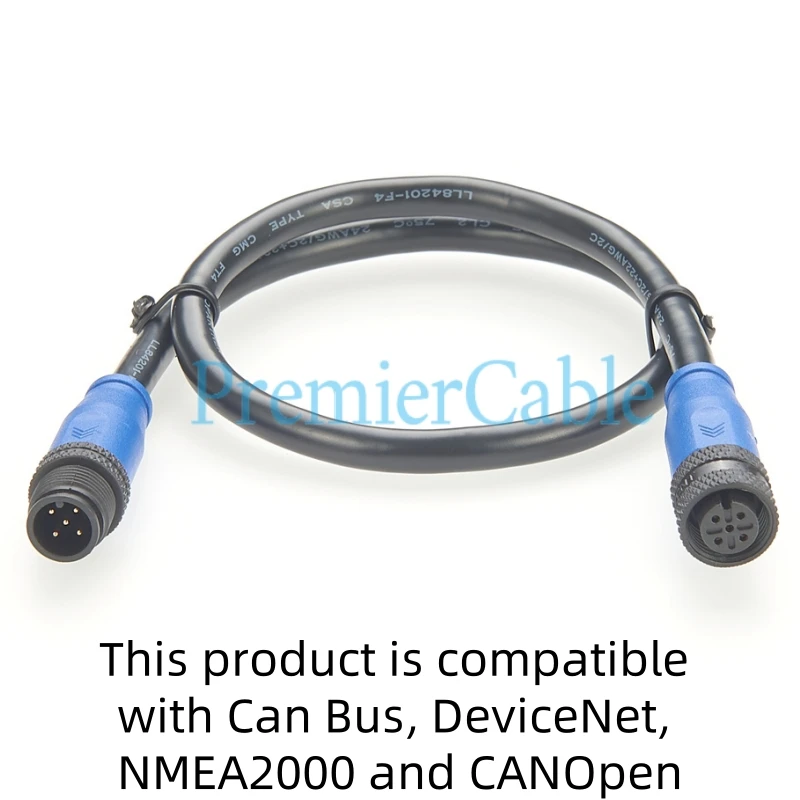

【Wide Compatible】IP67 N2k M12 Male to Female Distributor Cable Compatible with Garmin,Lowrance,Simrad,B&G,Navico Marine Networks,for NMEA 2000,Can Bus,DeviceNet,CANopen,Sensor,Actuator.Also partially compatible with SAE J1939, IO-Link, Modbus CAN, PoCAN, PoM12, but you need to confirm your voltage and PIN definition, and whether this protocol requires gateway conversion. So before purchasing, please confirm whether our products meet your needs!

【Application】N2k Thread NMEA 2000 Drop Cable for Marine electronic equipment, ship navigation, GPS, AIS, radar, fish finder, wind speed sensor, autopilot, diesel engine, heavy truck, industrial automation, robot.

【Custom Cable】We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

If you need a longer length, we also have 10m and other lengths for you to choose from.

Various Types

+

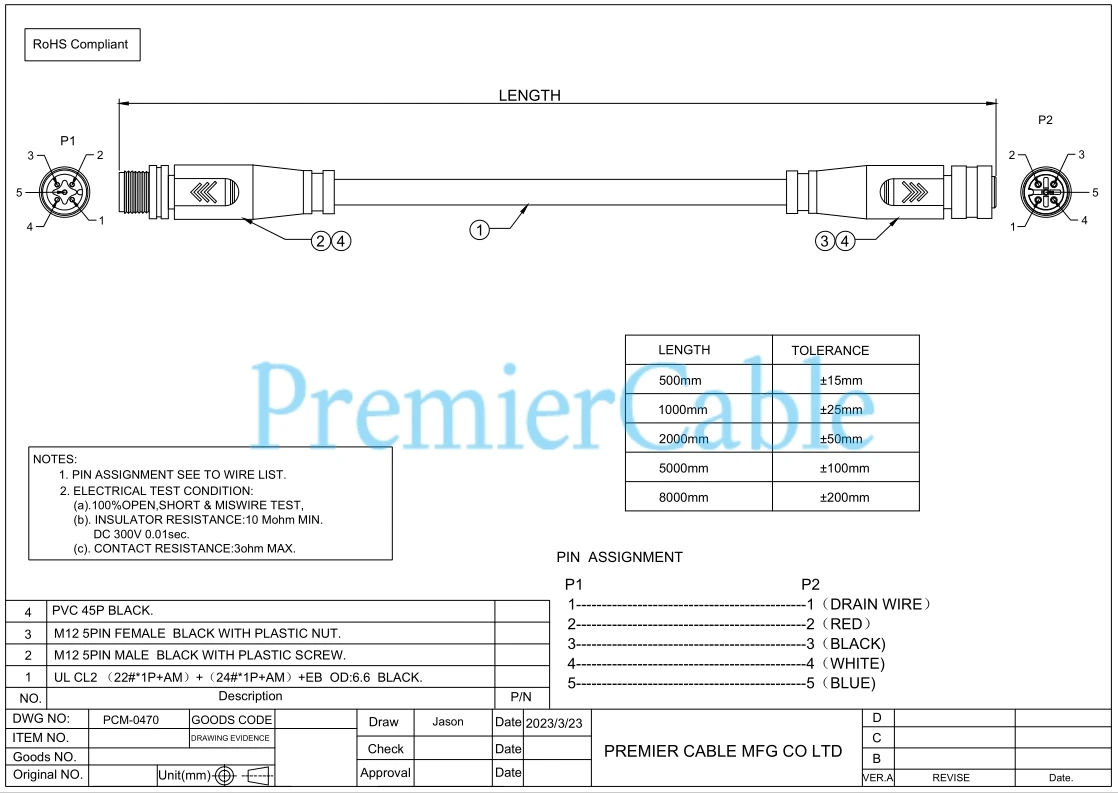

Drawing:
