OBDSTAR P003 Kit working with OBDSTAR IMMO series tablets (eg:OBDSTAR X300DP Plus, X300 Pro4 ), is designed for reading BOSCH ECU data, CS, Pincode ect., including for Audi, for Citroen, for DS, for Mahindra, for Peugeot, for Skoda, for SEAT, for Volkswagen etc.. More models are in development.

OBDSTAR P003 Kit Highlights:

1.Portable Design

2.Easy Operation

3.High Performance

Functions:
1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. For Bosch MED17.4.4 reading eeprom , PinCode
3. For Bosch EDC17C60 reading eeprom , PinCode
4. For Bosch MD1CS018 reading eeprom, PinCode
5. For Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. For Bosch ME17XX reading & writing eeprom, flash

OBDSTAR P003 Kit Supported ECU list:
Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

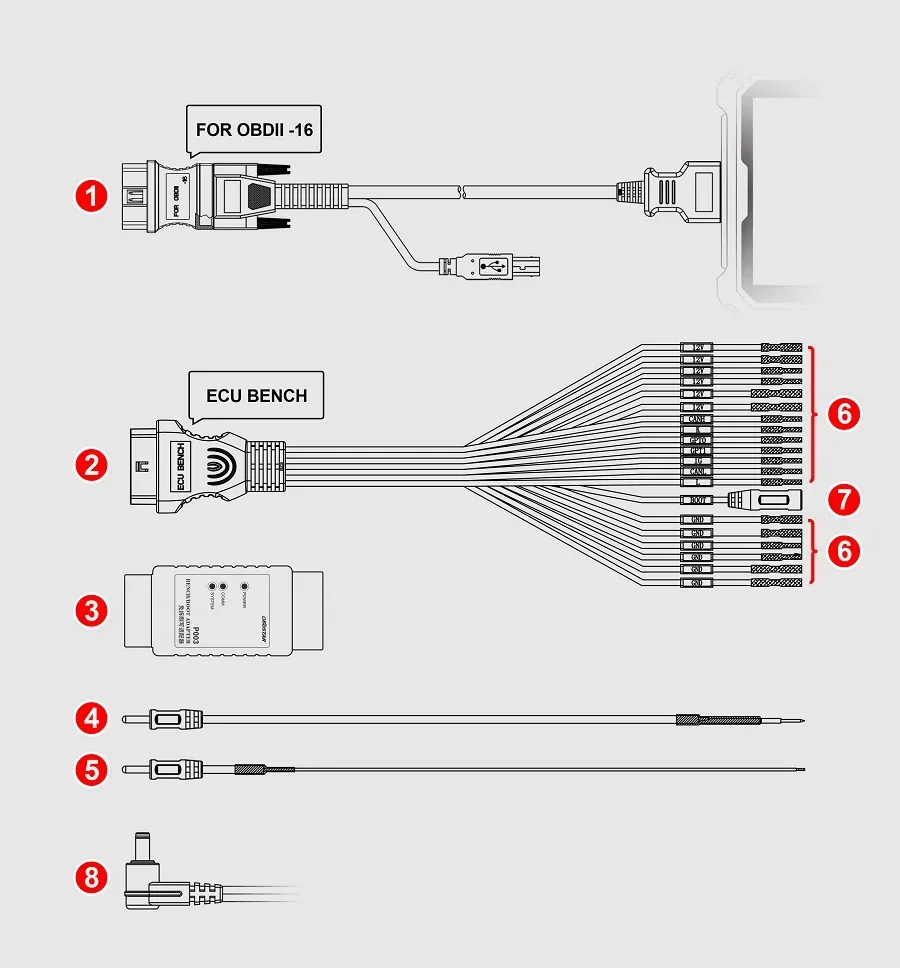

OBDSTAR P003 Kit Overview:
1.Diag cable OBDconnector(male)
2.Connect P003 connector(female)
3. P003 adapter
4.Boot jumper(spring needle)
5.Boot jumper(welding)
6.ECU pin connector
7. ECU boot connector
8.12V power



Connecting Methods:

BENCH MODE

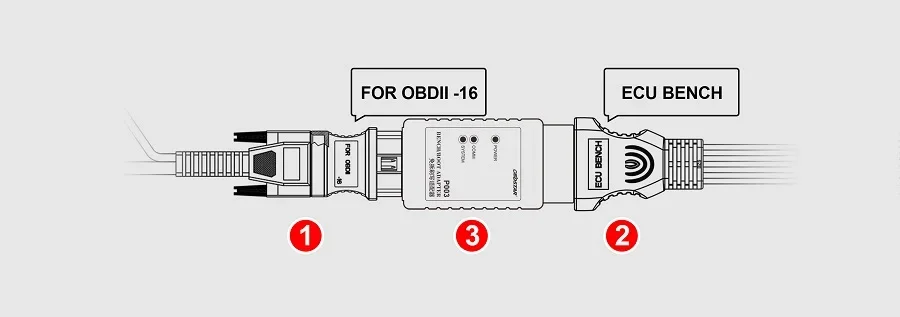

Step 1:Connect 1,2,3 together as pic below;

Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 12V power with diagnostic device;
Step4: read data on diagnostic device.

BOOT MODE
Step 1: Connect 1, 2, 3 together as pic below;

Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 7 with 4 or 5 and connect it to ECU;
Step4:connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

Specifcations:

OBDSTAR P003 KIT Package:

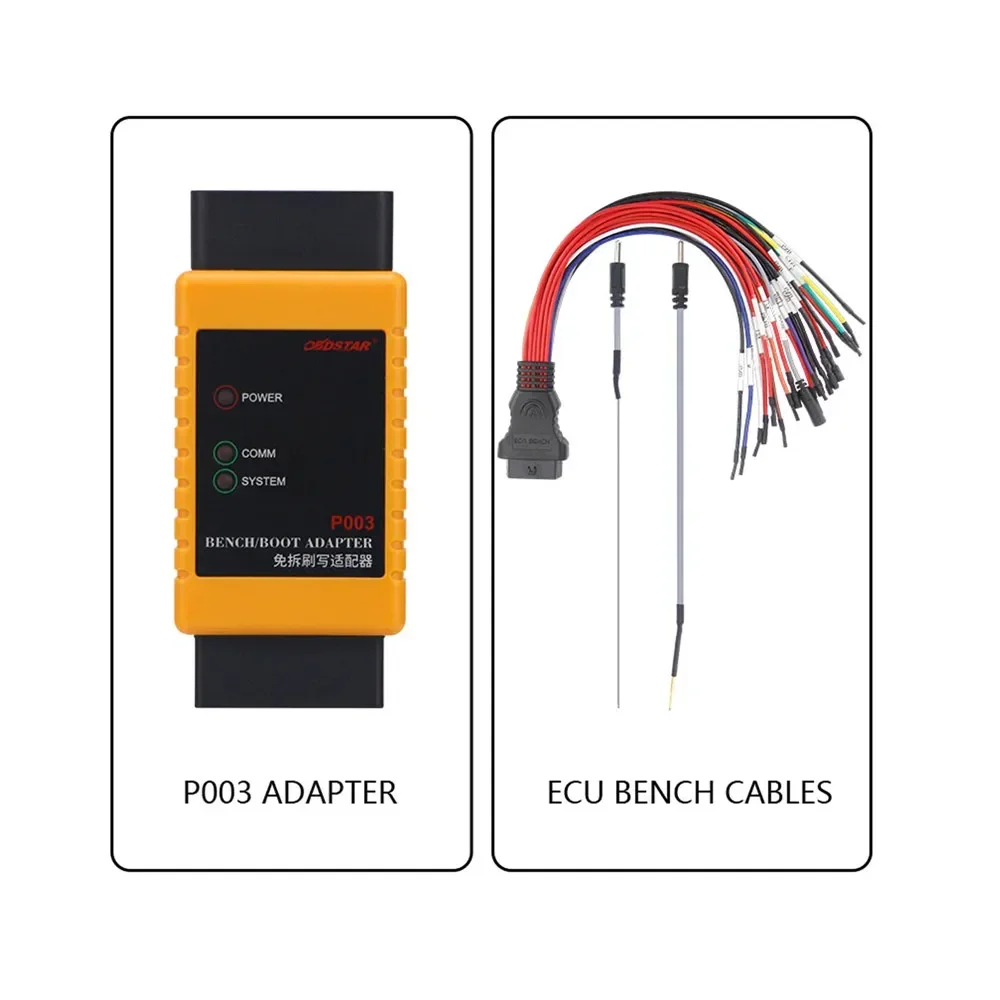

1. P003 adapter

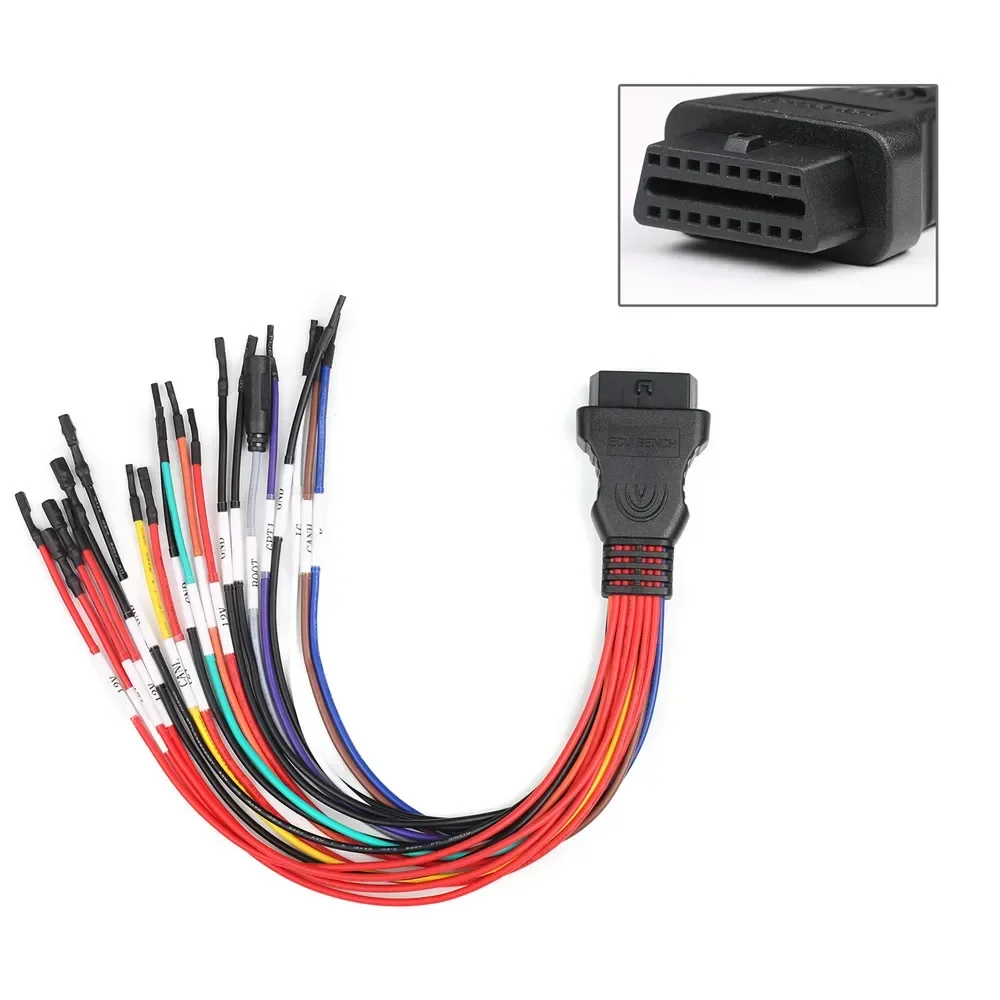

2. ECU BENCH cables
