Features: Device insertion loss <0.01dB is minimal
Interface: Male and female head with wire type RCA
Impedance: 75 ohms (input-output)
Styles: PAL, NTSC, SECAM
Input level: 1VP-P, mixed
Format: CCIR601 4:2:2
Standard rate: 13.5MHz
Chromatic aberration: less than 1% of all patterns
Resize: Multi-element horizontal and vertical limited pulse responses
Simulation process
Bandwidth: 10 MHZ to 20 MHZ
Phase difference: less than 2 degrees
Gain difference: less than 2%
Spacing of mounting holes: 73mm
Installation diameter: 3mm Working temperature: -25 to +70C
Relative humidity :90%(non-condensation)
Structure: VNB-GliB00MF /MS, VNB-Gli00MF /MS PVC shell
Color: Black
Size: 63 mm x 36 mm x 21 mm

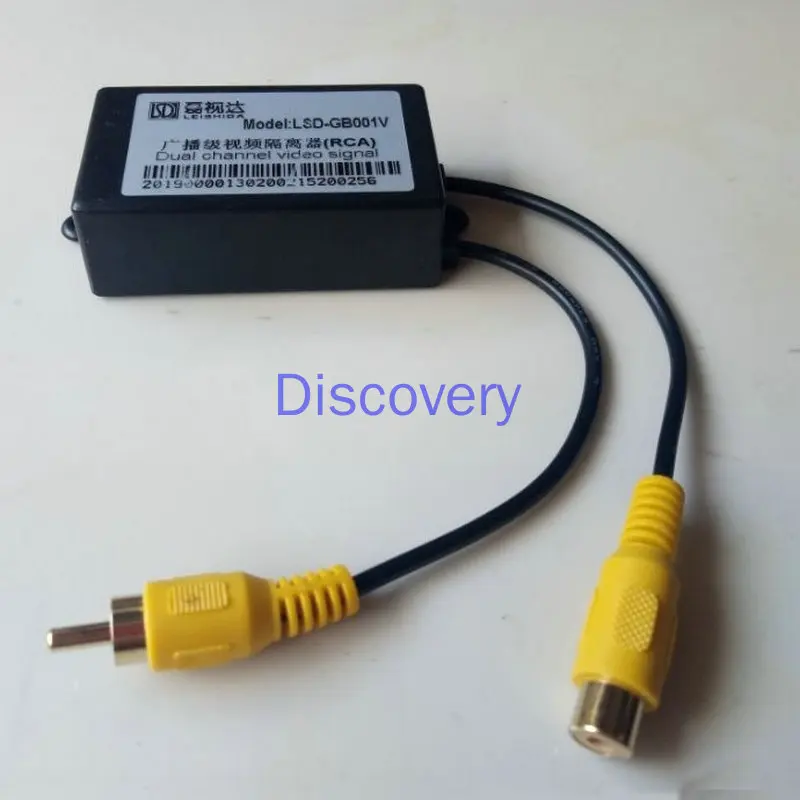

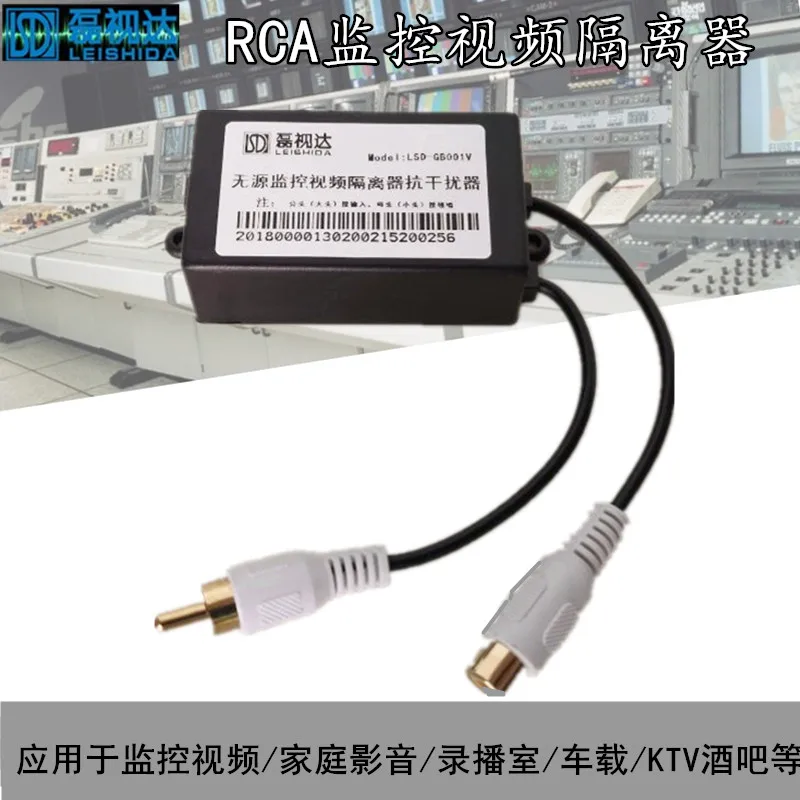

Product Overview:
Ground loop video isolator, also known as ground loop audio-video isolator, is mainly used to eliminate interference to CCTV video (or audio) signals caused by ground loop voltage. Ground loop/ground loop interference (GEI) is an electronic interference phenomenon caused by the different potential between the two ends of a video cable. The interference of ac current loop caused by different video signal reference ground potential is mainly found in the shielding layer of the video cable and the shell of the video equipment.
Under normal circumstances, the voltage of the shielding layer is 0V, and when the local loop/ground loop phenomenon exists, the level will fluctuate around 0V, and more seriously, the video signal will be seriously distorted and torn, accompanied by interference phenomena such as horizontal stria-reticule-snowflake. When the transmission distance of video signal is more than 100 meters, it is easy to generate high ground loop voltage. If the ground loop voltage is too high, the equipment may even be burned down.
Single-channel video isolated circuit anti-interference device, the device can calmly deal with the balance of input and output need isolation balance audio or video signals, and internal also integrated common-mode interference filter, filter is used to eliminate the interference signals from transmission cables, non equilibrium after conversion signal can be directly connected to the unbalanced input terminal of the audio and video.
It is often used in surveillance video, home video, computer room, video recording room, car reversing image, KTV, bar, car video and audio and other image interference caused by common interference, such as stripe, snowflake noise, horizontal grain, image shake, net grain, image tear and a series of common interference.
Product Features:
Ground ring isolation voltage: the ground ring interference voltage up to 10VP-P can be eliminated. When it exceeds 10VP-P, more than one device may be needed.
