Description:

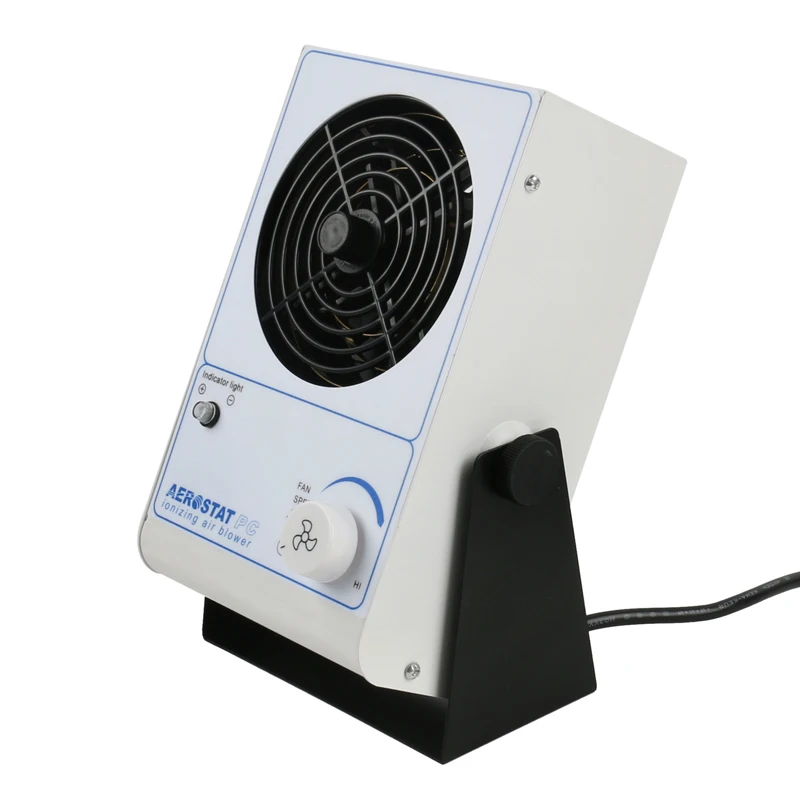

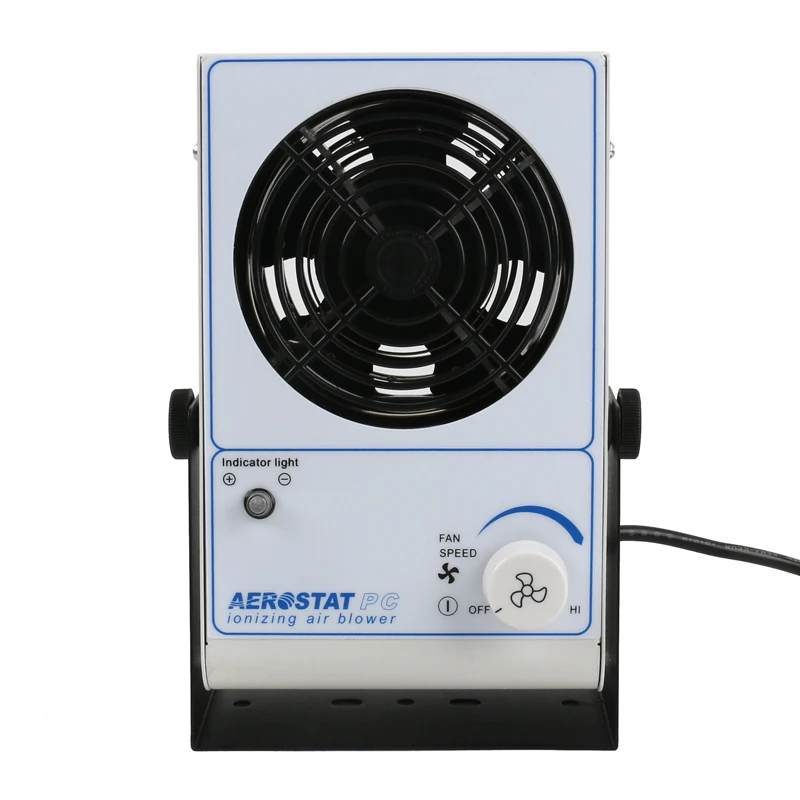

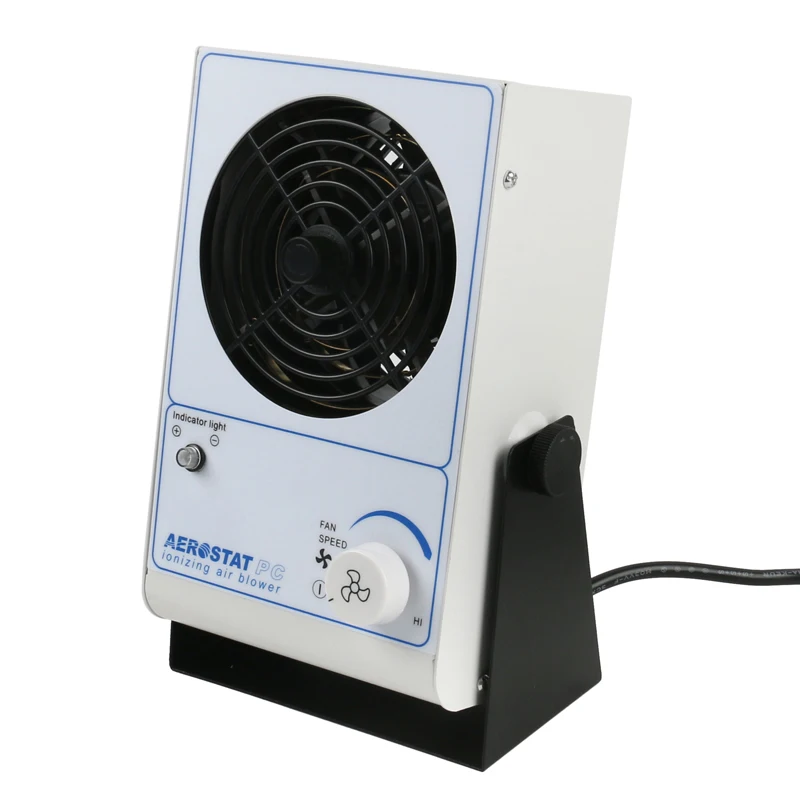

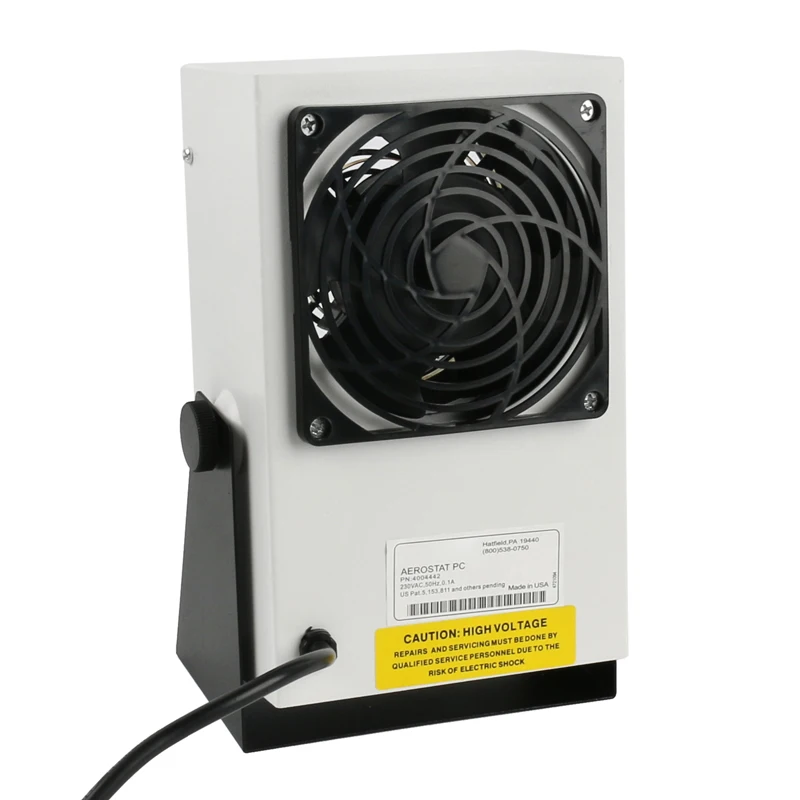

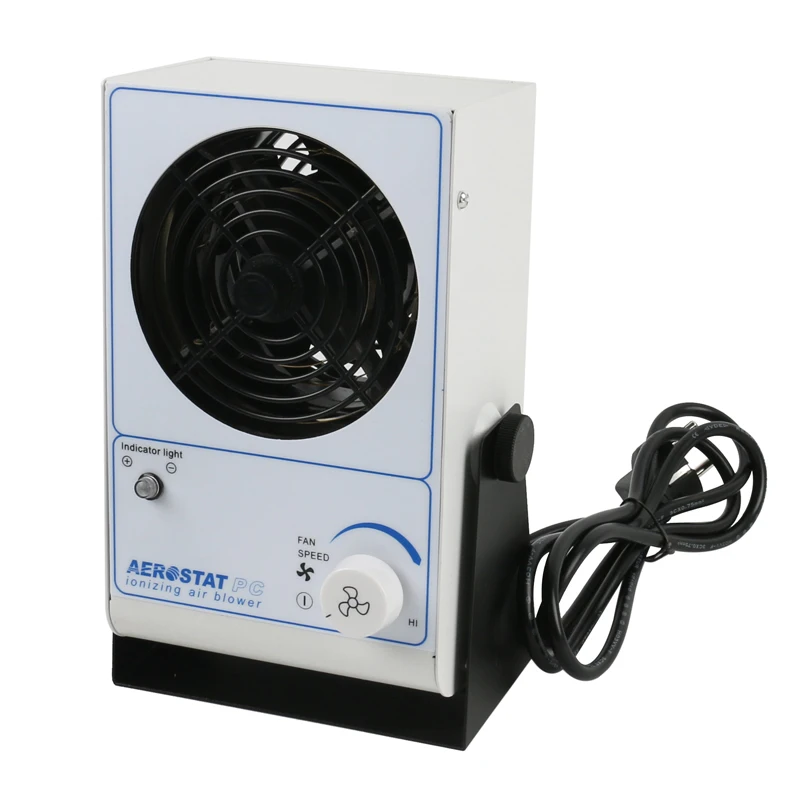

Simco Aerostat PC Ionizing Air Blower provides localized coverage with superior charge decay
efficiency. The Aerostat PC operates on AC technology and is designed to provide ionization to a targeted
work surface.
Distinguished by its variable fan speed control, heater element, and emitter point cleaner, the Aerostat
PC is an excellent choice for eliminating static in production processes. While helping to protect products
and personnel from the effects of static discharge, the Aerostat PC is lightweight, small, and quiet –
making it easy for the user to direct the ionization where it is needed.
Features
Discharge time of 1.5 seconds at 1 foot*
Lightweight, compact and quiet for unobtrusive use
Built-in emitter point cleaner
Variable speed fan for airflow control
Status lamp indicates high voltage is present at the emitter points
Benefits:
Fast, targeted neutralization of static charges
Directed ionization designed for workbench area
Minimizes the time required to perform normal maintenance
Matches ionization performance to targeted work area
Minimizes component loss due to unintentional ionization stoppage
User comfort helps to insure that ionization remains on
Applications
The Aerostat PC was designed for use with sensitive electronic
components, where electrostatic charge is a problem. The Aerostat
PC can also be used where static electricity causes problems such
as attraction of dirt to product, misalignment of small parts due to
electrostatic "jumping" and undesirable adhesion of plastic films due
to electrostatic charge.
Specifications:
Input Voltage:220 VAC, 50 Hz: 0.9A (fan high, heater on); 0.05A (fan low, heater off)
Balance:±10V @ 1'
Discharge:1.5 sec @ 1'; fan high (1000-100V)1
Ion Emission:AC Ionization
Emitter Points:Stainless Steel
Coverage:1' x 5' area
Controls:Heater On/Off switch; Blower On/Fan Speed Control
Indicators:Ionization Status, orange LED
Airflow:35-70 CFM
Heated Air Temp:Fan low 25°F (14°C) above ambient; fan high 11°F (6°C) above ambient
Audible Noise:Fan speed low 50 dB; fan speed high 57 dB (2' from unit)
Air Velocity2:Fan Speed: 1' 2' 3' 4' Low: 250 200 150 125 High: 500 400 300 250
Operating Env:Temperature 32-122°F (0-50°C); humidity 30-70% RH, non-condensing

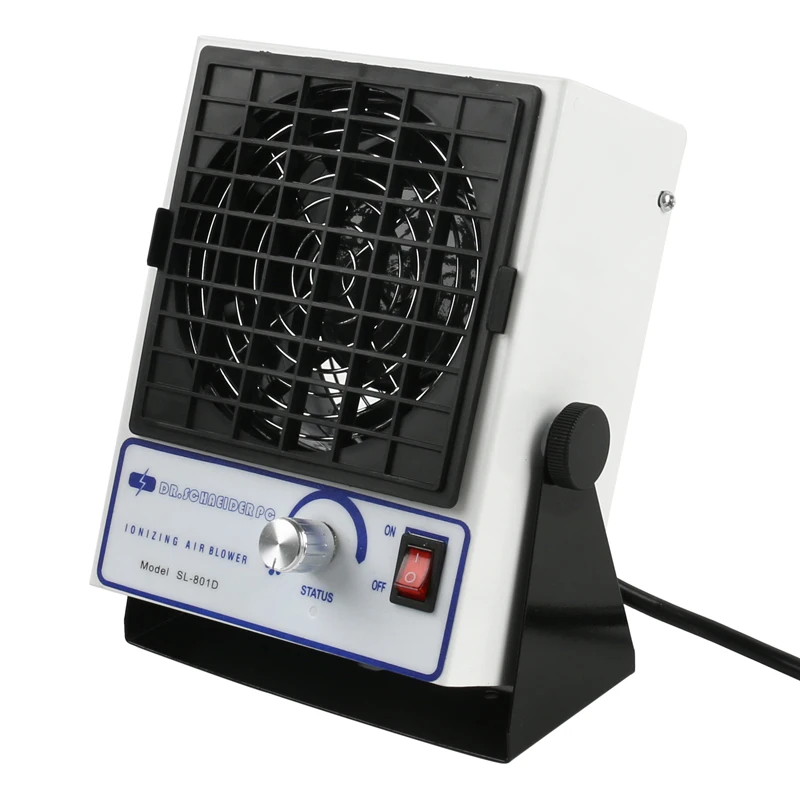

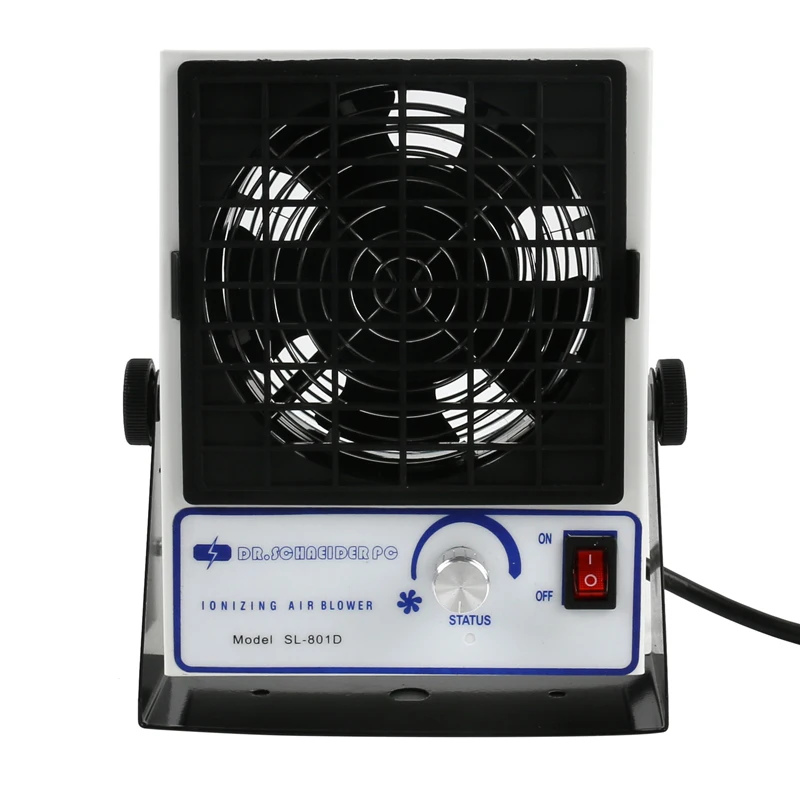

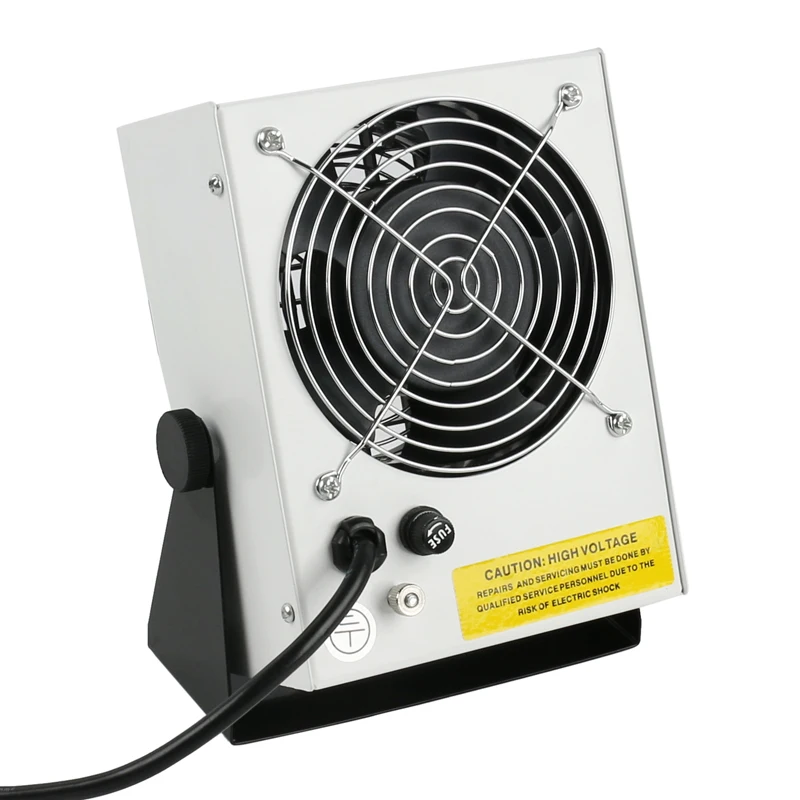

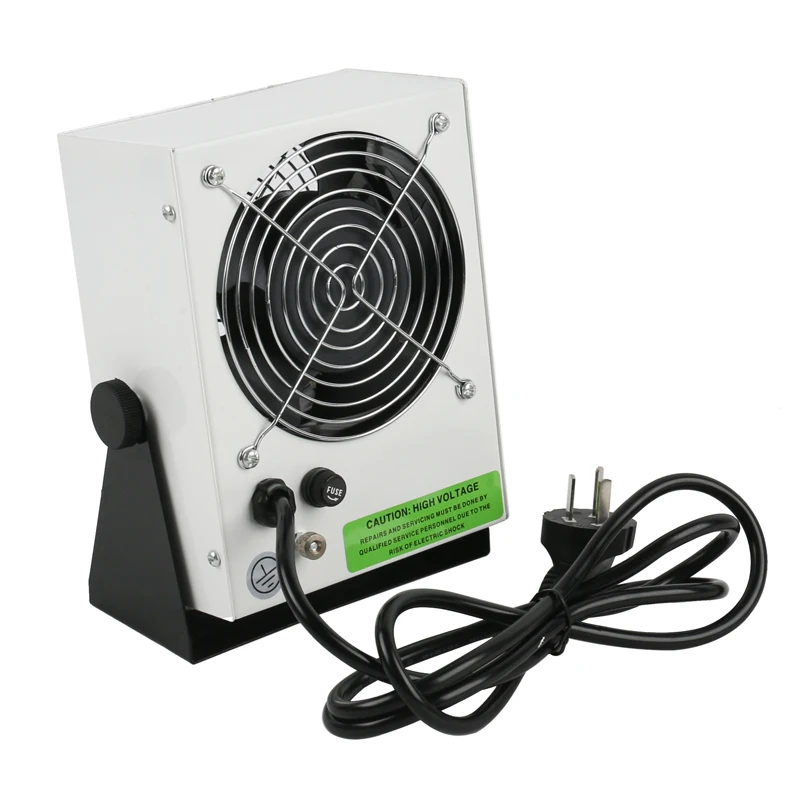

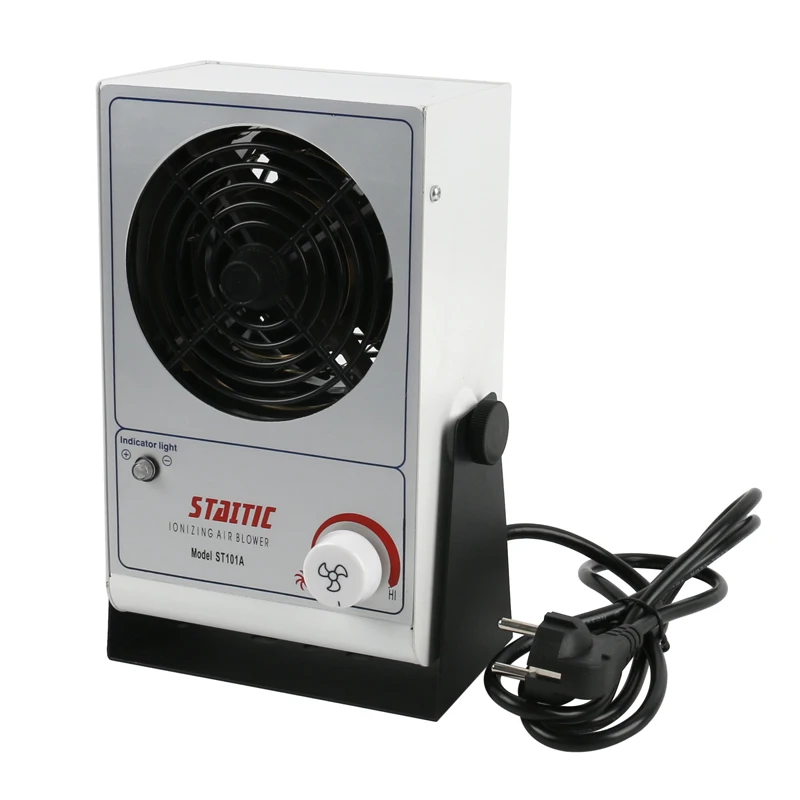

DC Ionizing Air Blower
1.Easy maintenance for ion emitter
2.It can be destop or overhead
3.Rapid neutralized static charges
Performance:
1. DC Ionizing. Small, quite and light weight, yet uncompromising in performance.
2. provides superior static charge decay rates over a targeted work surface area.
3. Can install in small area.
4. Ion Balance ≤± 20V
Specifications:
Portable ,light ,low noise ,warning Function:it buzzes when ion balance is hight than ±25V.The ion balance can be preset according to customer request.
Suitable for electronic components assembly line,high precision parts production line or static elimination of component vibrator,ect.
Product
Input voltage:110V/60Hz,220V/50Hz
Current consumption:0.08A/0.04A
Operating Temperature:0°C~50°C
Air Volume:100~170 CFM
Size:108(L)*95(W)*200(H)mm
Limited power:≤15W
Lon balance:≤±5V
