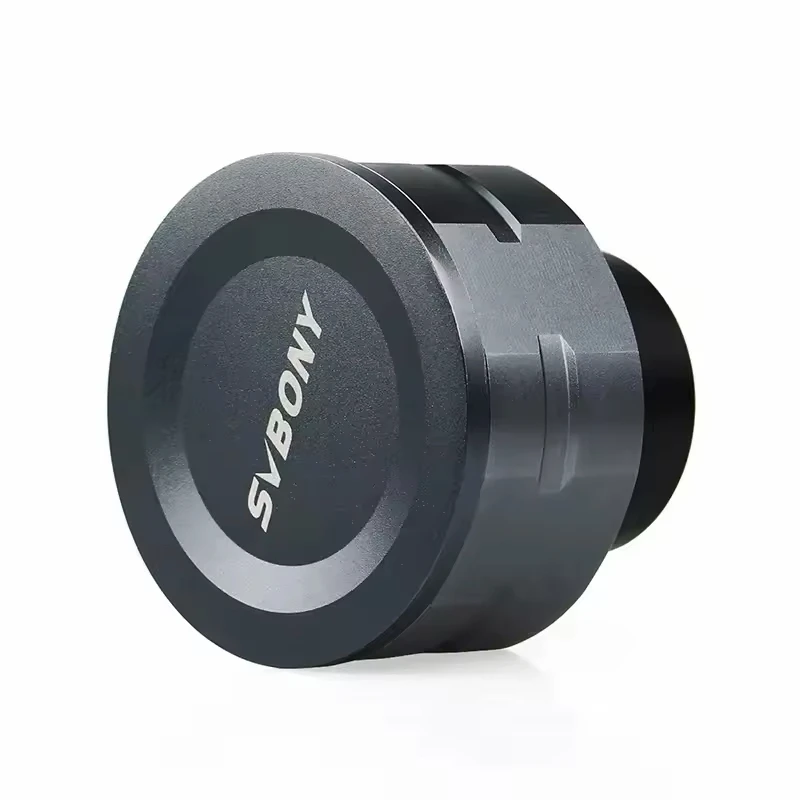

SVBONY Astronomy Planetary Camera 1.25'' CMOS Telescope Camera Digital Eyepiece USB 2.0 for Planetary Photography SV105

Svbony SV105 Astronomy Planetary Camera review

https://vk.com/@dmitriy94vk-astronomicheskaya-kamera-svbony-sv105
cr:Dmitry Schikochikhin

https://www.youtube.com/c/AstroNOTE/videos

Features:

1. Plug and play, don't need install svbony driver. real-time dynamic observation by crystal clear image.
2. The image processor uses dark light compensation technology to greatly improve the camera's image clarity in low light conditions.
3. In MJPG video format, You can record video quickly and the frame rate up to 30FPS at 2K resolution 1920x1080; if you want high quality image, please choose YUY2 uncompressed video format
4. Fun and useful USB eyepiece camera allows you to transmit the real-time view through your telescope to a laptop or PC, and capture great digital movies and images
5. Share the view of bright planets, the Moon, and terrestrial targets through your telescope with friends, family, and fellow astronomy enthusiasts
6. An affordable introduction to the rewarding hobby of astrophotography. Great for lunar and planetary shots - not suitable for deep space imaging
7. Machined aluminum 1.25" camera nose for direct threaded connection to almost any telescope

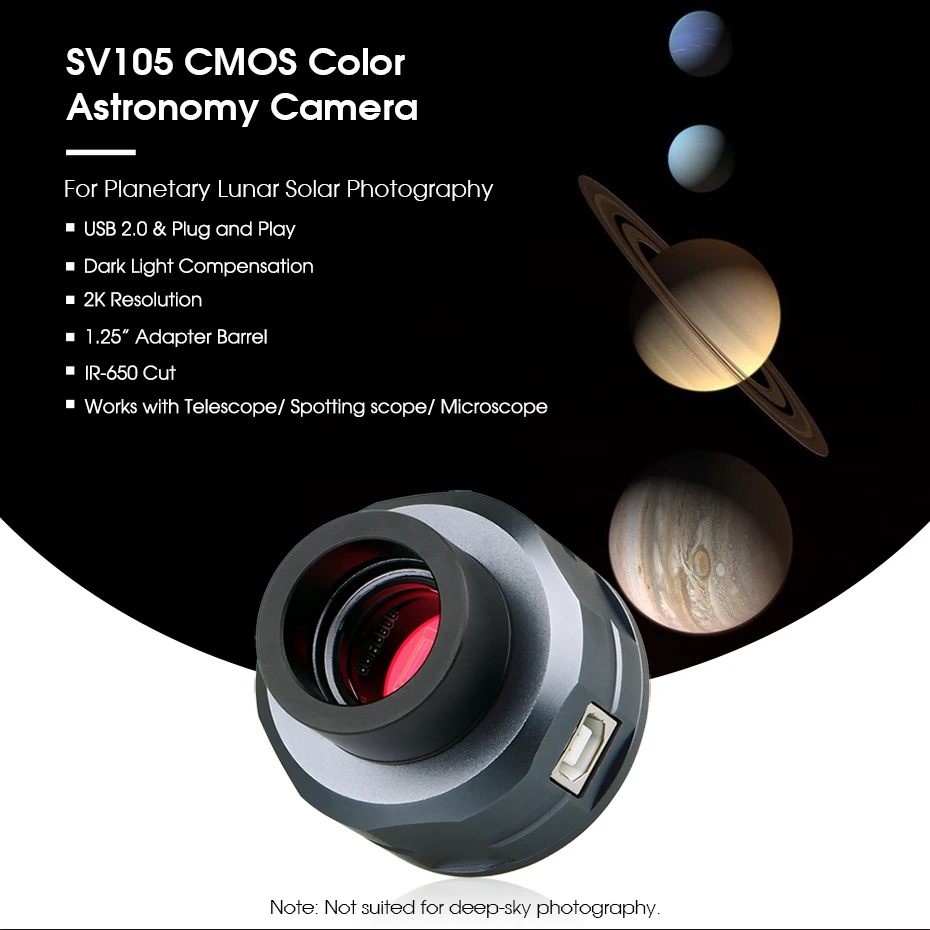

SV105 CMOS Color Astronomy Camer

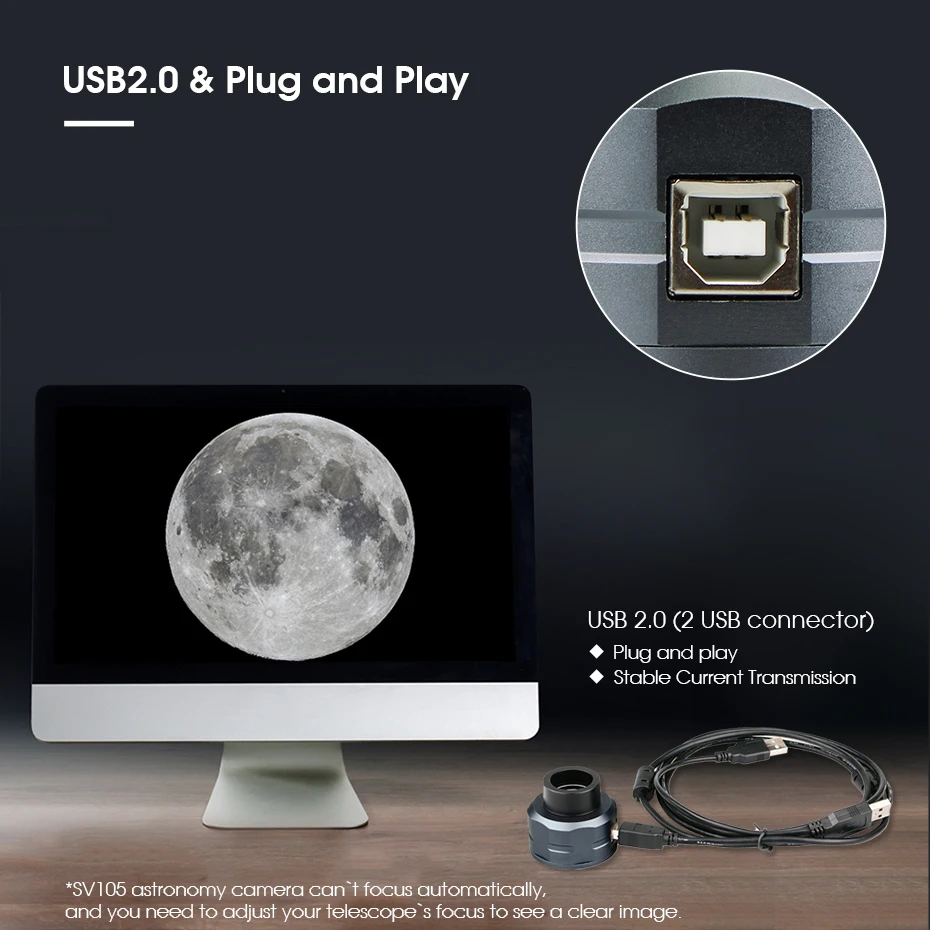

USB 2.0 & Plug and Play
Dark Light Compensation
2K Resolution
1.25” Adapter Barrel
IR-650 Cut
Works with Telescope/ Spotting scope/ Microscope

The SV105 CMOS color camera is a popular choice for beginners due to its affordable price and solar system photography capabilities. It supports real-time dynamic observation and crystal clear image.

SV105 works well with telescope focal lengths in 400mm to 800mm range so using a refractor telescope with this focal length should allow seeing a clear image without any accessories.

Shorter focal length telescopes and or low-quality telescopes are not recommended for use with the SV105.

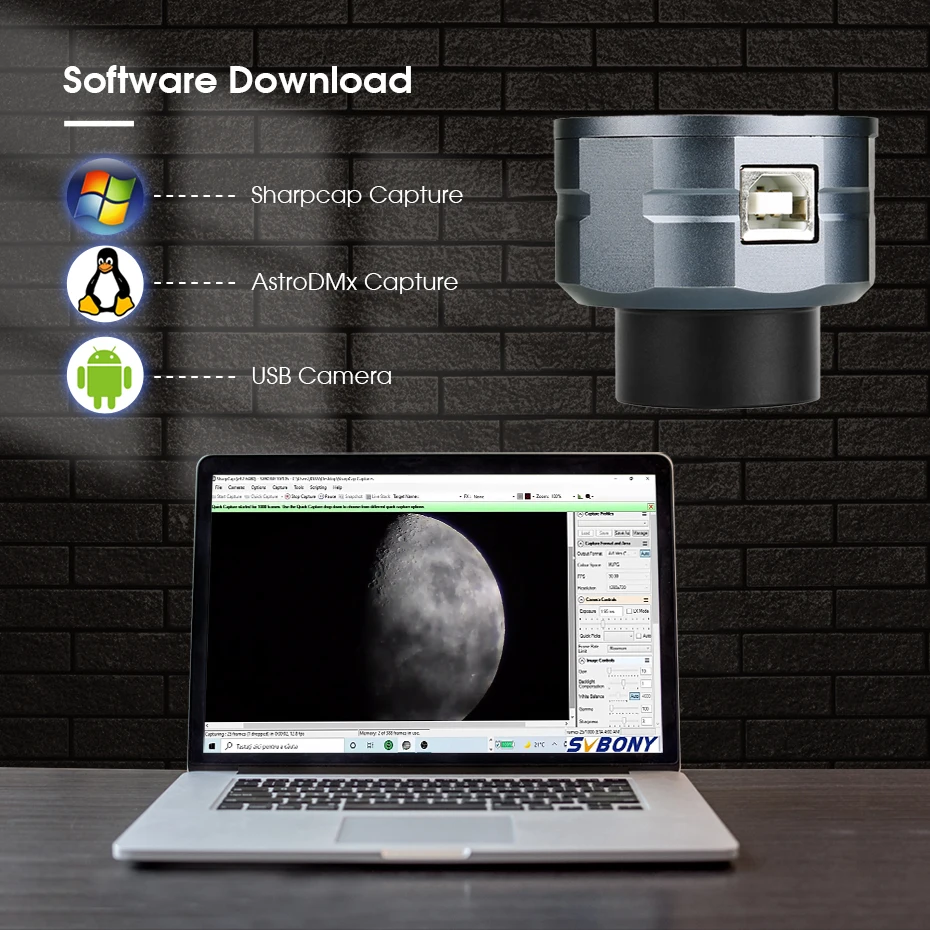

Software Download

Download Sharpcap Capture for windows system;
Download AstroDMx Capture for Linux system;
Download USB Camera for Android system;
Supported OS: Windows7, 8.1,10. Linux, Mac OS, Android

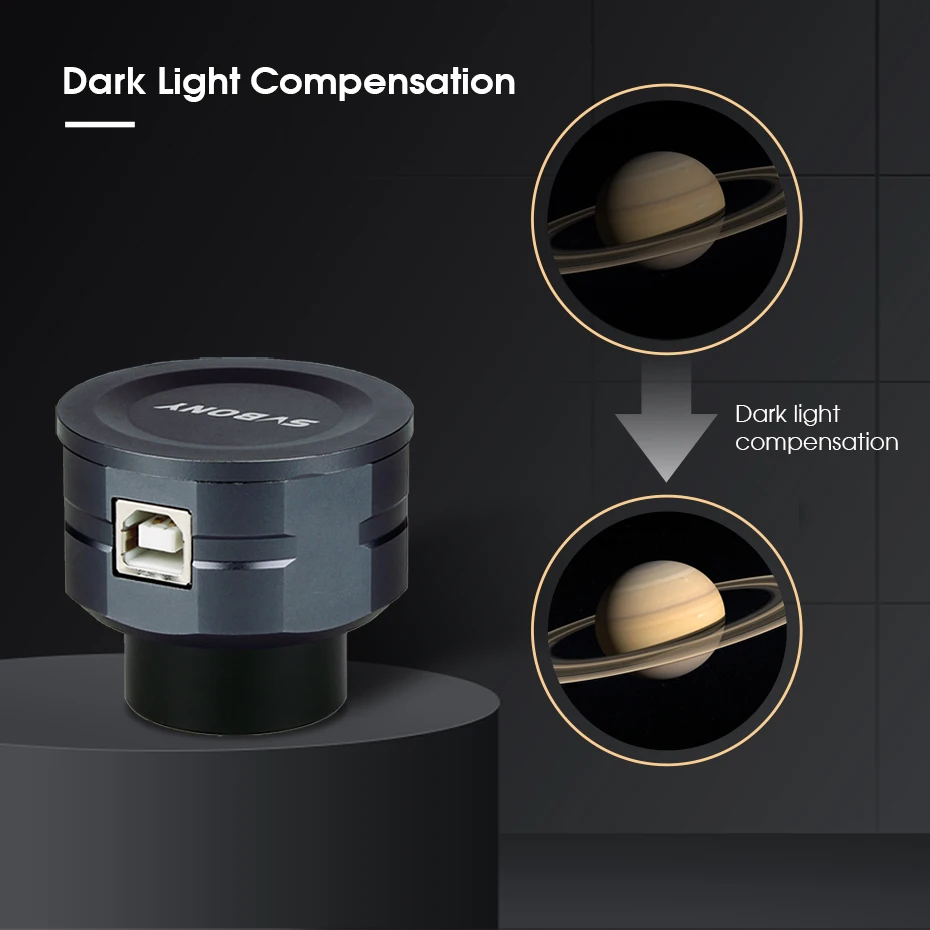

Dark Light Compensation

The image processor uses dark light compensation technology to greatly improve the telescope camera's image clarity in low light conditions.

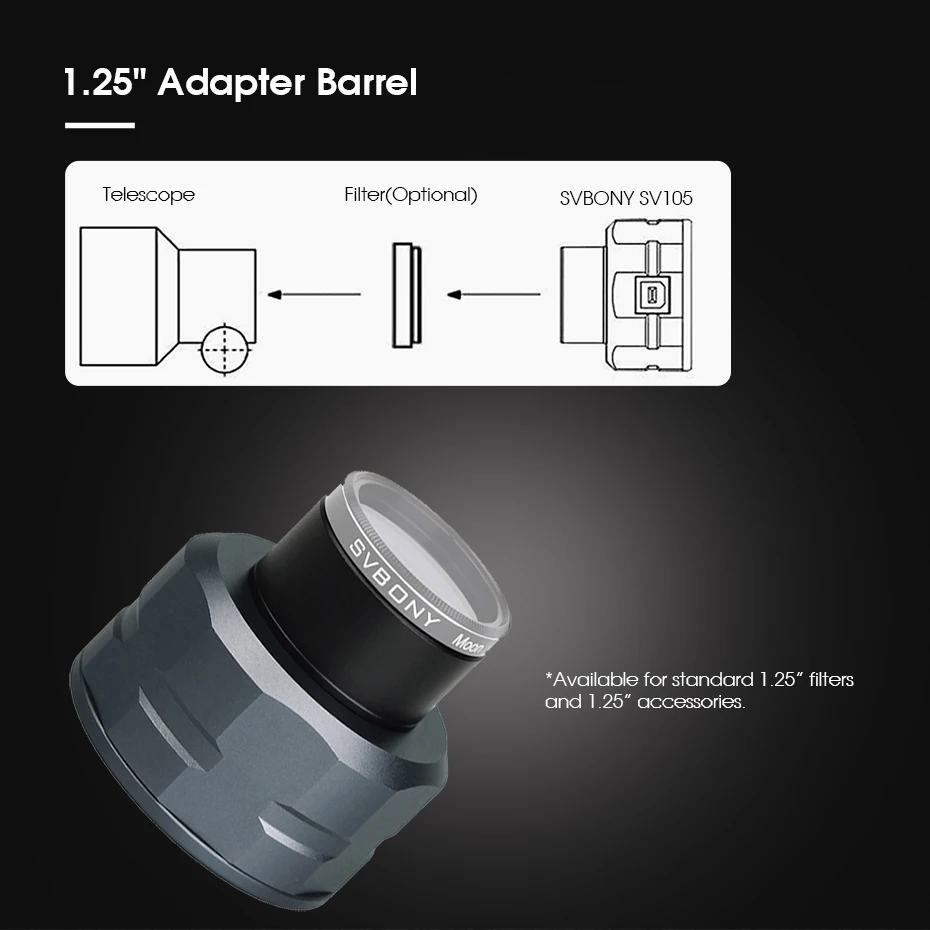

1.25" Adapter Barrel

The 1.25" Adapter Barrel is available for standard 1.25” filters and other 1.25” accessories. SV105 camera just replaces the eyepiece, for electronically enhanced viewing, or astrophotography. It would NOT work with most finder scopes that do not have a removeable eyepiece, or one that has an eyepiece smaller than 1.25".

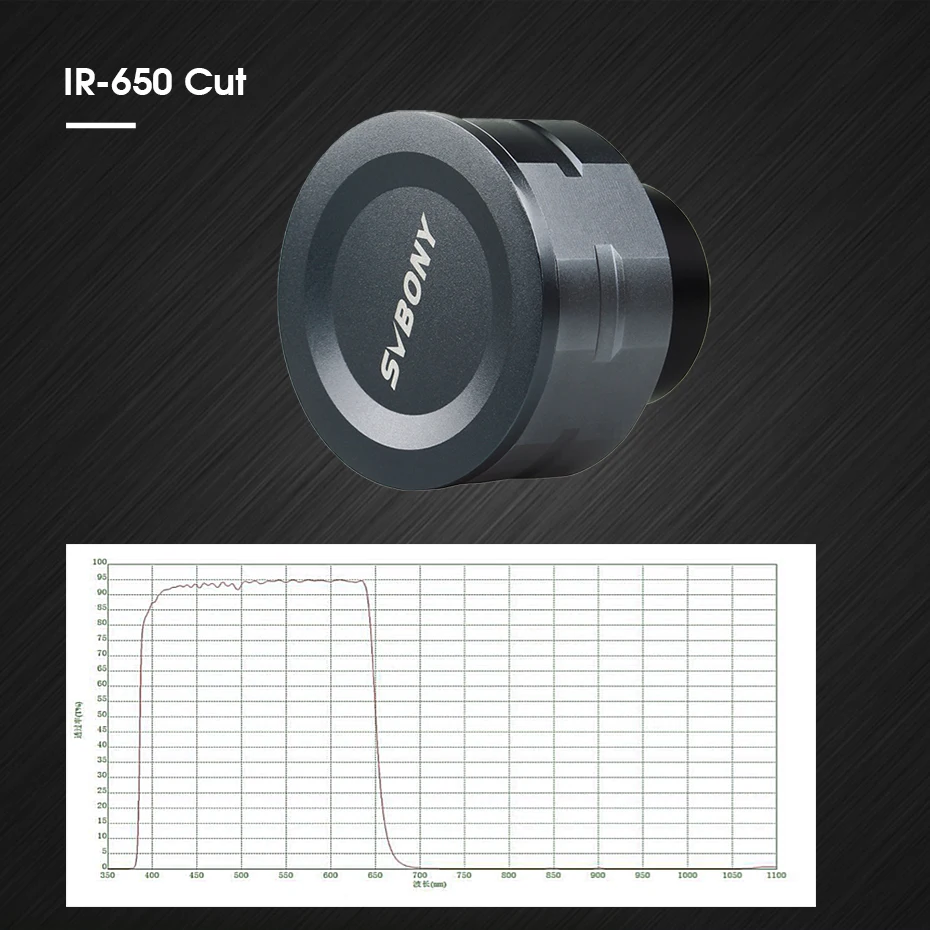

IR-650 Cut

The IR650 filter, high transmittance of visible light, infrared transmittance low. The human eye cannot detect the infrared part of filter, and can adjust the scenery within react to the color of the image rendering color to achieve the best visual effect, greatly improve the image quality.

High Quality

Working Temperature: -0°C~45°C (0°F ~ 122°F)
Storage Temperature: -10°C~60°C (-4°F ~ 140°F)
Working Relative Humidity: 30%~80%
Storage Relative Humidity: 20%~90%

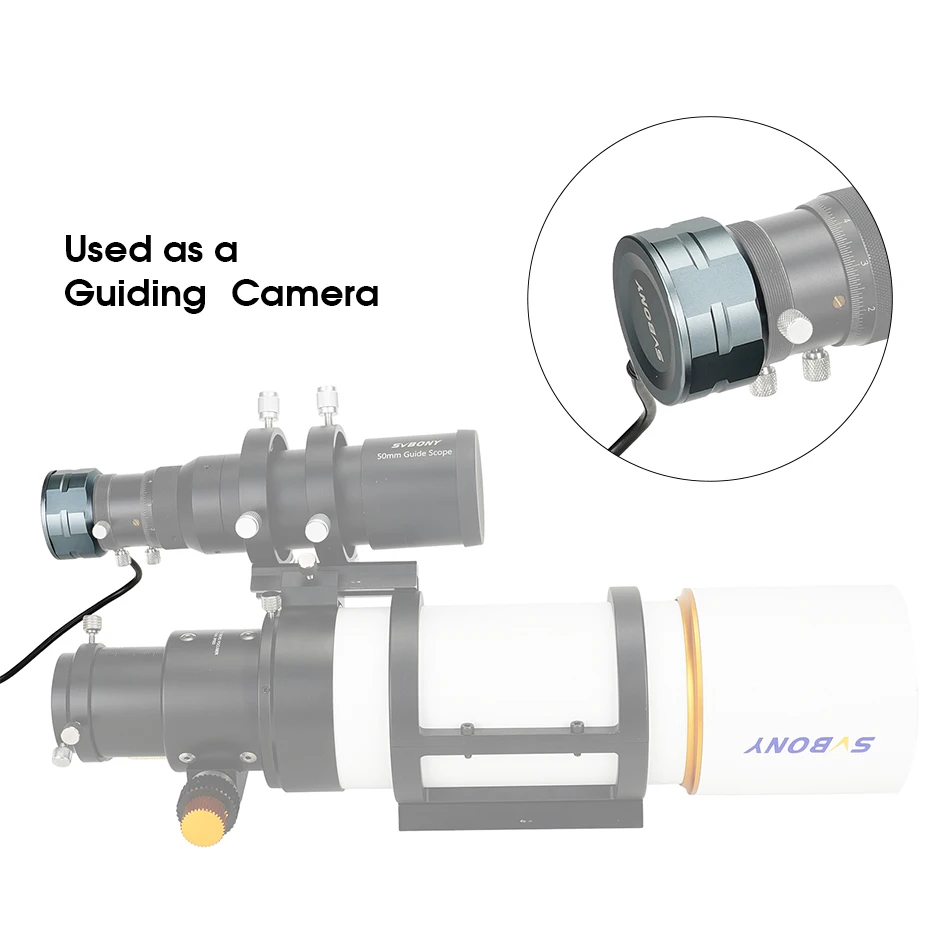

Used as a Guiding Camera

*The camera can not expose for a long time, and is not really sensitive, so it is better to guide brighter objects.

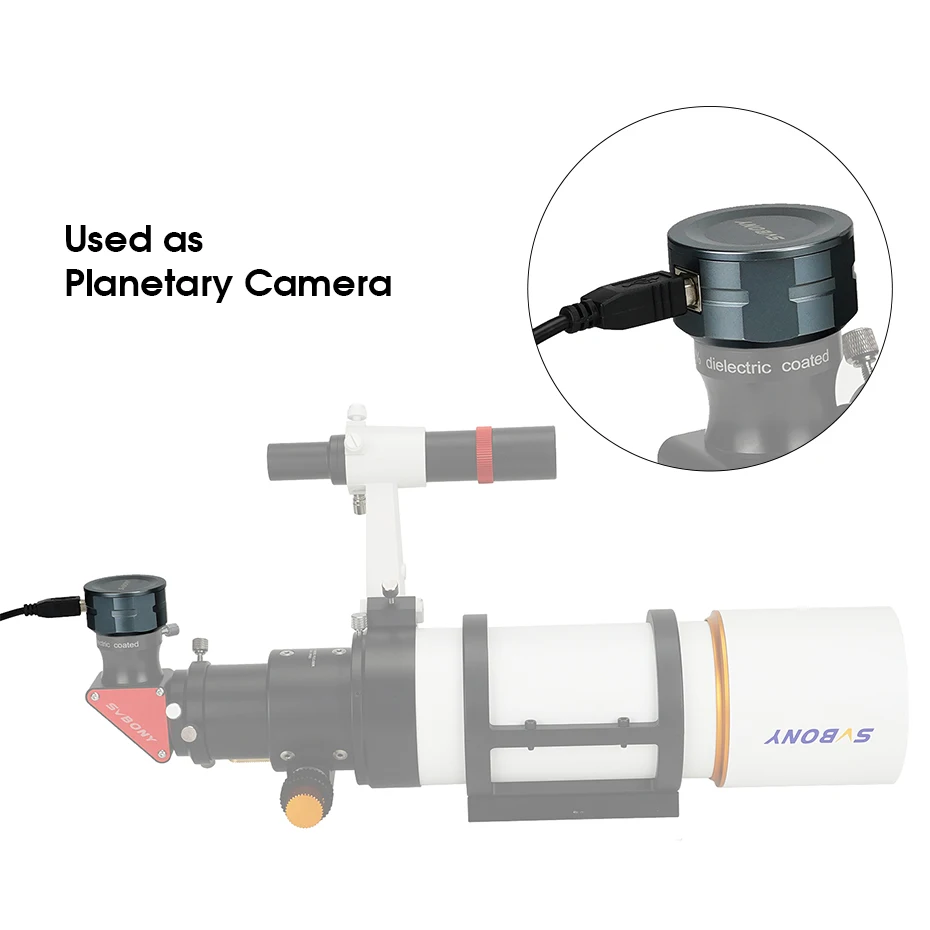

Used as Planetary Camera

*Suited for planetary, lunar and solar photography.

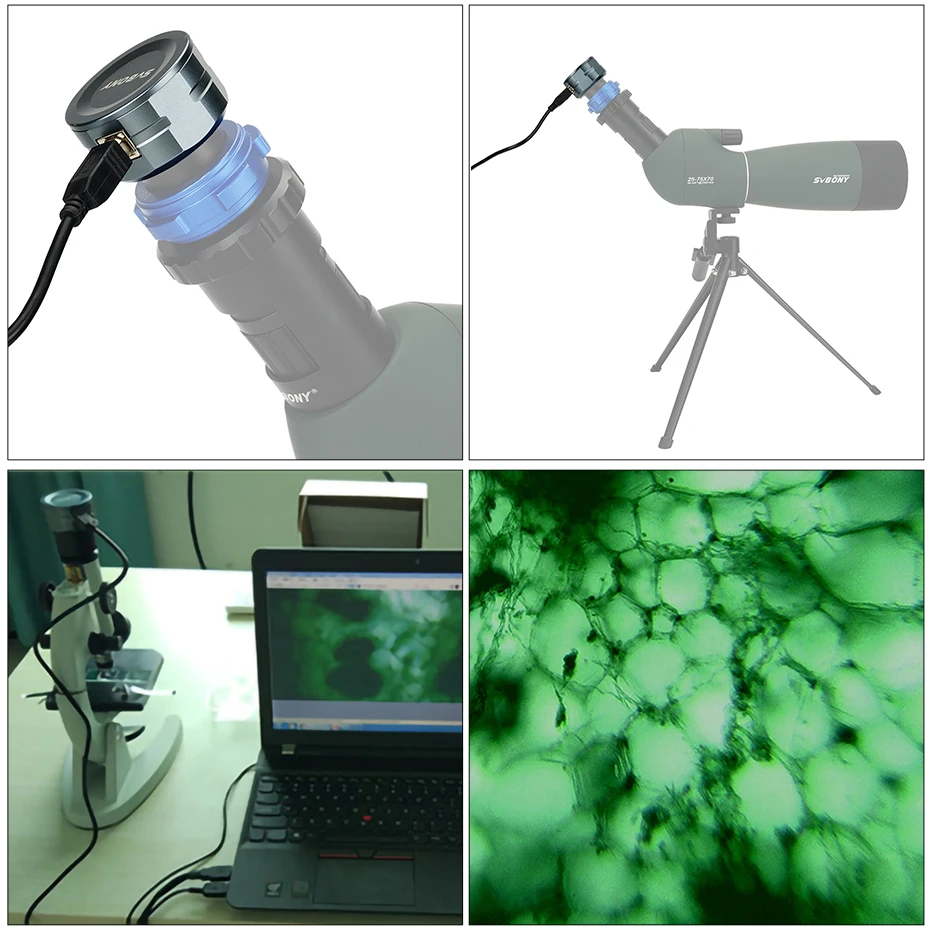

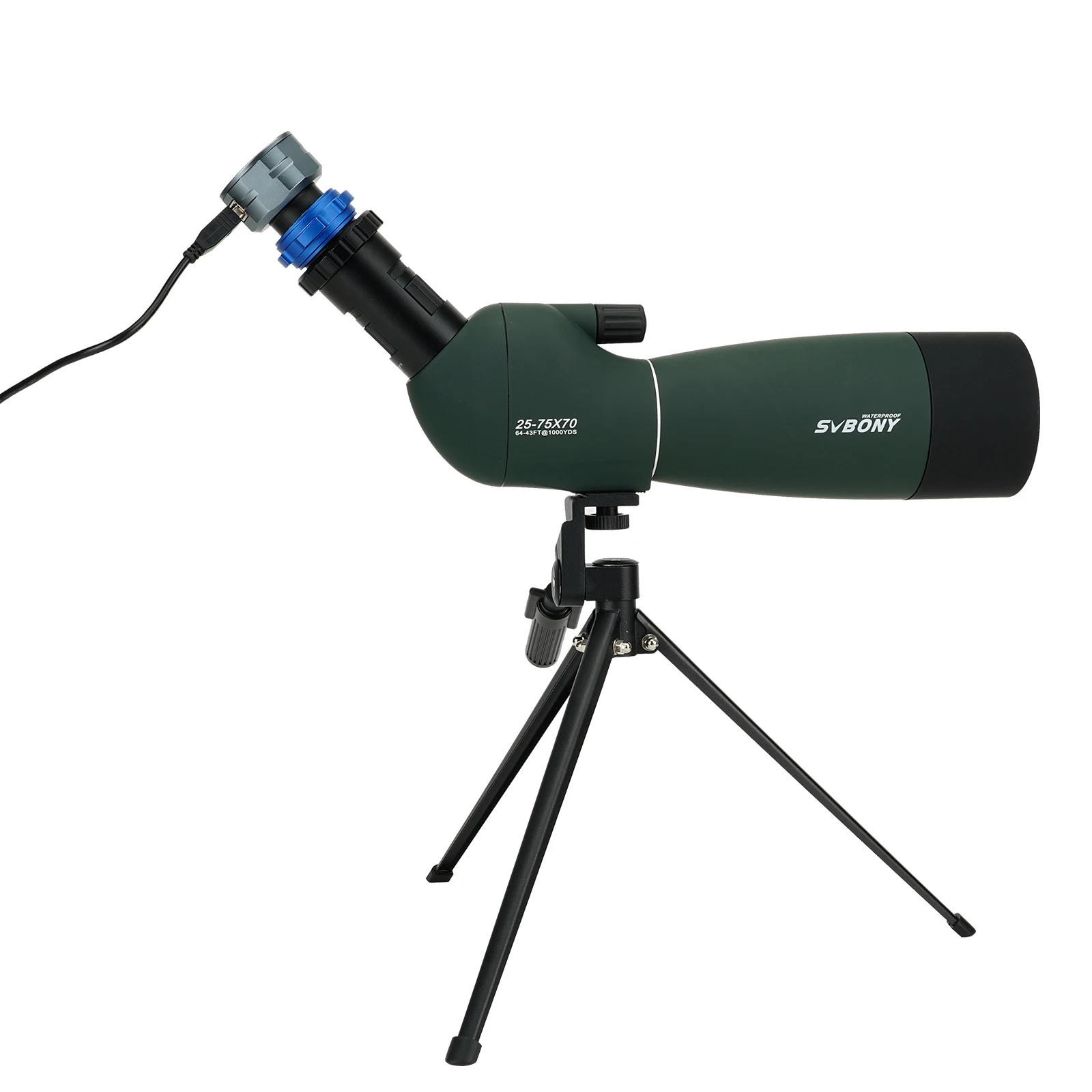

Connect the Spotting Scope (SV28) and Microscope.

SV105 planetary camera
Telescope Skymax 127
2x barlow
focal length 3000mm
Skywatcher Eqm35 pro
Captured with Sharpcap
Processing: Registax 6 and Photoshop
Author:Ioan Nemes

Moon using a SV105 on direct Focus of a Meade 203/SC Schimidt-Cassegrain
Author:Furlani Gma
