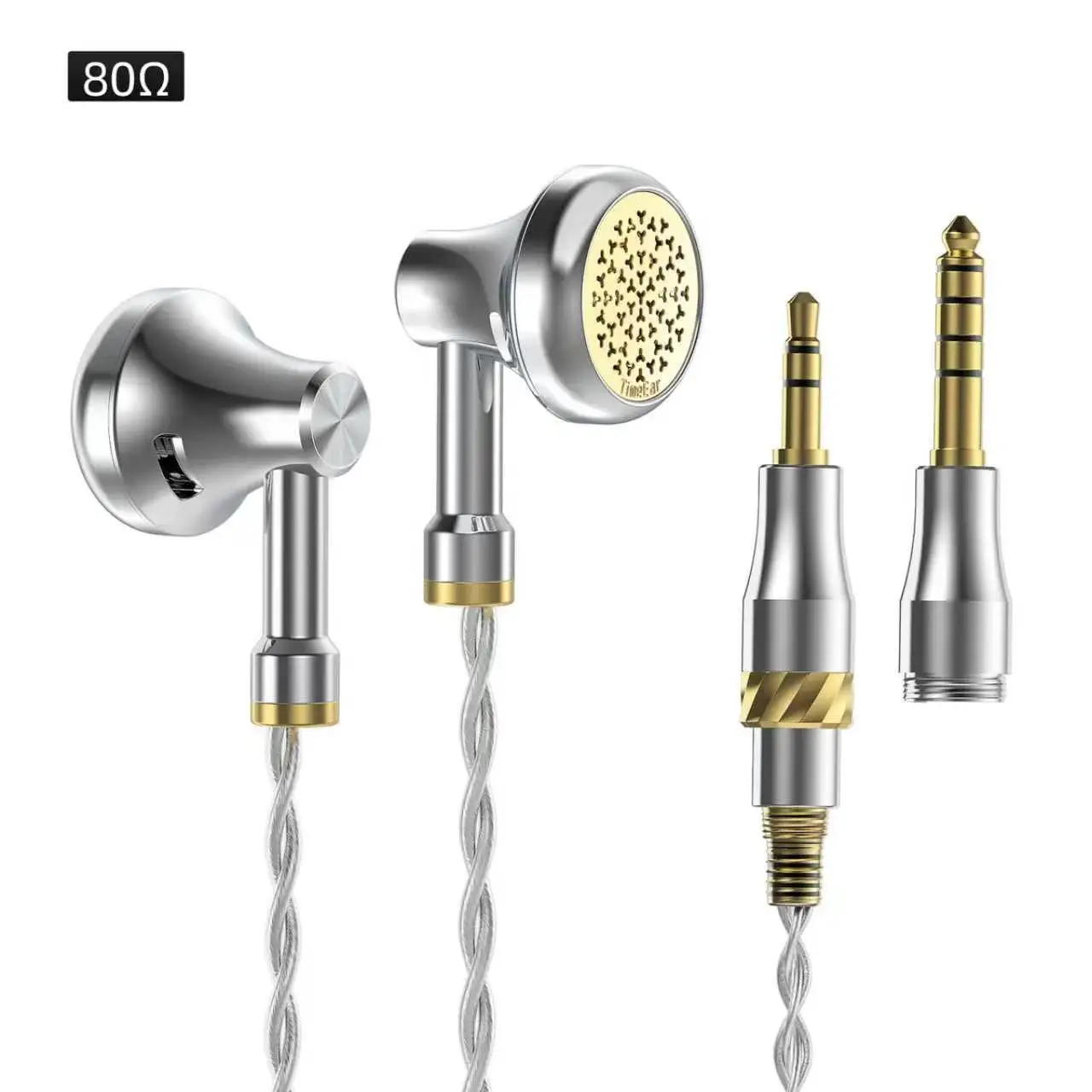

Differences between TimeEar NH60 and NH80

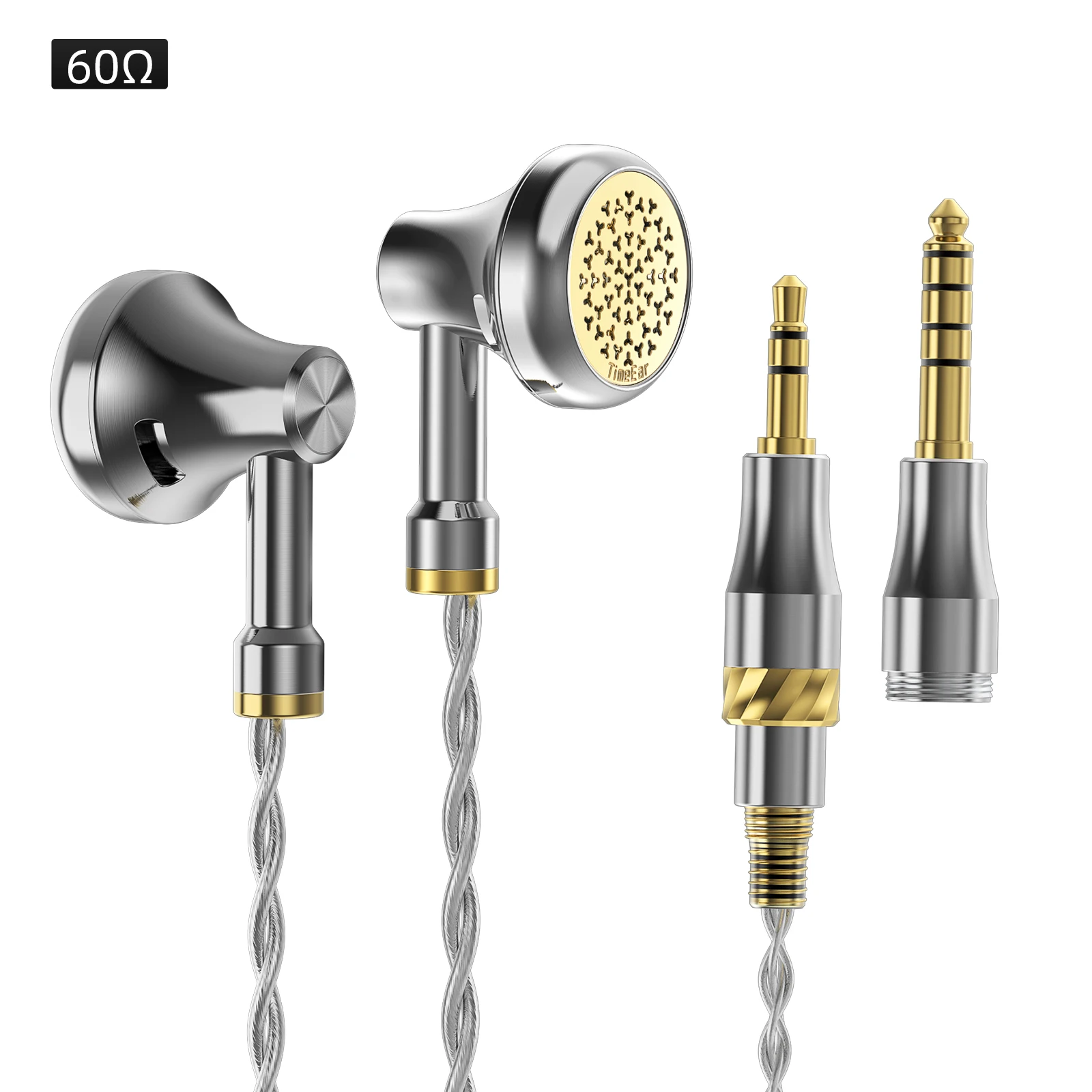

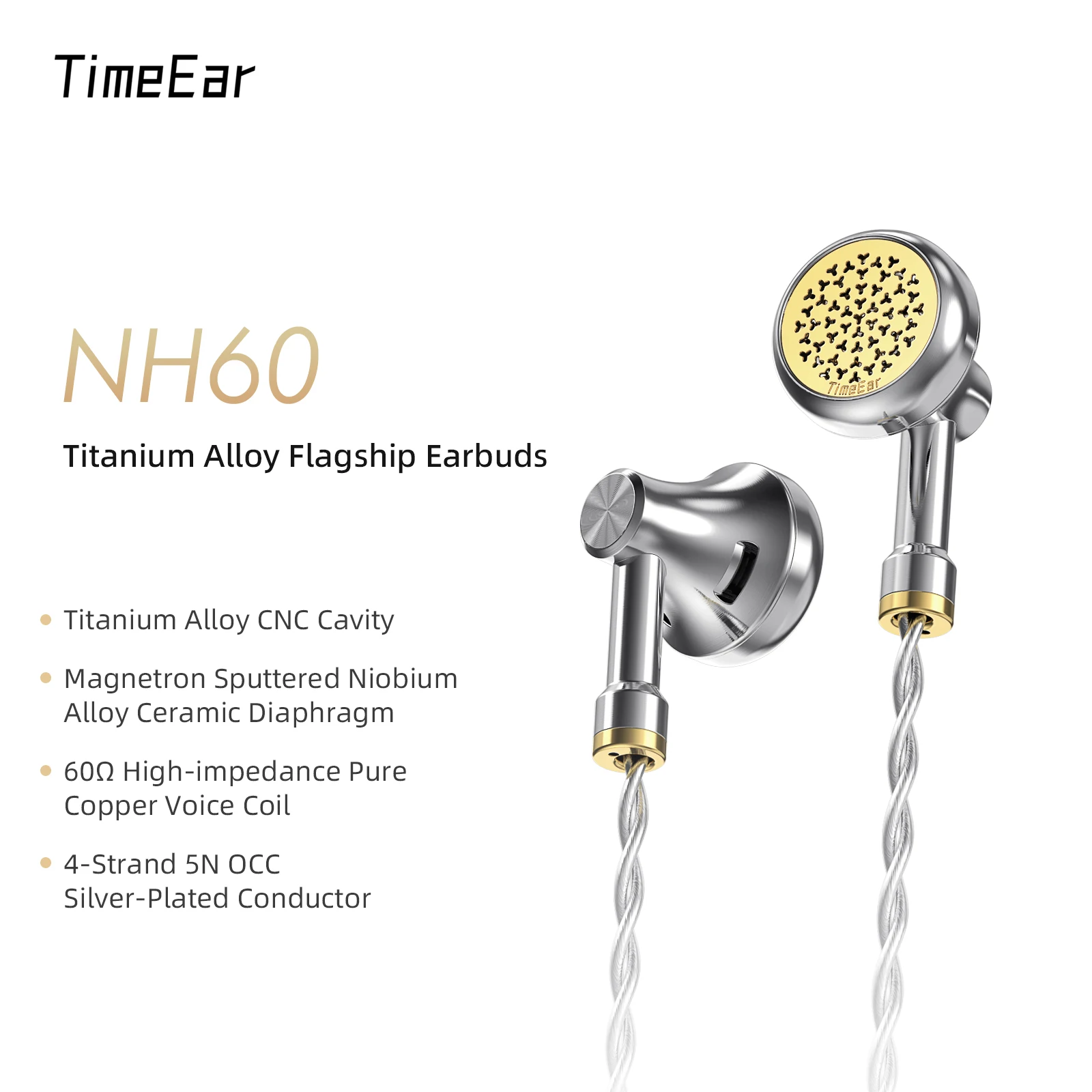

NH60 Marks TimeEar’s Definitive Entry into Flagship Earbud Arena

Following a year of intensive development, it reclaims the classic open-air form factor with a sound signature that is balanced, organic, and exceptionally spacious. By marrying time-honored acoustic principles with modern material science, we have achieved a natural, hall-like resonance that honors the legacy of the greats while pushing the boundaries of what a dynamic driver can achieve.

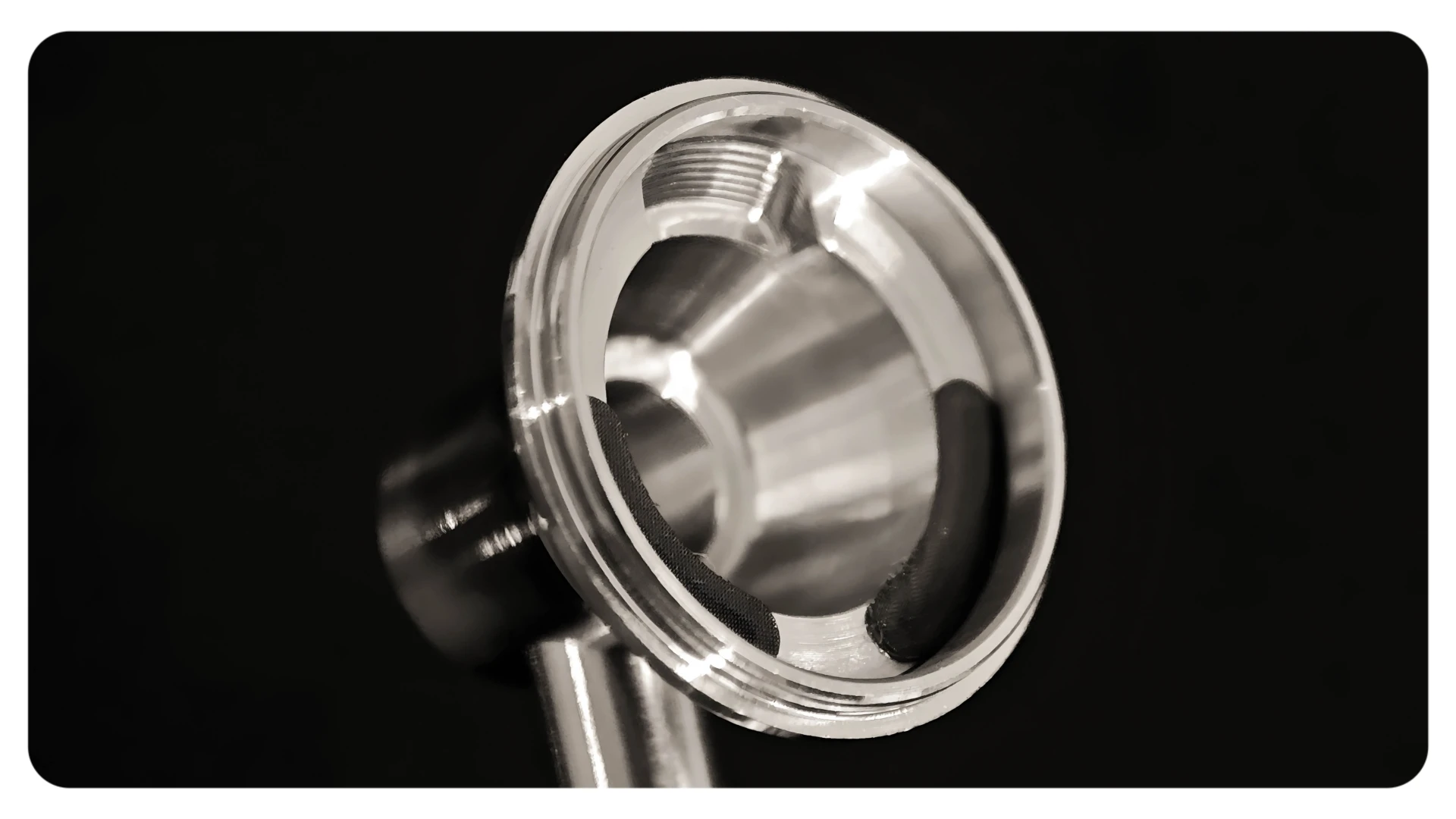

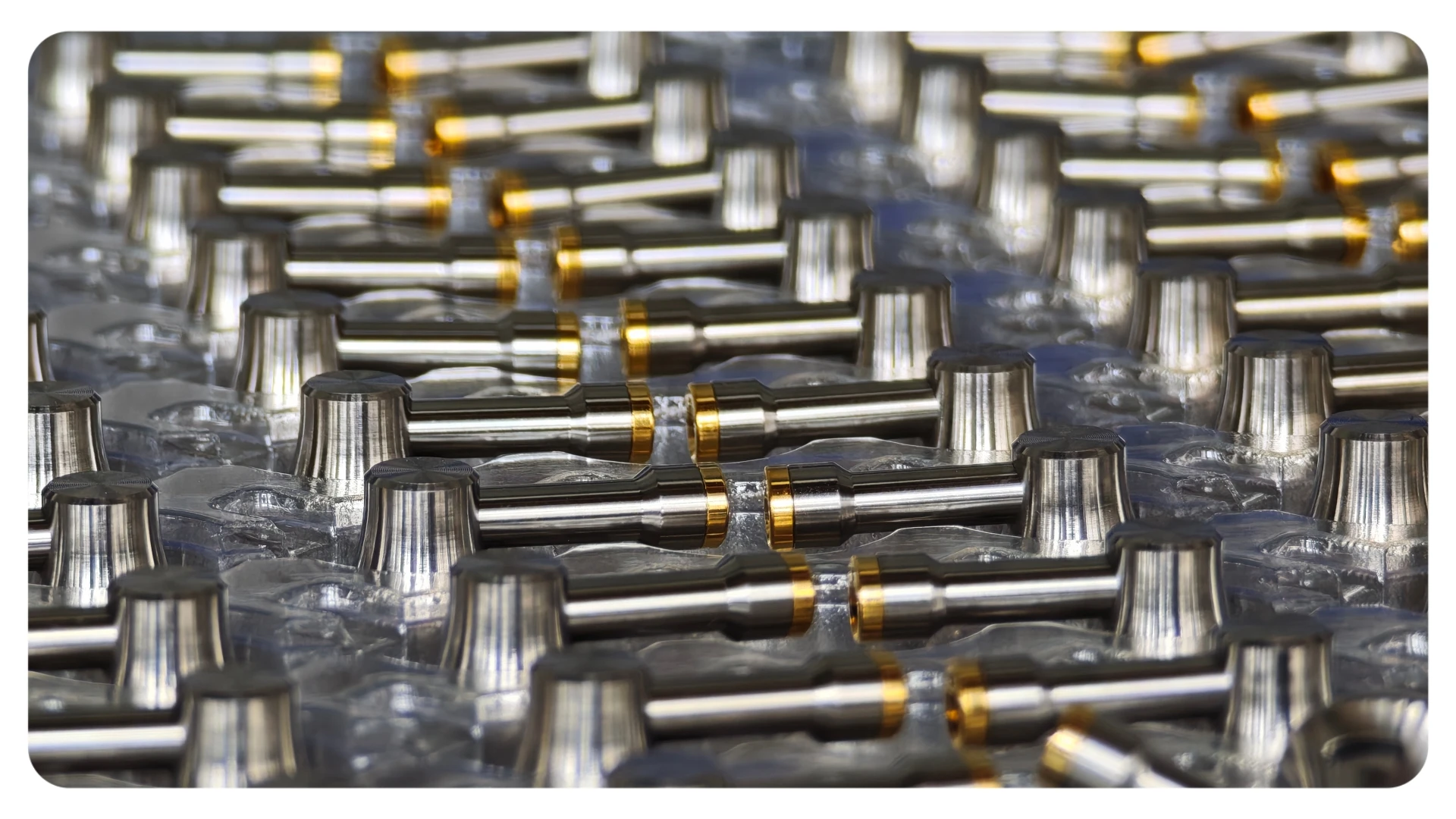

The Search for the Ideal Acoustic Chamber: CNC-Machined Titanium.

Chosen for its extraordinary rigidity, our titanium alloy housing virtually eliminates the internal resonances that can muddy a driver’s output.
By neutralizing these vibrations, the NH60 preserves the absolute purity of the signal, allowing the diaphragm’s natural characteristics to shine through with surgical precision and effortless power.

An Ethos of Pure Tactile Luxury: The Natural Titanium Finish.

While titanium is notoriously difficult to machine, we refused to compromise on the NH60’s aesthetic or structural integrity.
Through an exhaustive process of CNC carving, polishing, and brushing, we have surfaced the metal’s raw, sophisticated luster—resulting in a finish that feels as substantial and timeless as the audio it produces.

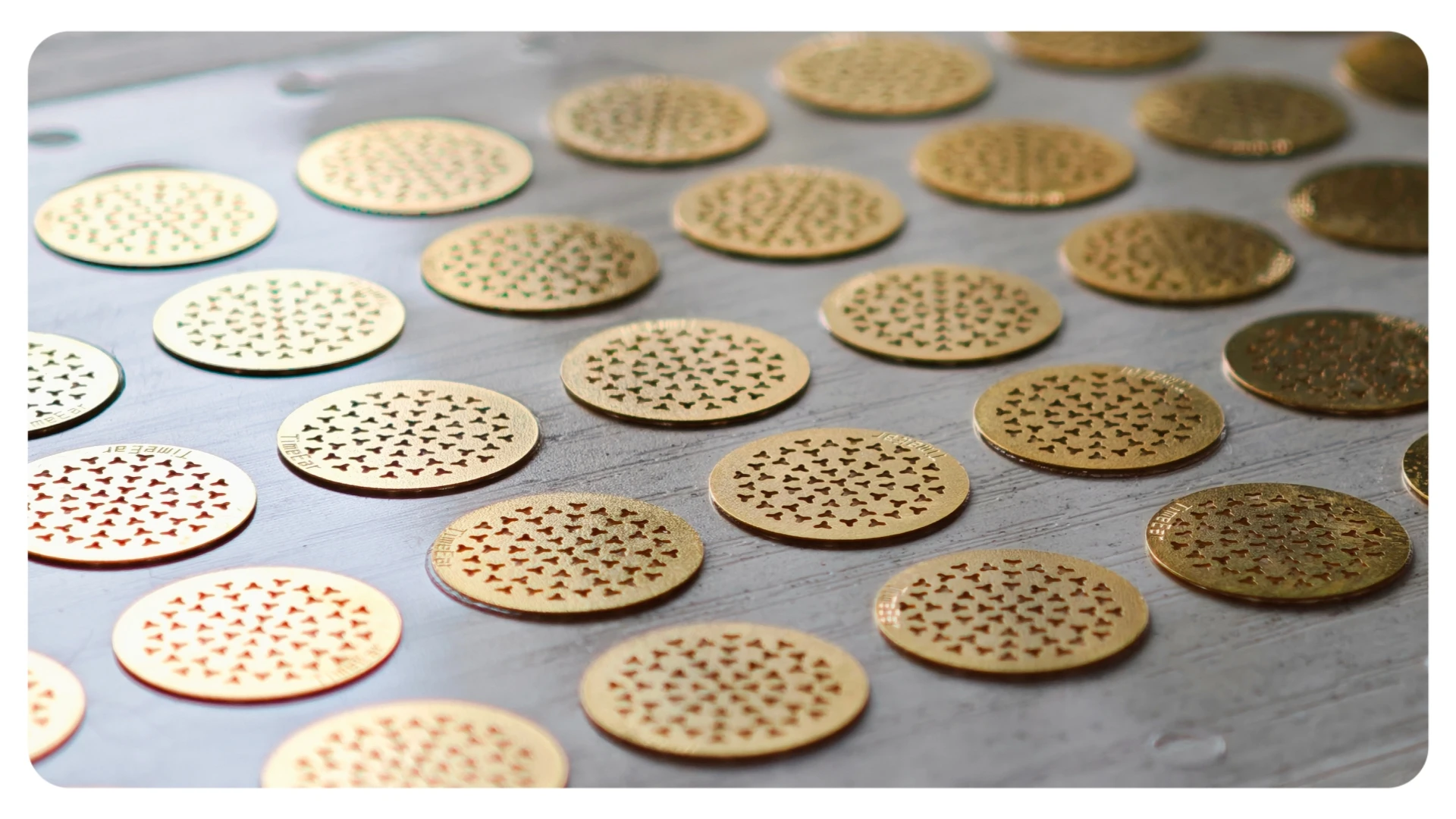

The Gold-Plated Stainless Steel Grille.

Every NH60 faceplate is a complex marriage of form and function, integrating the cavity and the sound outlet into a single, seamless architecture.
This gold-electroplated steel grille isn’t just a visual statement; it houses a bespoke, replaceable dust filter system designed to protect the acoustic engine without ever muffling the high-frequency extension, ensuring your investment sounds pristine for decades.

The Apex of Transparency:

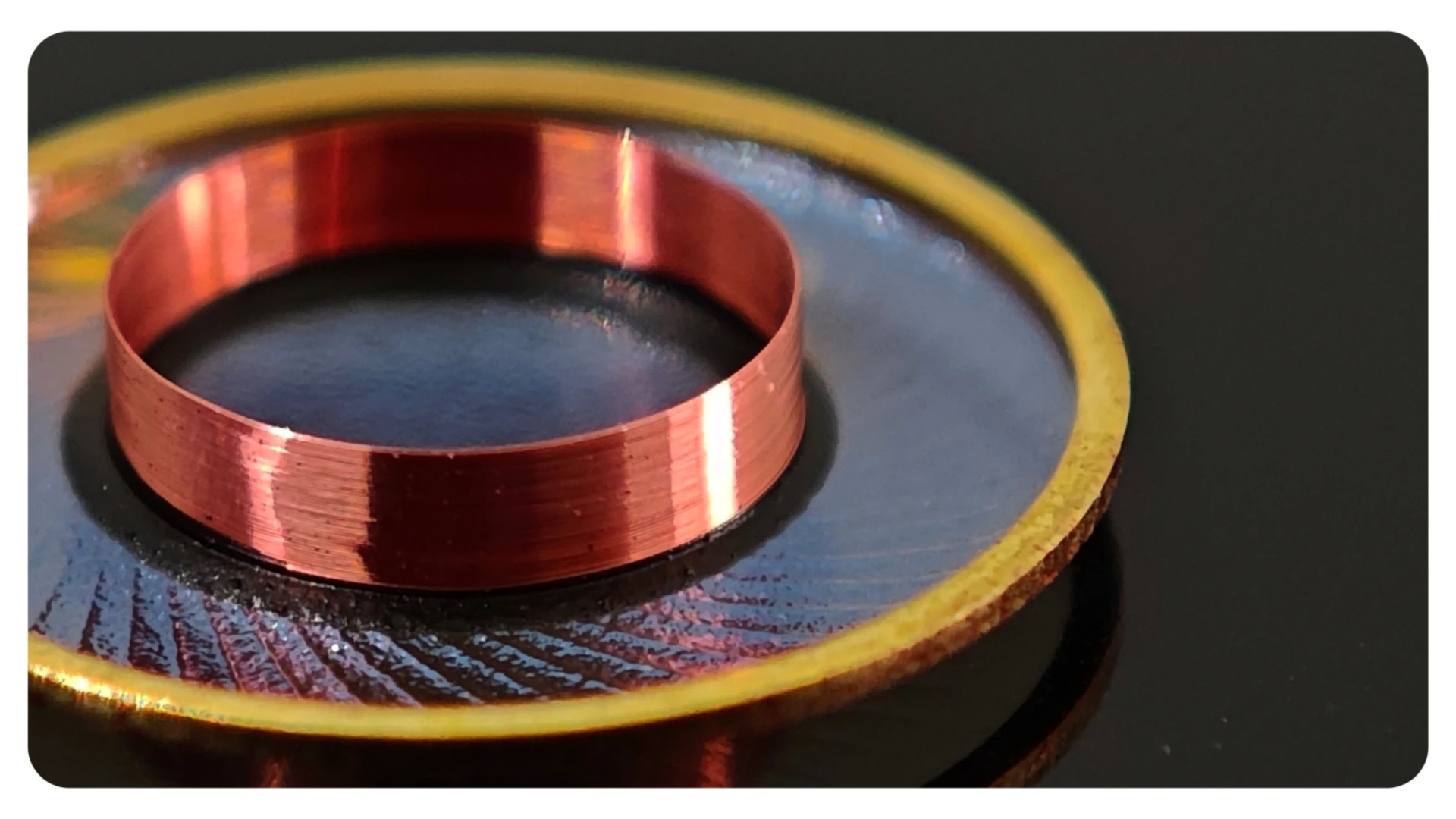

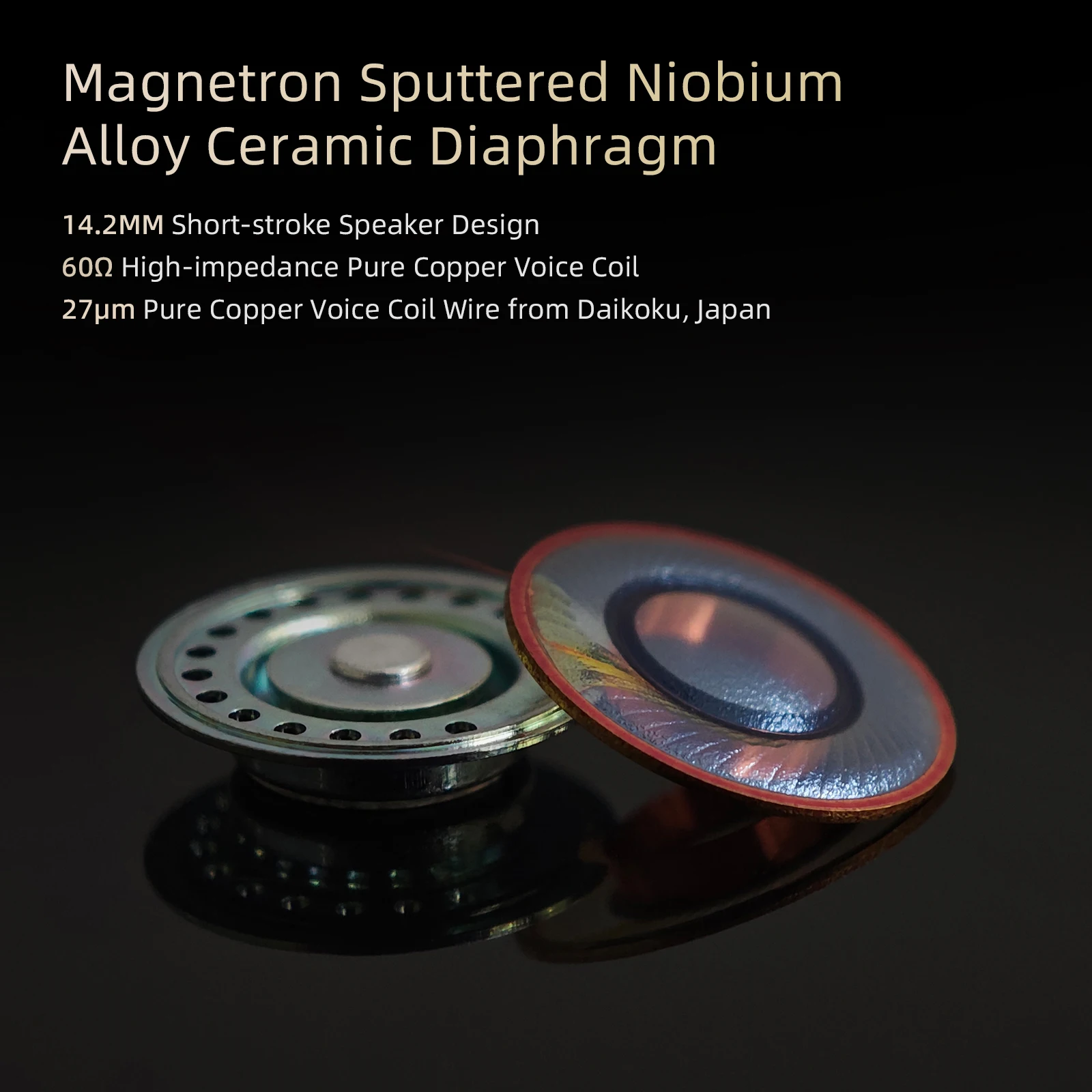

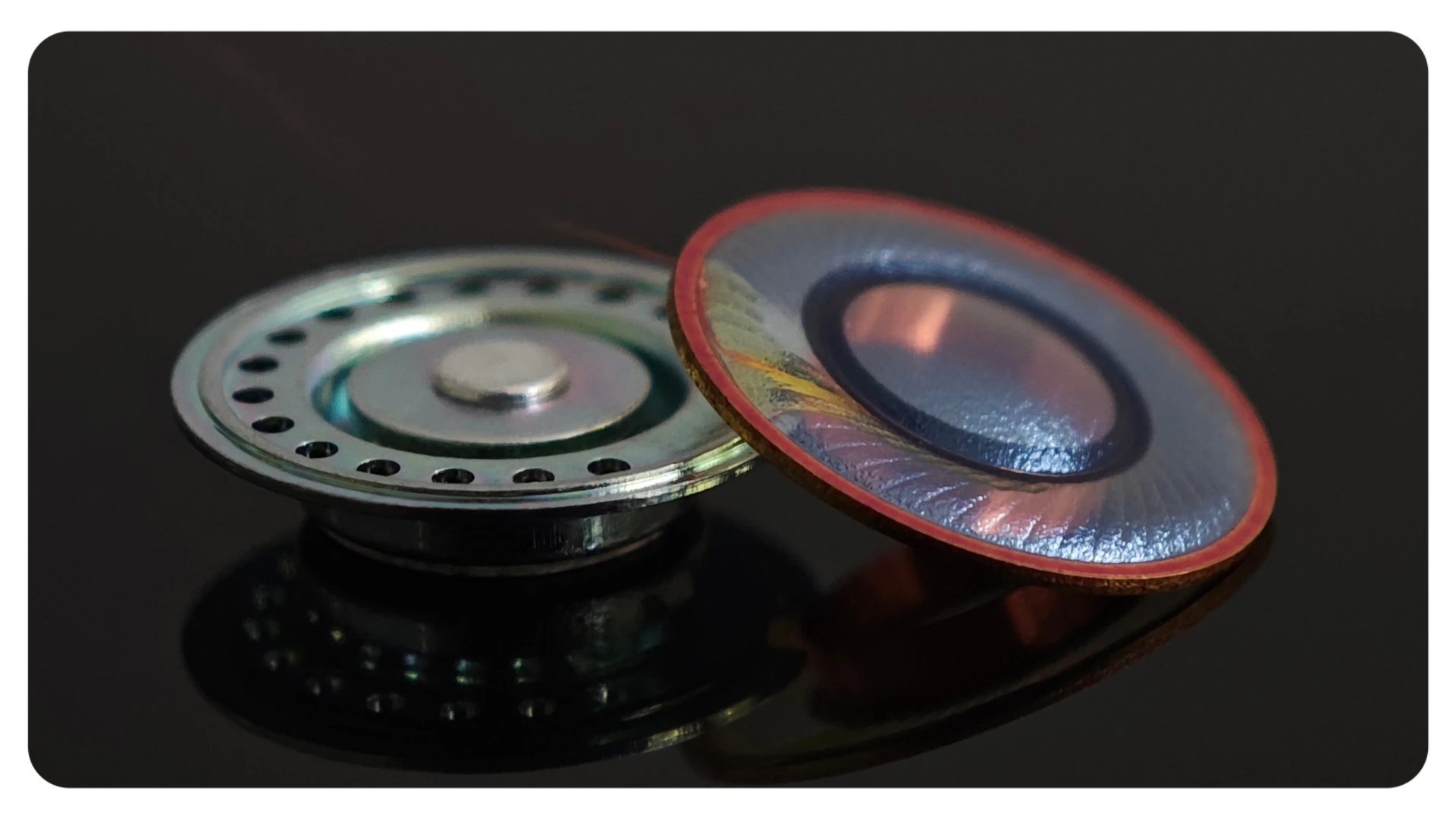

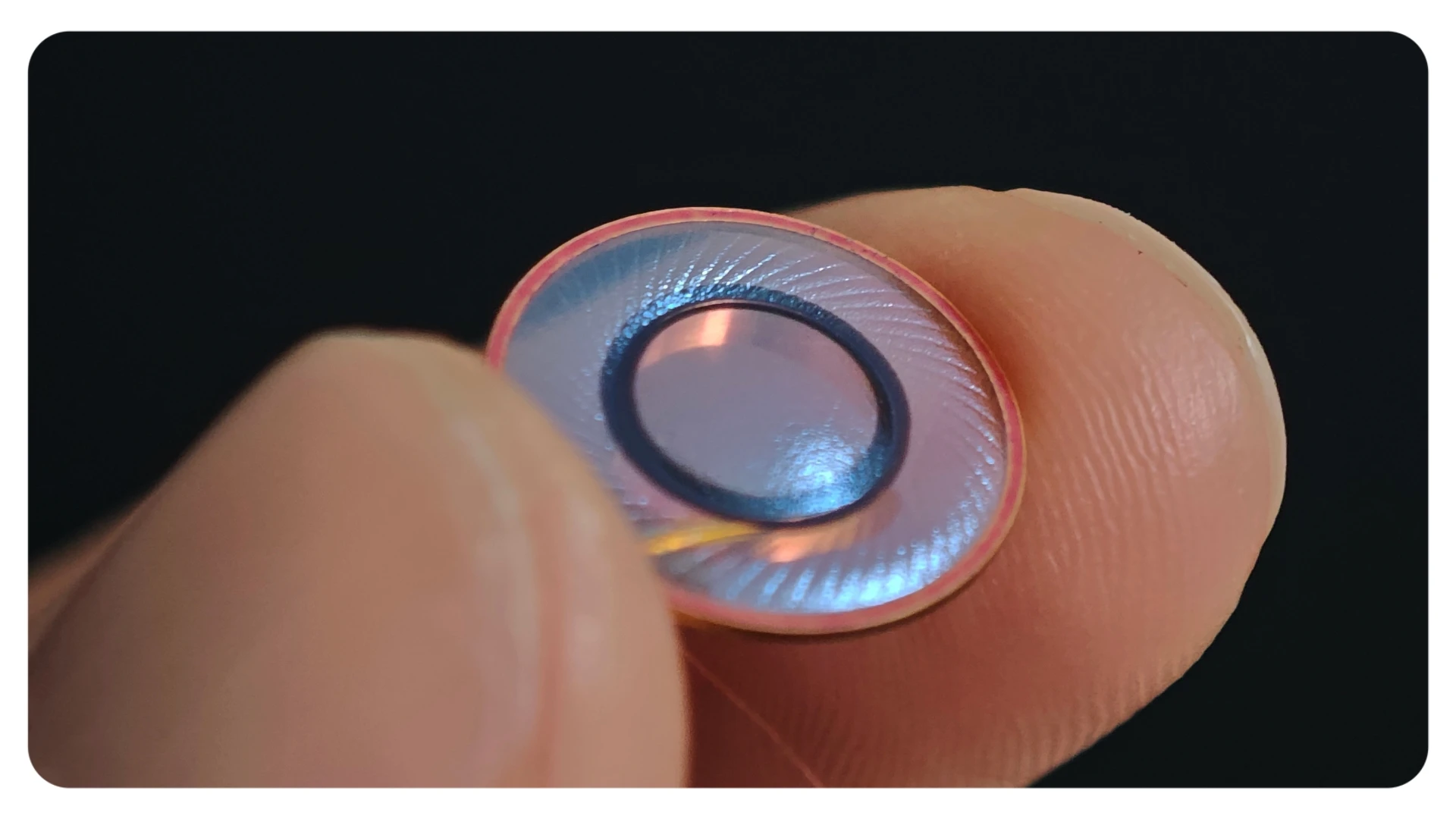

The 6-Micron Niobium-Ceramic Diaphragm.

At the heart of the NH60 is a technological marvel: an ultra-thin ceramic substrate, less than 5 microns thick, transformed through high-temperature magnetron sputtering. By depositing nanoscale layers of Niobium alloy onto the ceramic, we’ve created a translucent blue diaphragm that possesses incredible structural rigidity.
This Niobium reinforcement ensures a perfectly stabilized vibration path, virtually eliminating distortion to deliver a sound that is both breathtakingly clear and harmonically rich. The result is a unique "metallic timbre" that remains warm and intimate for vocals, yet hyper-detailed in the upper registers.
By utilizing a single-material integrated pressing process for the dome and suspension, we ensure a seamless, phase-coherent energy delivery across the entire frequency spectrum.

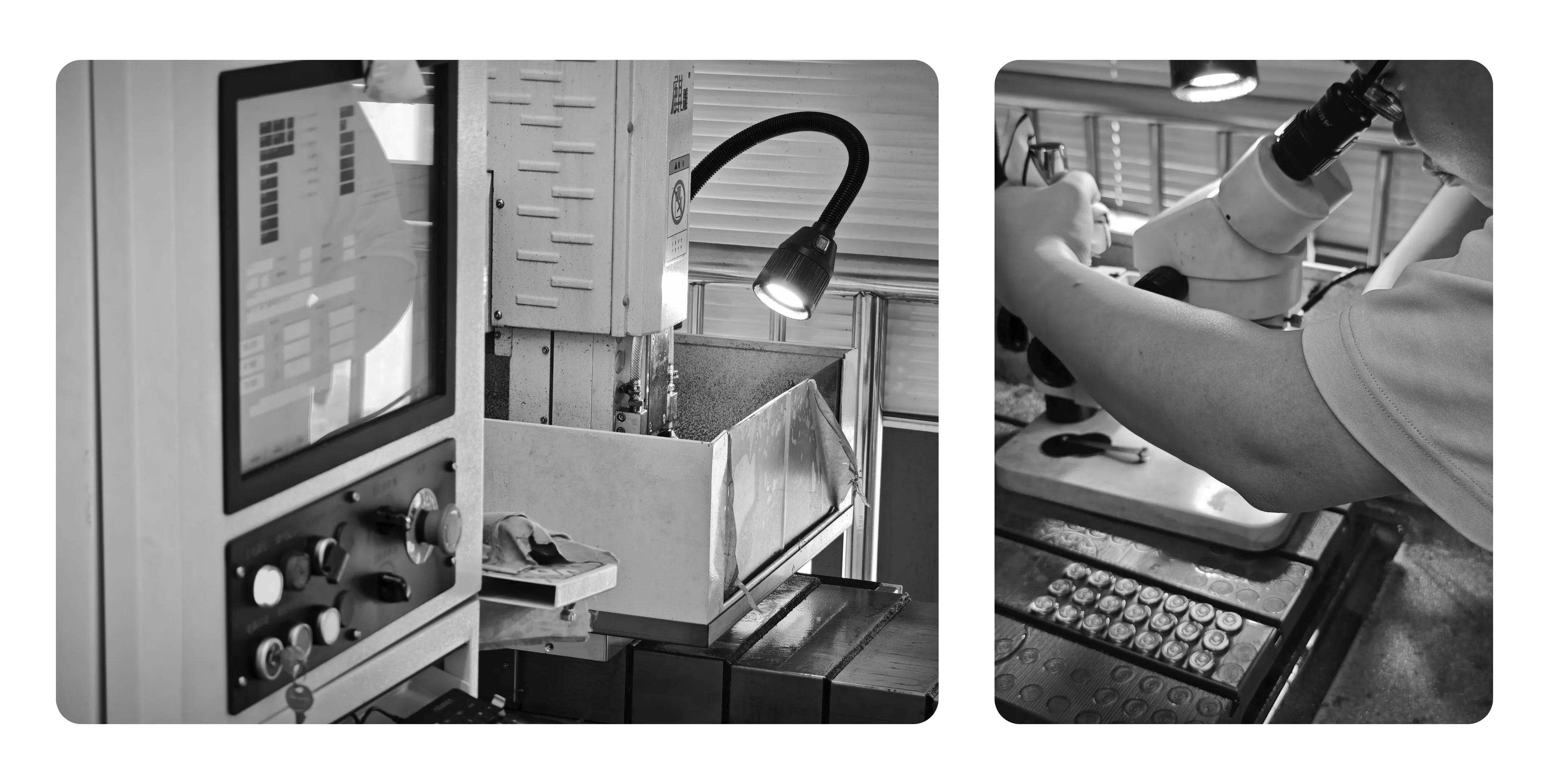

Diaphragm development

This is TimeEar's dynamic driver and diaphragm structure engineers examining a diaphragm model under a microscope.

The diaphragm's structural design is controlled at the micrometer level. Even with all other parameters remaining identical, the diaphragm's structure undergoes subtle adjustments to achieve optimal sound performance under different design objectives.

The 60-Ohm High-Impedance Heart.

In a nod to the great high-fidelity transducers of the past, the NH60 utilizes a high-impedance pure copper voice coil. By using ultra-fine, 27-micron wire from Daikoku, Japan, we increase the number of windings to achieve higher inductance. This naturally tames high-frequency "overshoot," resulting in a treble response that is remarkably smooth, liquid, and non-fatiguing.
Unlike common copper-clad aluminum, our pure copper conductors provide the superior conductivity and driving efficiency required to move the diaphragm with absolute authority.

Precision Motion:
The 14.2mm Short-Stroke Driver.

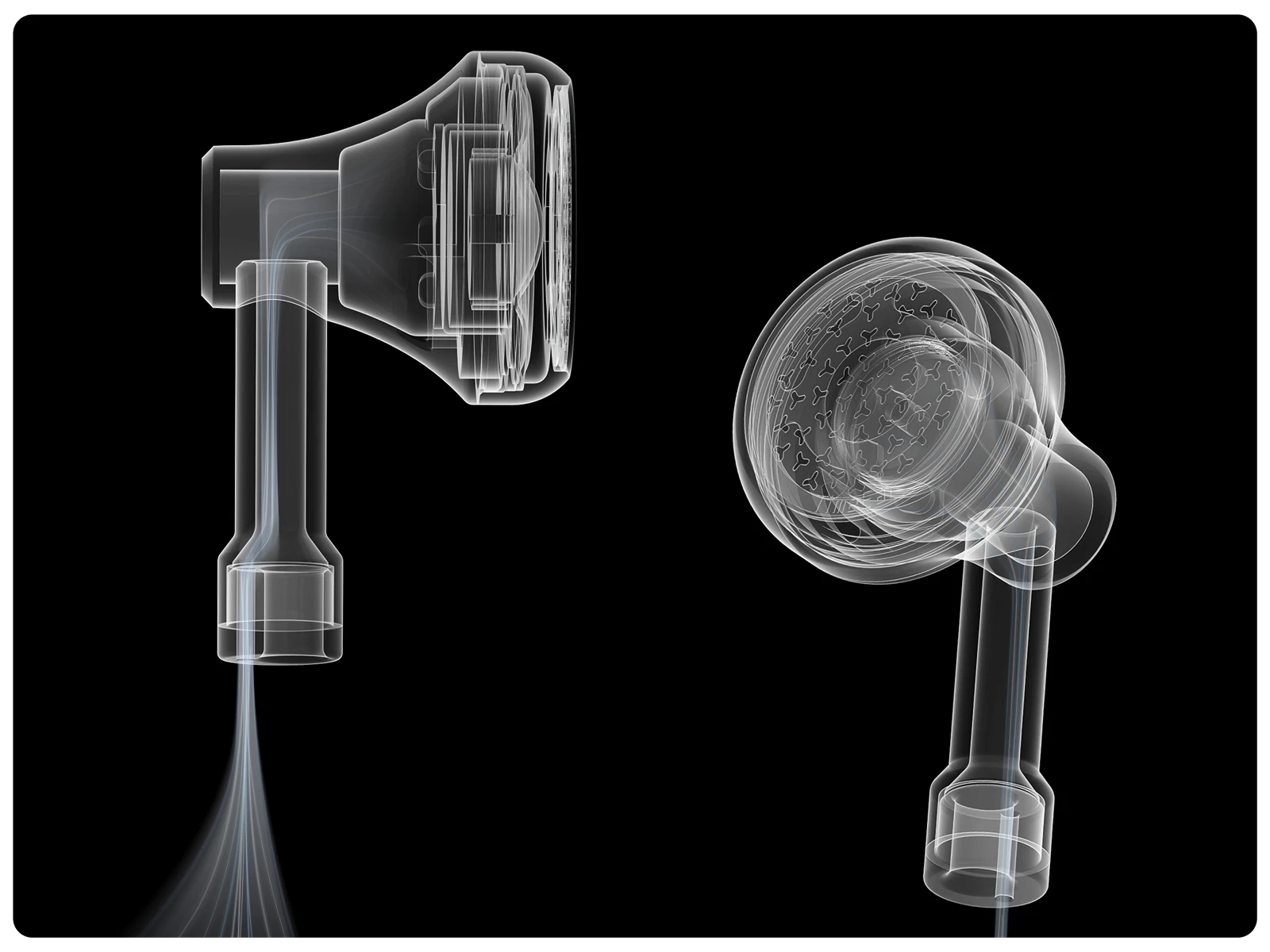

The NH60’s motor system is engineered for total control. By pairing a high-density coil with a short-stroke design, the driver remains in its "sweet spot" regardless of volume, ensuring consistent linearity. To allow the diaphragm to breathe, we’ve implemented a semi-open rear cavity.
This eliminates the "air-spring" resistance found in closed designs, allowing for a more natural, linear low-frequency decay and a dramatic reduction in unwanted distortion.

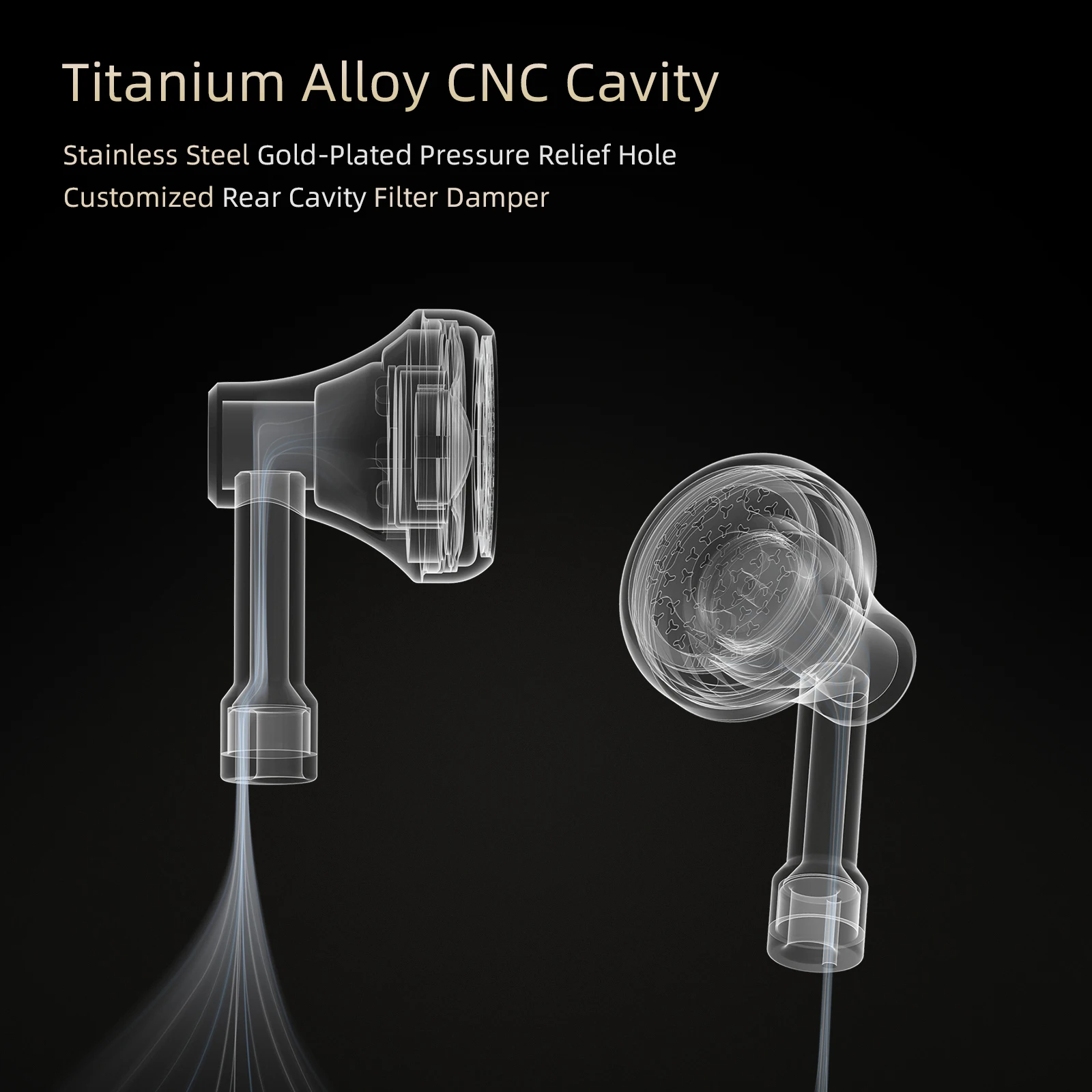

Sculpted Low-End:
Gold-Plated Pressure Relief and Custom Damping.

To achieve that elusive, immersive bass "bloom," the NH60 features dual-aligned ventilation ports paired with a bespoke mesh damping system. These gold-plated relief holes, integrated into the slender handle, are precisely tuned to manage low-frequency dispersion.
While the driver provides the raw power and impact, the cavity architecture ensures the bass dissipates with a sophisticated, natural trail—providing a sense of scale and "atmosphere" that few earbuds can replicate.

The TEN-99 Pro Coaxial Cable.

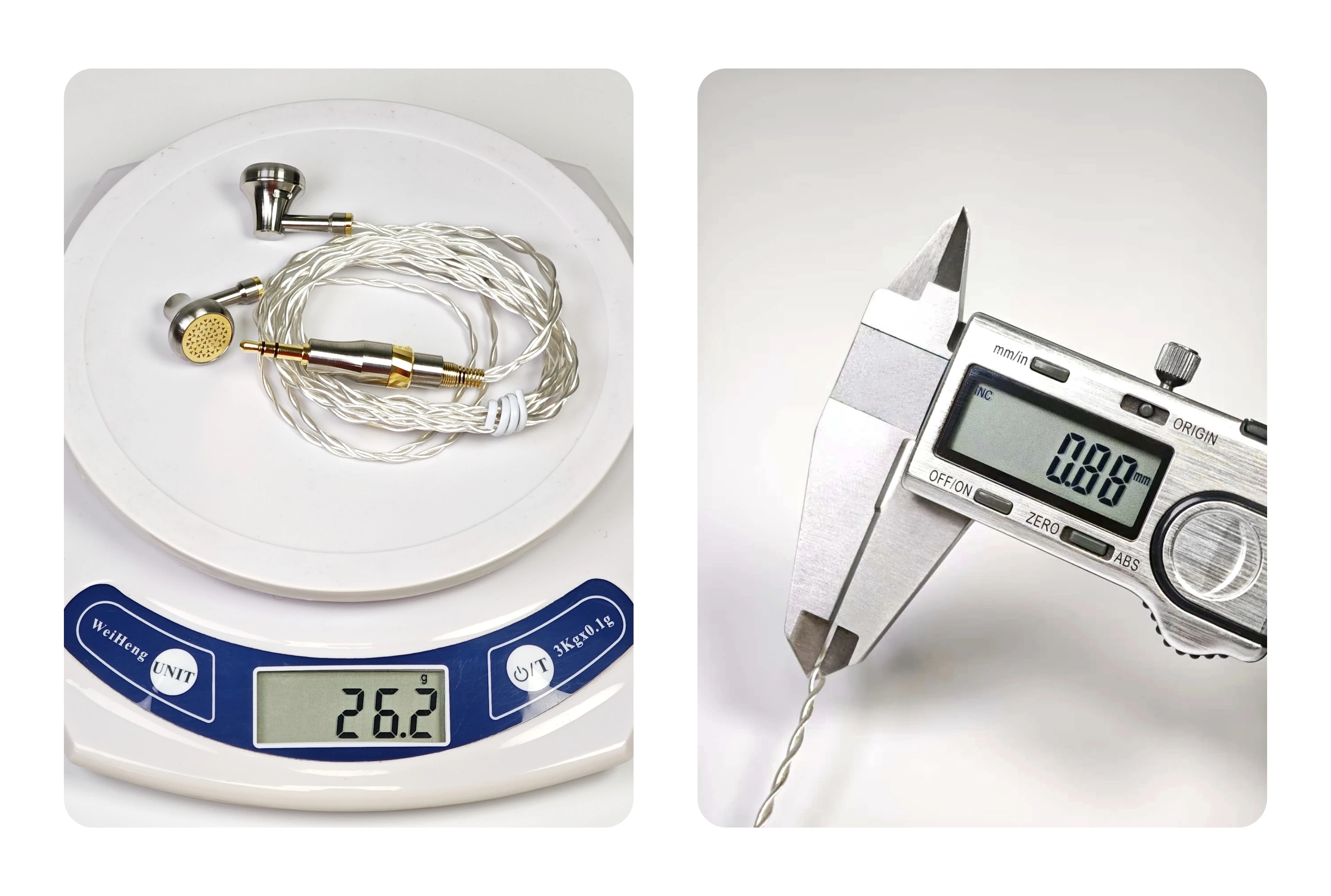

Superior sound requires an unblemished signal path. The NH60 is paired with an upgraded 5N single-crystal, silver-plated copper cable in a sophisticated coaxial configuration. Despite its ultra-fine 0.88mm diameter, this design offers exceptional anti-interference properties and signal purity. We’ve reinforced this lightweight cable with aramid fibers and a robust sheath, ensuring that it is as durable and tangle-resistant as it is sonically transparent.

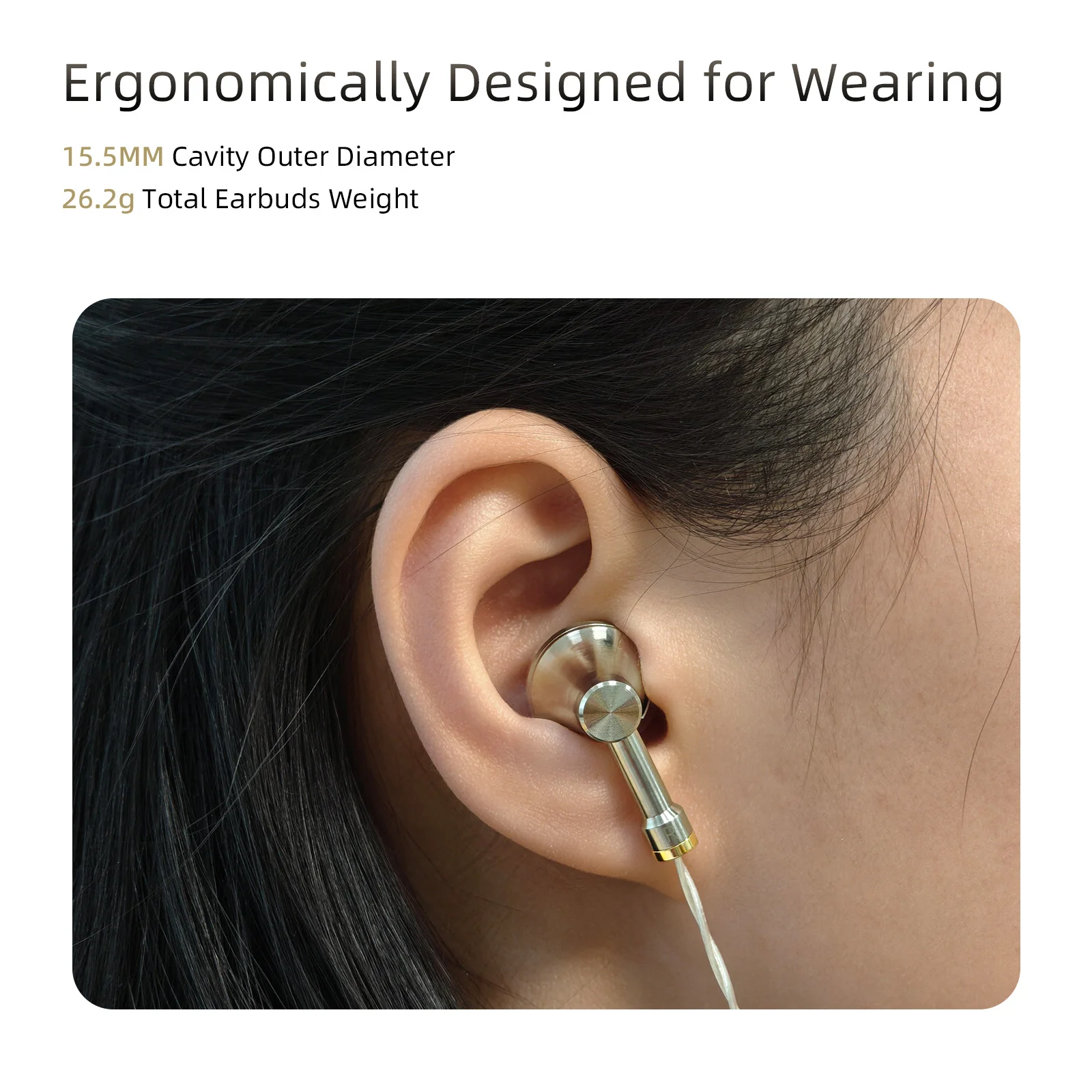

Refined Ergonomics:
Smaller, Thinner, Lighter.

We have meticulously shaved every unnecessary millimeter to ensure a universal fit. With a slim 15.5mm diameter and a front profile of just 5.5mm, the NH60 sits effortlessly in the ear for marathon listening sessions.
Thanks to the lightweight properties of titanium and our ultra-fine cabling, the entire assembly weighs just 26.2 grams—providing a "disappearing" sensation that lets the music take center stage.

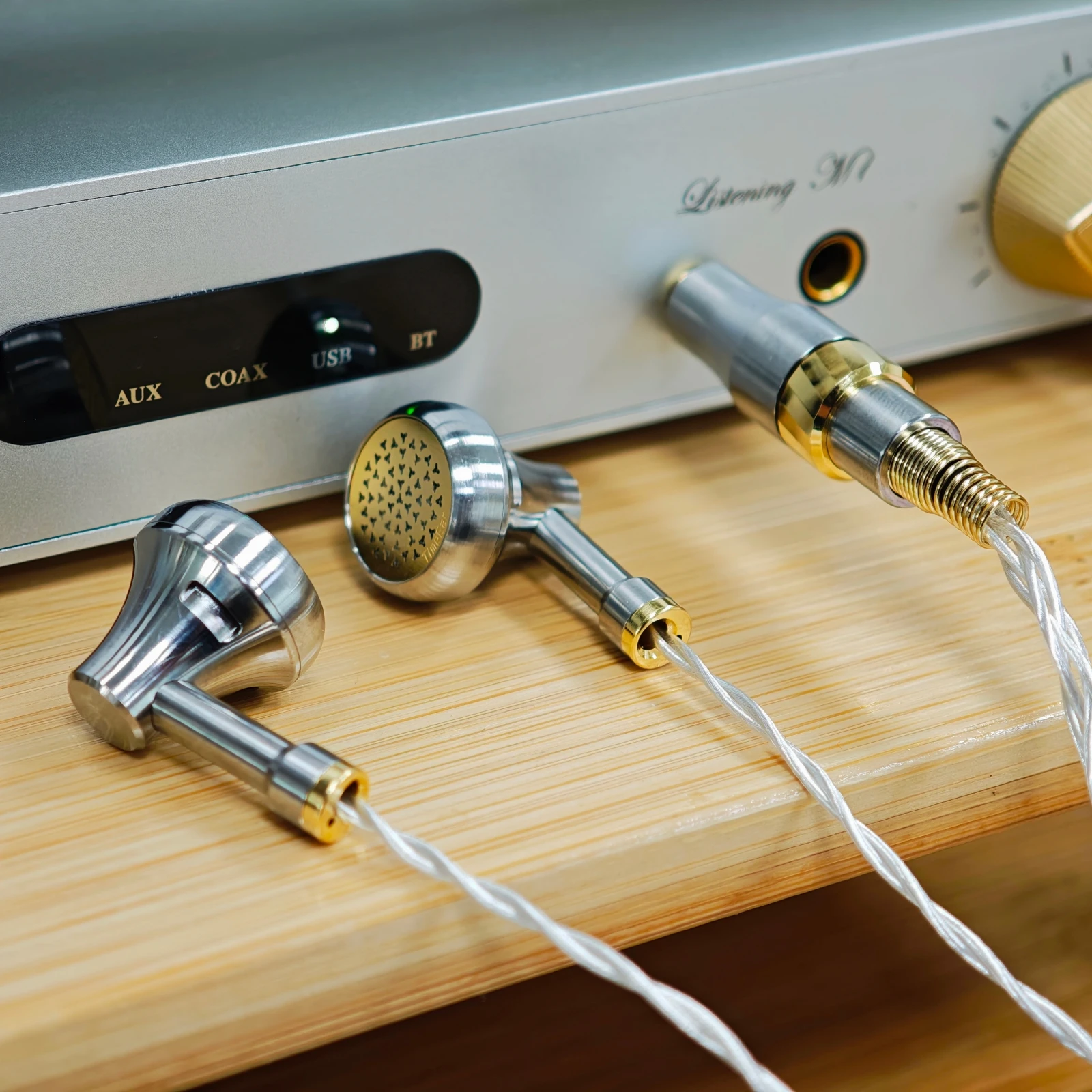

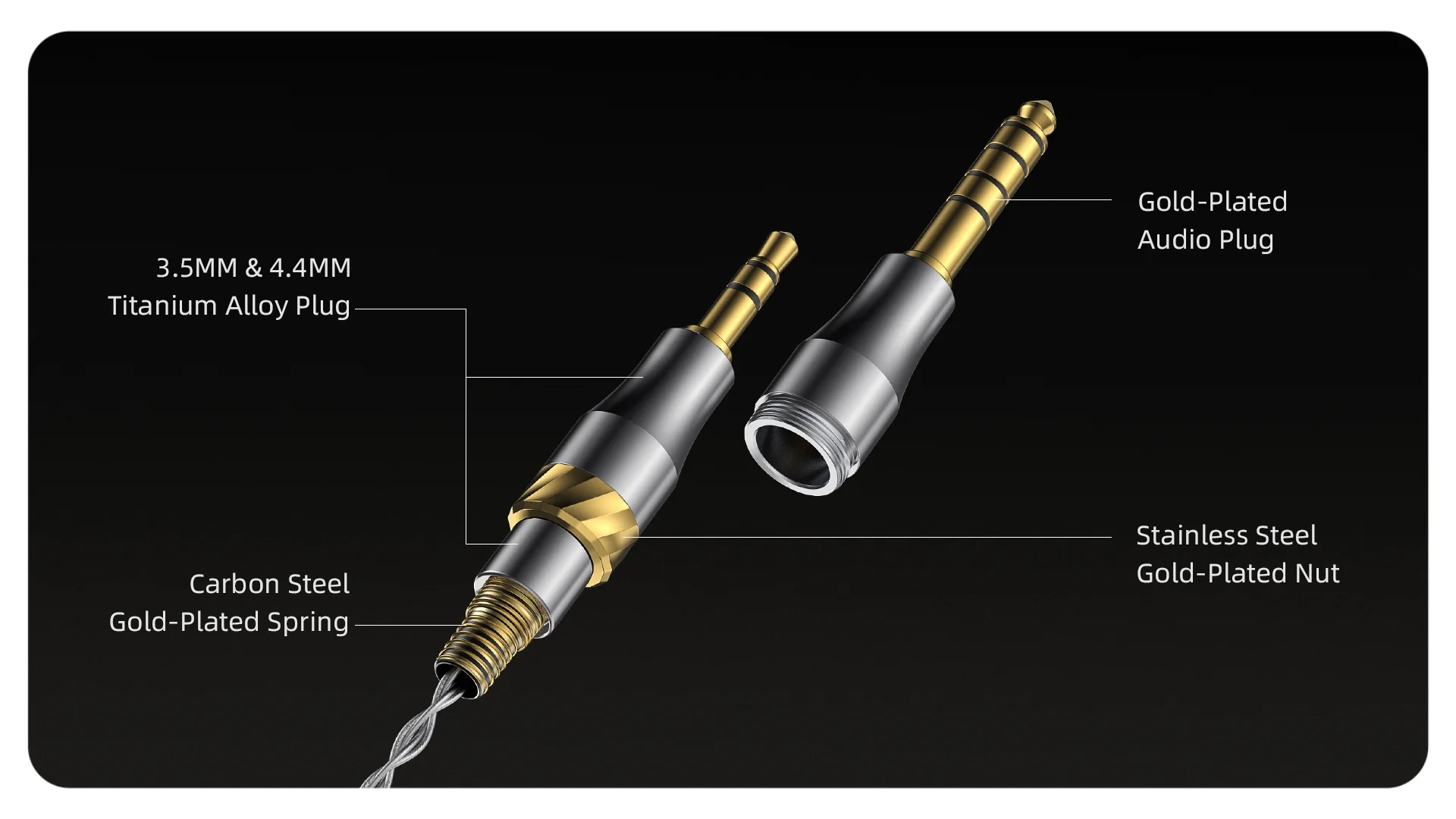

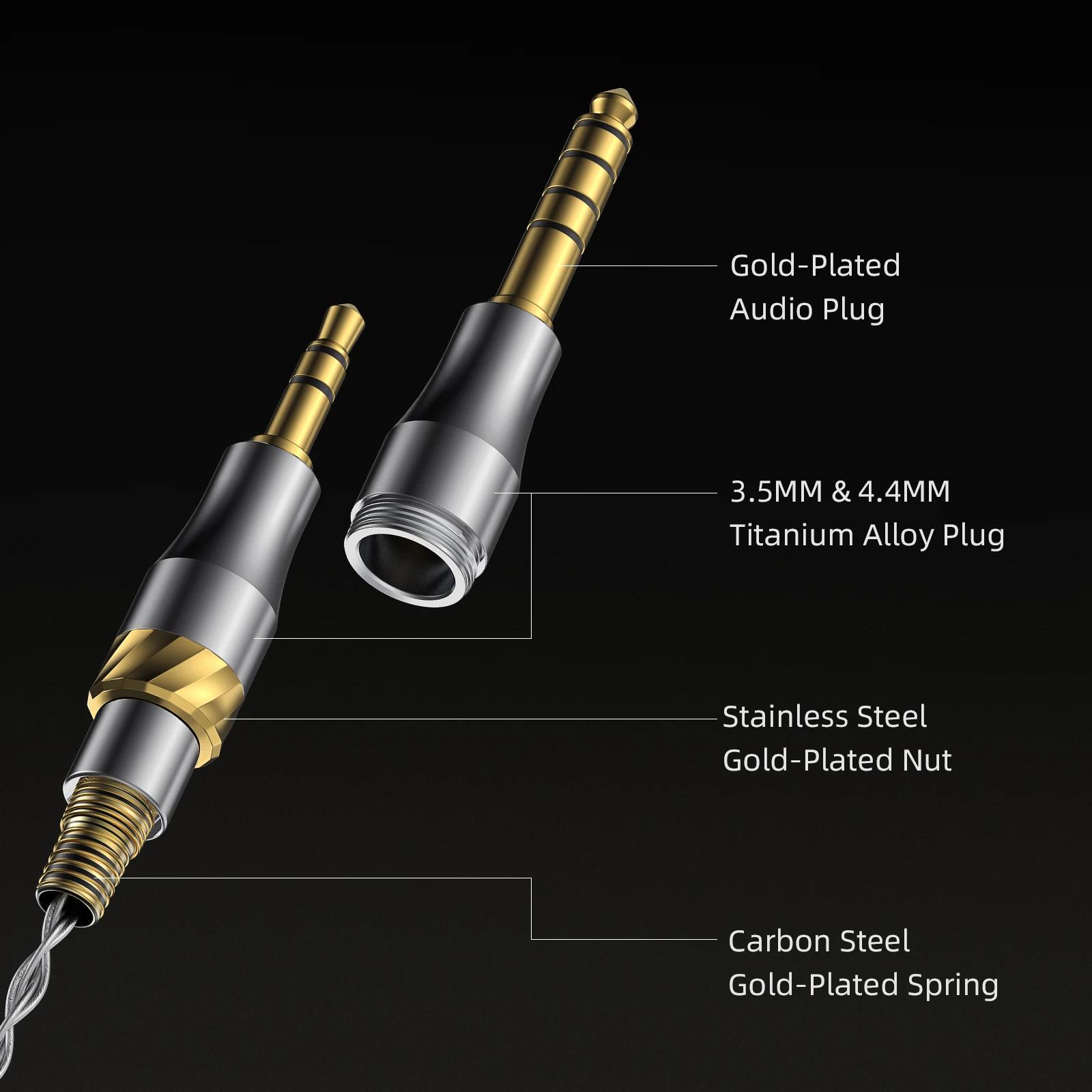

A Masterclass in Metallic Order.

The NH60’s hardware is a curated gallery of metallurgical craft, blending titanium, gold, and steel into a functional work of art. Our gold-plated connectors ensure a low-resistance, oxidation-free interface, while the 3.5mm and 4.4mm terminations are housed in the same precision-machined titanium as the earbuds themselves. From the gold-plated stainless steel nuts that allow for easy cable swaps to the carbon-steel springs designed to protect the wire from bending stress, every component reflects a relentless pursuit of longevity and aesthetic harmony.

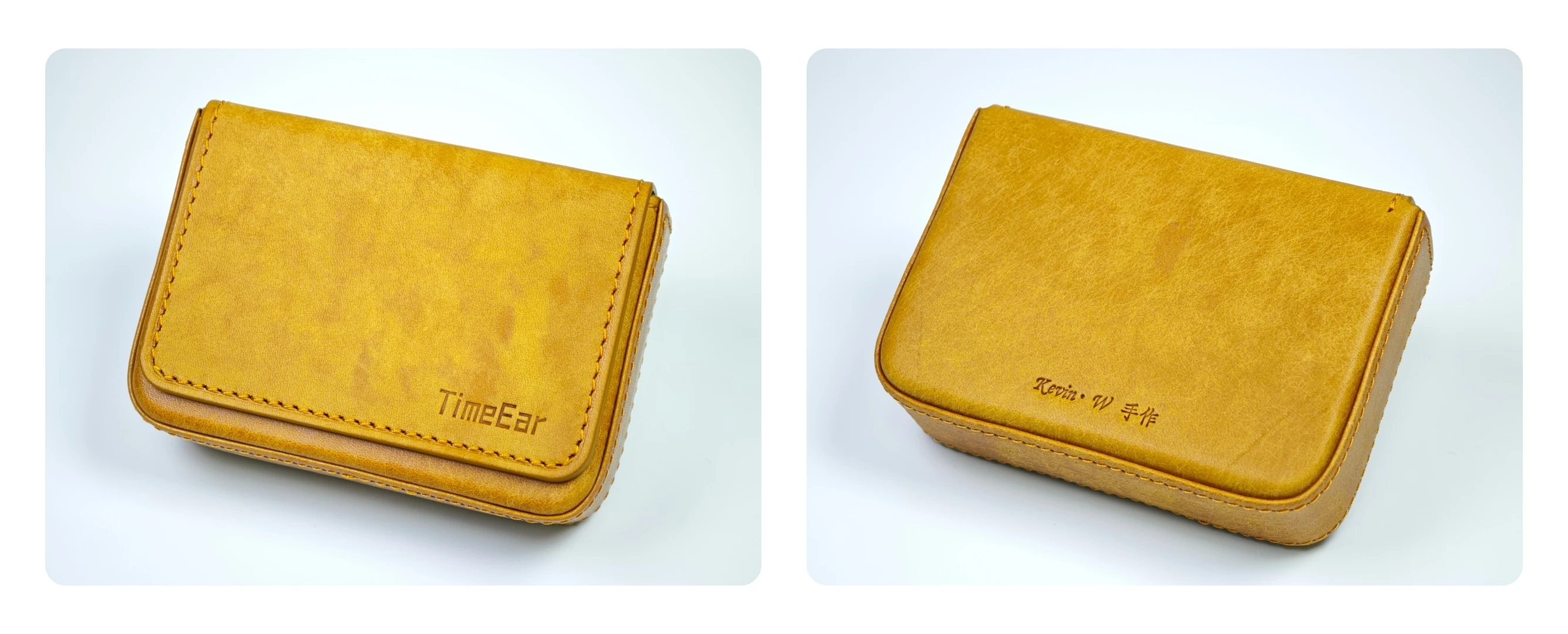

Bespoke Protection: The Kiven.W Handcrafted Leather Case.

To protect the NH60, we partnered with Kiven.W, a master artisan and fellow audiophile renowned for his bespoke leatherwork. Each flagship set includes a handcrafted genuine leather case, designed with the same obsessive attention to detail that characterizes the world's finest audio accessories.

A Tribute to "Glorious Years."

The spirit of the NH60 is captured in the semi-cursive calligraphy of Professor Lou, an esteemed calligrapher and audio enthusiast. He has personally inscribed the name "Nianhua"—or "Glorious Years"—on our packaging. In Chinese culture, Nianhua represents those rare, luminous moments of hope and memory that define a life. With the NH60, TimeEar invites you to revisit those cherished moments, translated through the timeless language of music.

Precision Tuning: Custom Acoustic Foam by Inoue.

In the world of open-ear audio, the foam is the final acoustic filter. We include six pairs of specialized foam nets from Japan’s Inoue Corporation, each chosen for its specific density and thickness. These allow you to fine-tune the low-frequency response and comfort levels, ensuring the NH60's diffusion perfectly matches your personal preference.

Specifications

·Model: NH60
·Frequency Response Range: 20Hz-20Khz
·Impedance: 60Ω
·Sensitivity: 109dB
·Driver Type: 14.2MM Diameter Short-Stroke ·Dynamic Driver
·Diaphragm Material: Magnetron Sputtered Niobium-Plated Alloy Ceramic Diaphragm
·Voice Coil: 27μm Pure Copper Voice Coil from Daikoku, Japan
·Cavity Material: Titanium Alloy
·Cable Material: 5N Single-Crystal Copper Silver-Plated Coaxial Cable
·Cable Length: 4-Strand 120CM
·Connector: 3.5MM & 4.4MM Gold-Plated ·Replaceable Connector
·Weight: 26.2g

·It is recommended to use a flagship player or desktop headphone amplifier to fully drive the high-impedance voice coil.

·It is recommended to use the official matching acoustic foam to prevent debris from entering the headphone sound outlet mesh.
