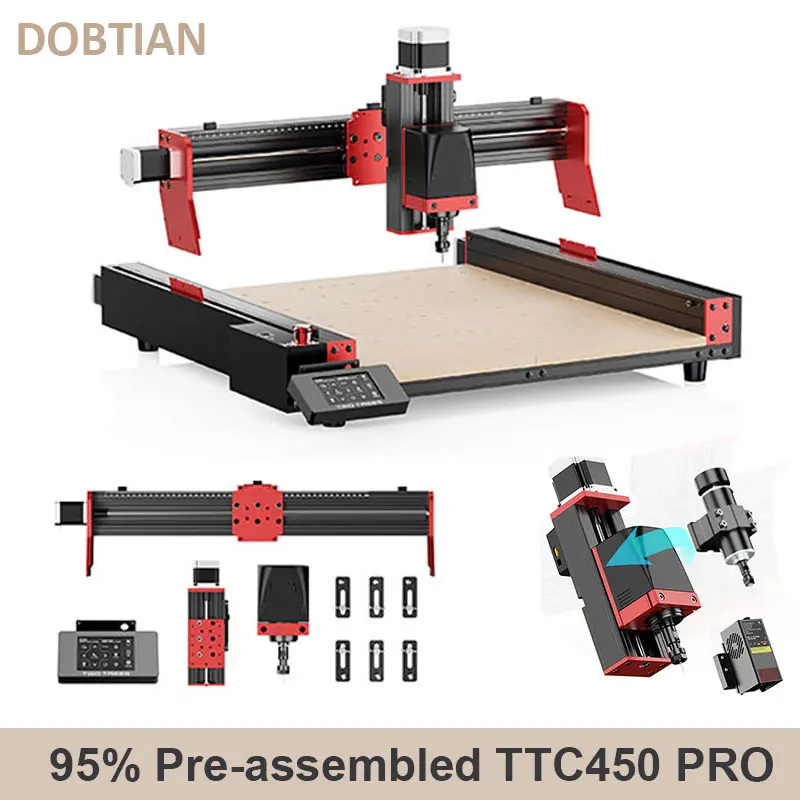

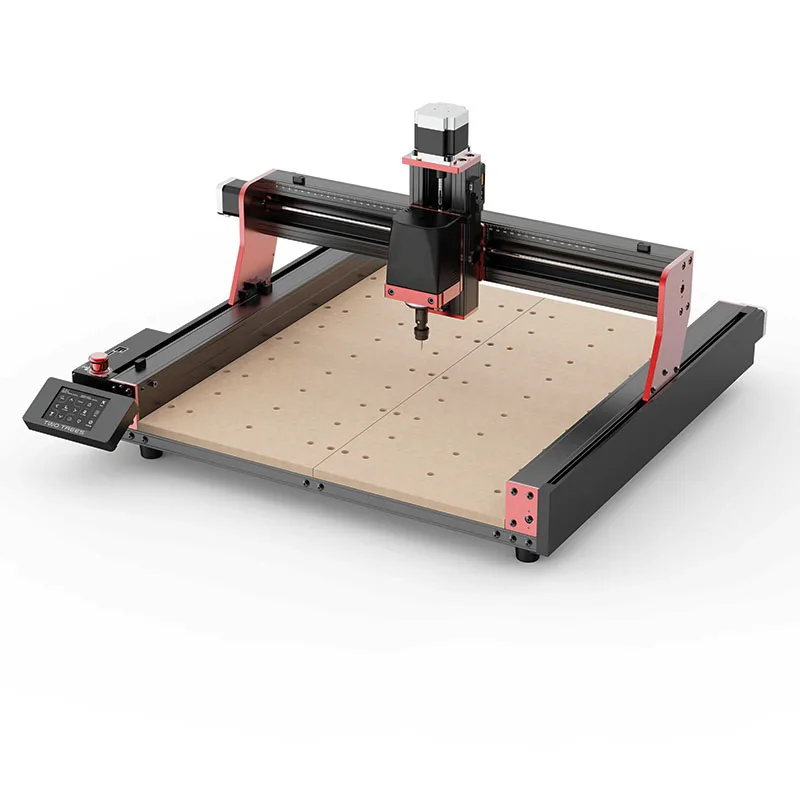

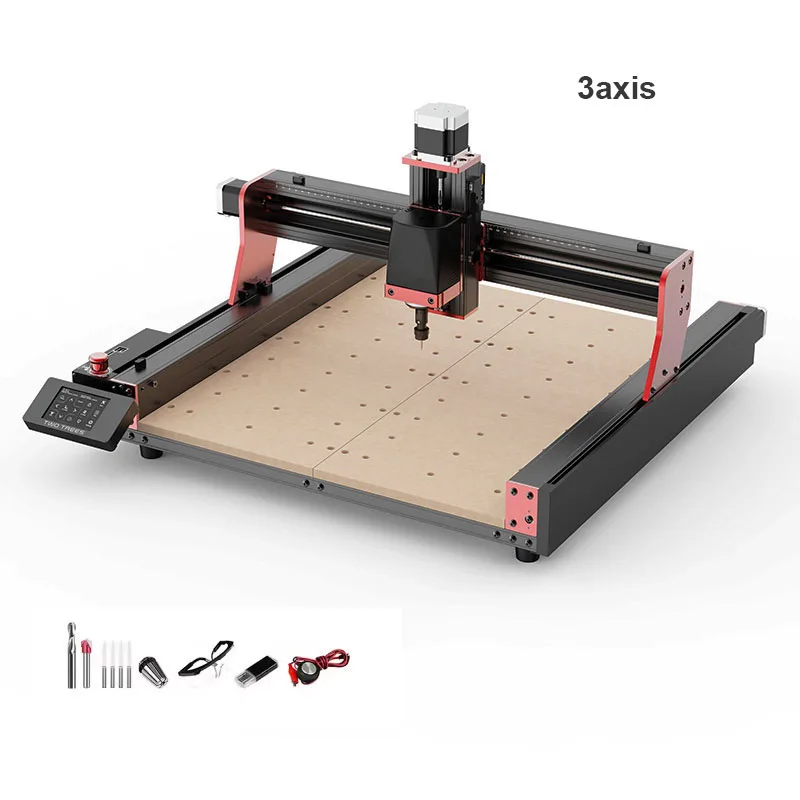

TTC450 Pro CNC Router Machine 4 Axis For Laser Engraving Cutting and cnc Machine GRBL Control Woodworking DIY Creation

Model:TTC450 Pro

Color:Black & red

Machine material:Aluminum Profle+ Plastic

Leadscrew Size & Type:T8 2mm pitch,4mm lead 5 start acme lead screw

Height adjustment method:Anpassung des Hubmoduls(automatisch)

Machine size:742*689*413mm

Engraving size:460*460*80mm(18.1in*18.1in*3.14in)

XY axis positioning accuracy:0.05 mm

Stepper motor:A4988,1.3A/17HS8401S,NEMA23 20mN.m

Engraving precision：±0,05

Engraving speed:800 mm/min

Spindle:80V.8000RPM / 500W.12000RPM

Engraving method：USB connection、 Wifi-2.4G Hz

Screen：4.3-inch touch color screen

Carving material：Plastic, soft aluminum, wood, acrylic, PVC,PVB and other soft materials

Software recognitionformat：NC, DXF, BMP, JPG, PNG, GCODE

Continuous working hours：6 hours

Engraving mode：Grafikgravur, Dateigravur, Scangravur,Konturgravur, Pixelgravur

Control panel：TWO TREES CNC KIT V1. 3

language Chinese:English, Italian, French, German, RussianPortuguese, Spanish, Japanese, Korean,

TurkishPackage Size:760*740*213mm

Package weight:20.58kg

Power Supply:24V5A120W

Operating System:Windows. MAC

Support CAM Software:Candle, Carvco, Artcam, Easel

Working EnvironmentTemperature:0-40 degrees Celsiushumidity 20-60%RH

Product characteristics

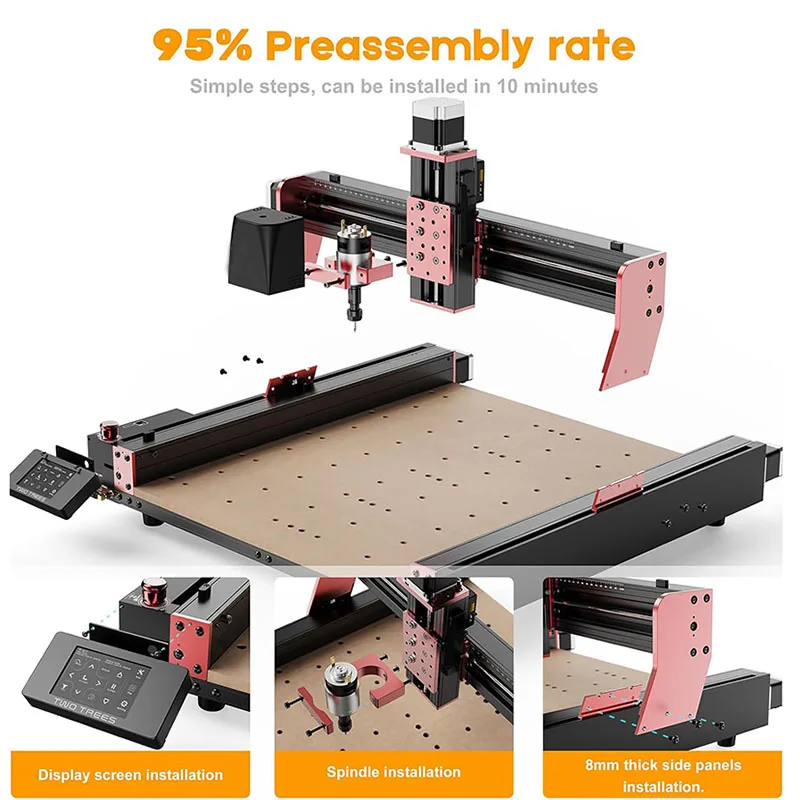

Structure Upgrade: XYZ limit switches are fully upgraded to ensure safe operation, while the X-axis CNC plate is thickened to 8mm to enhance durability and stability.

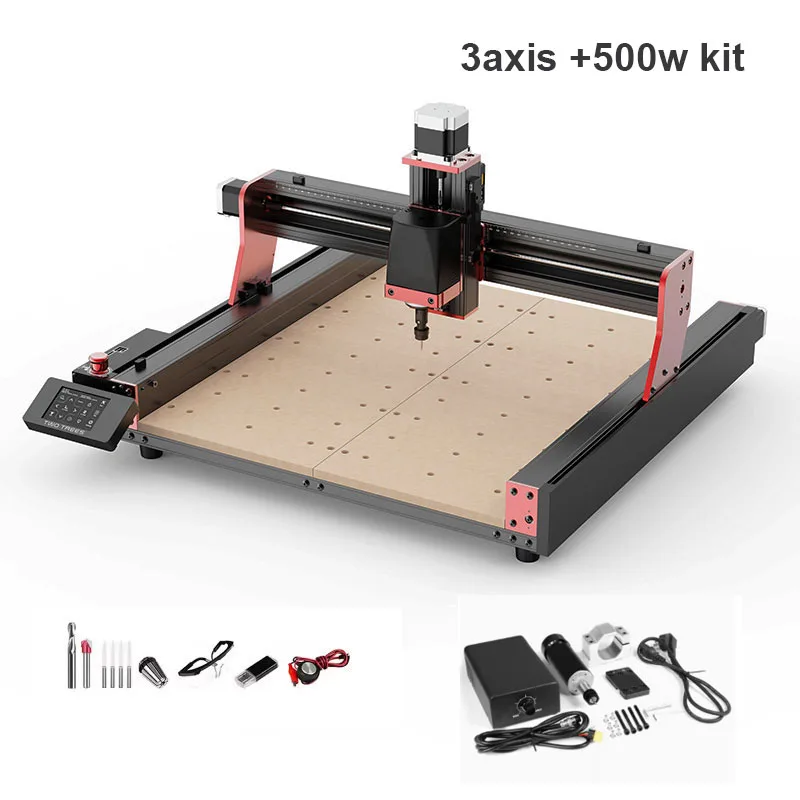

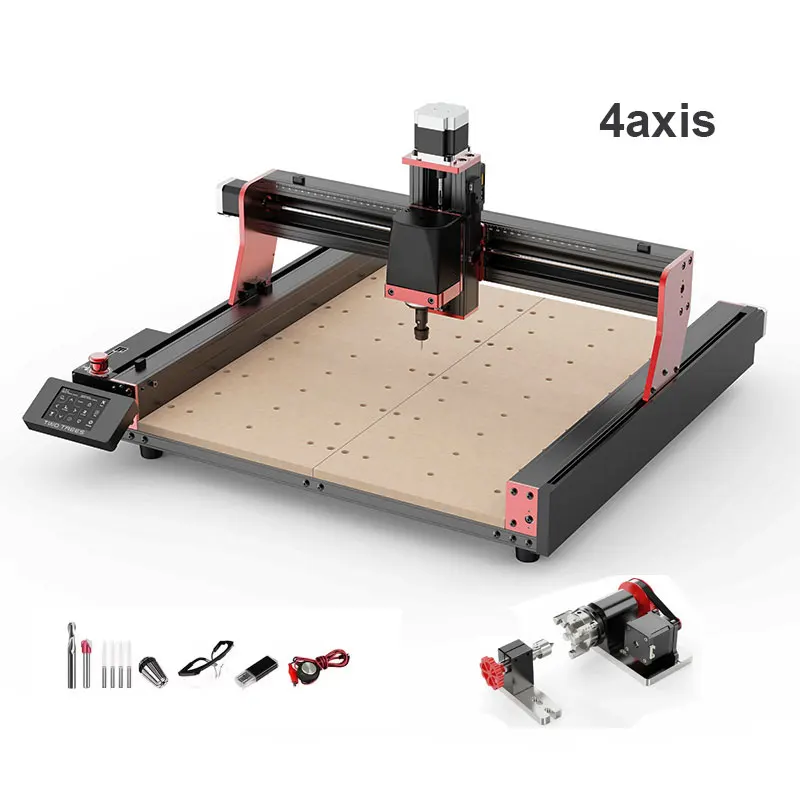

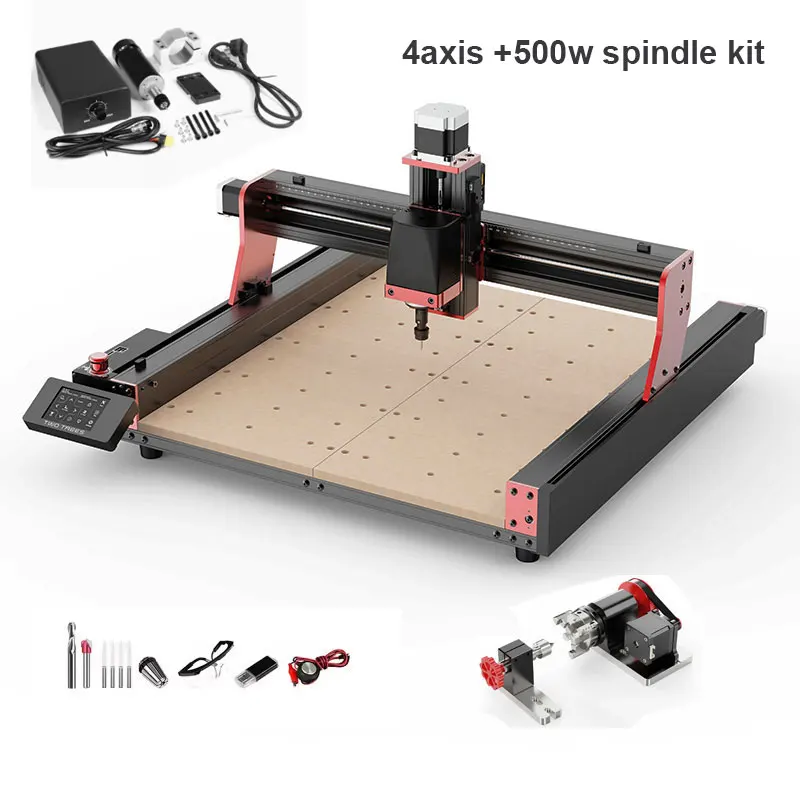

Compatibility Upgrade: The module of the TTC450 PRO CNC machine has been upgraded to compatible more kit. It supports not only the 4th-axis rotary module kit, 500W Spindle, but also the trimmer router,20W lasermodule. With these kits, your woodworking creations will be much more manageable!

Upgrade: The upgraded X-axis motor 17HS6001 provides more powerful torque and ensures stable operation.

Large working areaThe active working area is 18.10” x 18.10” x 3.14” (460 x 460 x 80mm). It is large enough for daily woodworking

Precision Dual Brass Nuts - Smooth and Accurate Movement.

Wide Application: The TTC45 PRO CNC Wood router is compatible with GRBL software and supports systems such as windows XP/7/8/10 and Mac OS. It is suitable for engraving and carving stainless steel, wood, aluminum, brass, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, PVC, and more.
