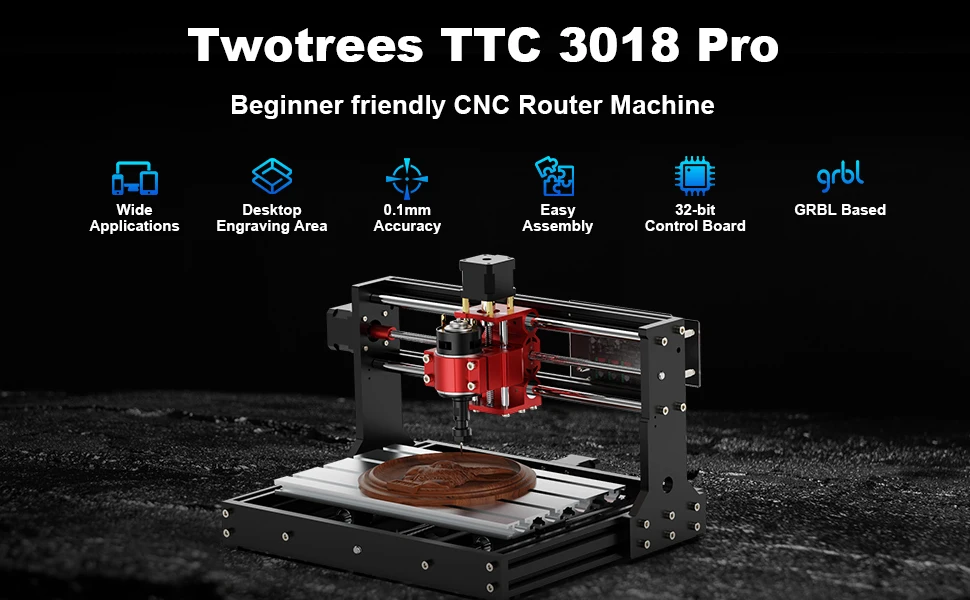

Twotrees TTC3018 CNC wood carving machine, DIY tools for metal, plastic, acrylic, PVC, and wood boards. For the 3018 Pro version

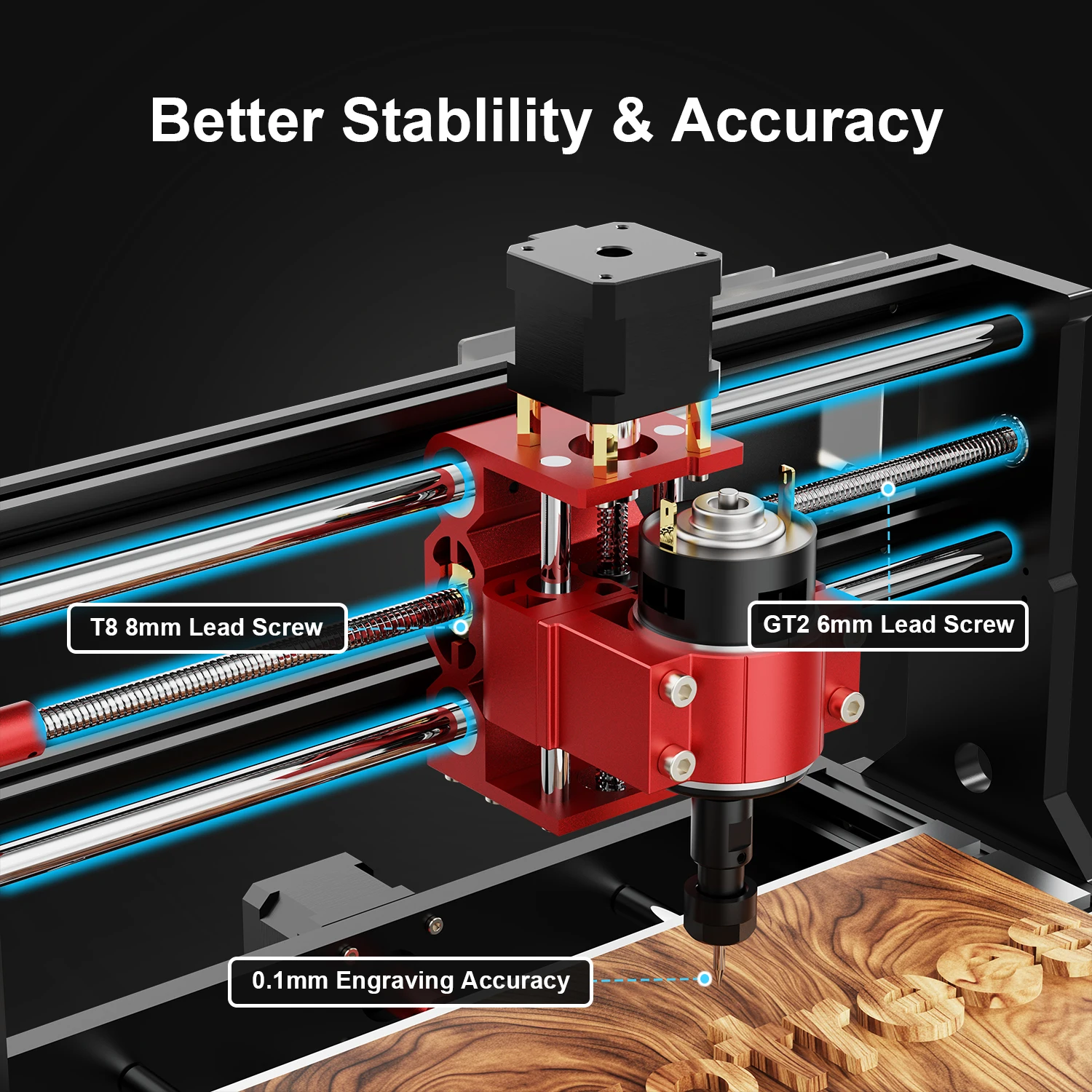

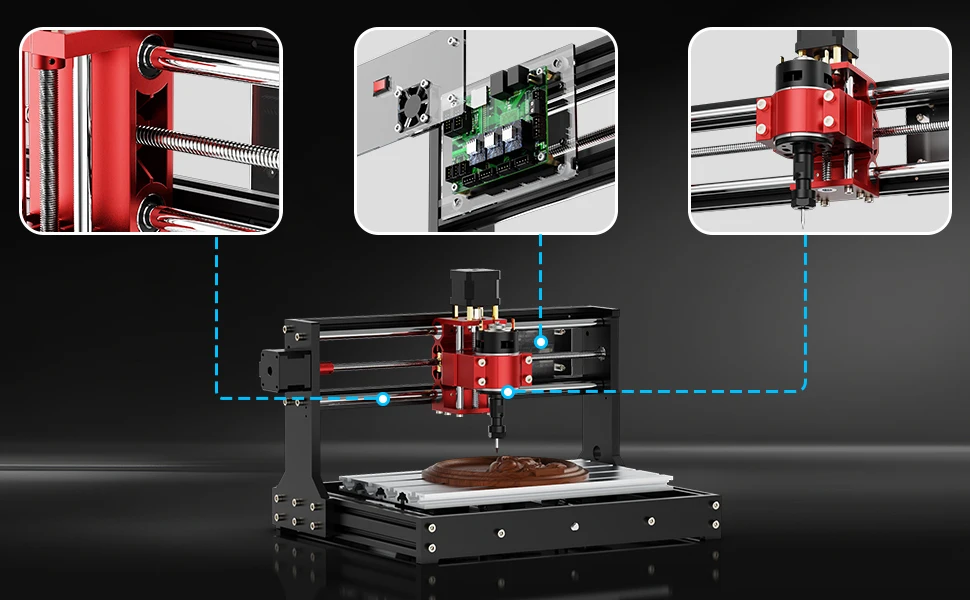

The Z-axis of TTC3018 Pro adopts a metal structure.

What are the advantages of metal Z-axis?

1. Stability

The rigidity of metal Z-axis is significantly enhanced compared to injection molded parts, making the equipment run more smoothly and effectively ensuring machining accuracy (most of the 3018 models on the market are cheaper injection molded Z-axis).

2. Durability

The wear resistance and aging resistance of metal materials are far superior to those of plastic parts, which can significantly extend the service life of equipment and reduce customer maintenance costs

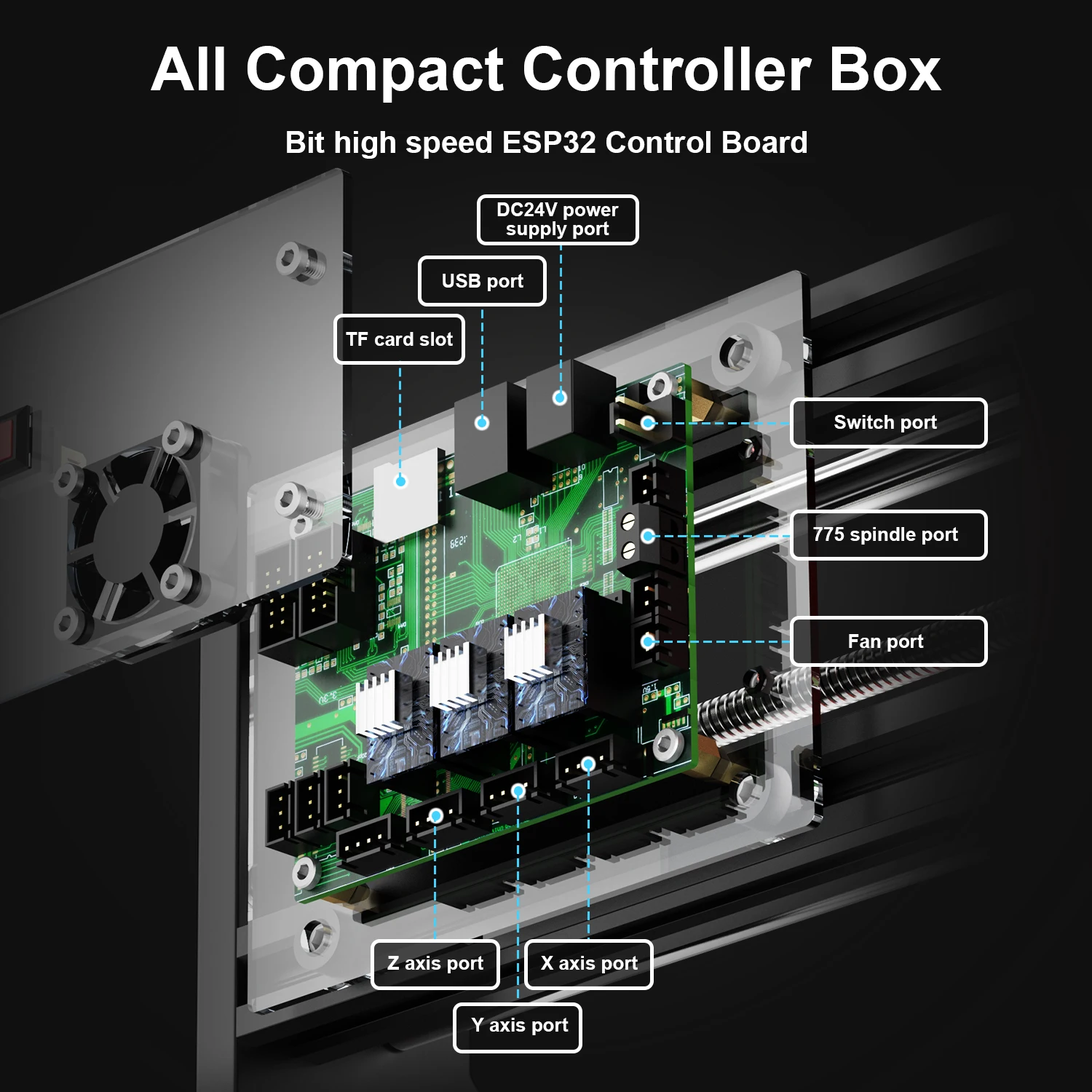

1. Powerful performance: 32-bit STM32 processor, supporting SD card and external display control.

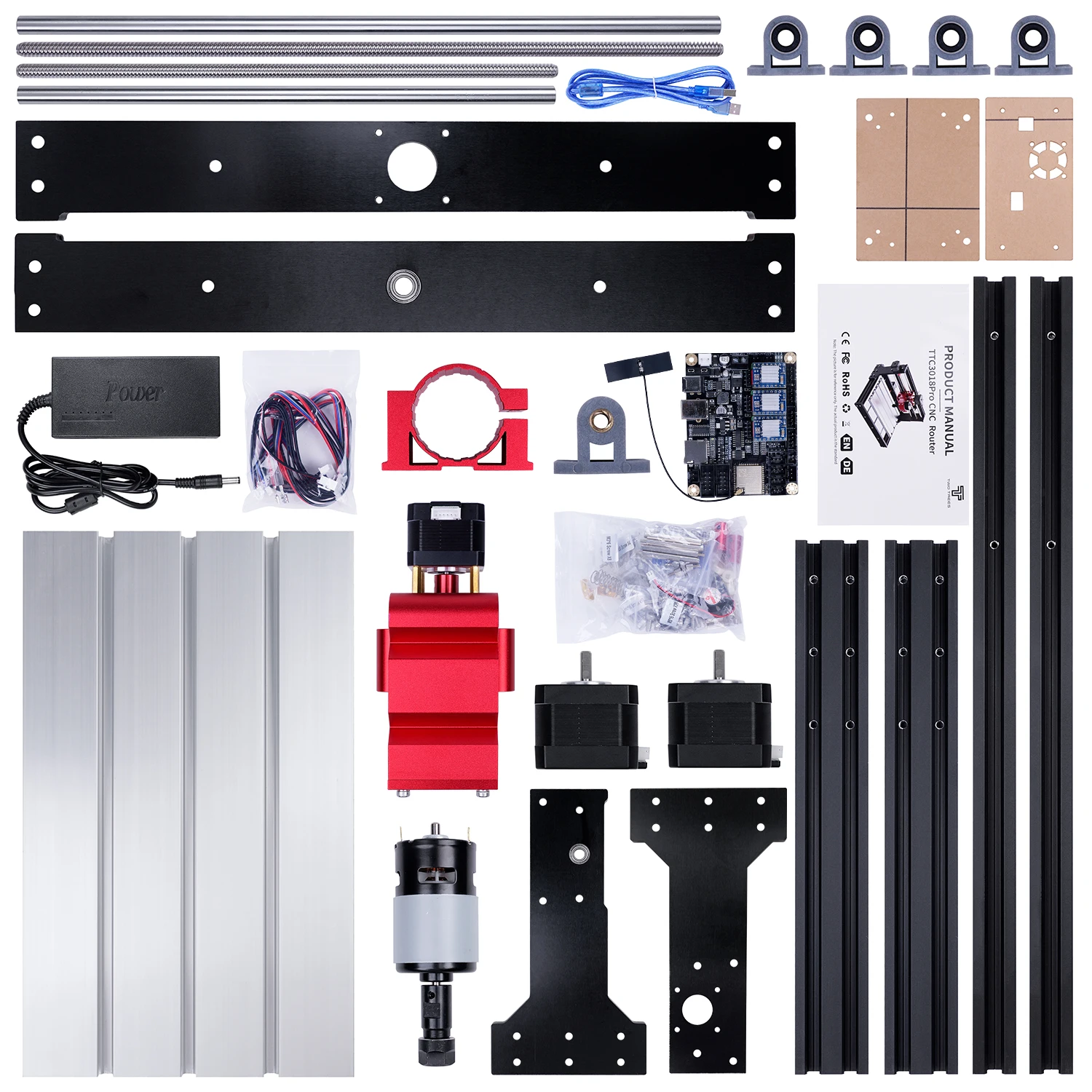

2. Suitable for DIY: Designed specifically for amateur enthusiasts and beginners, easy to assemble and operate.

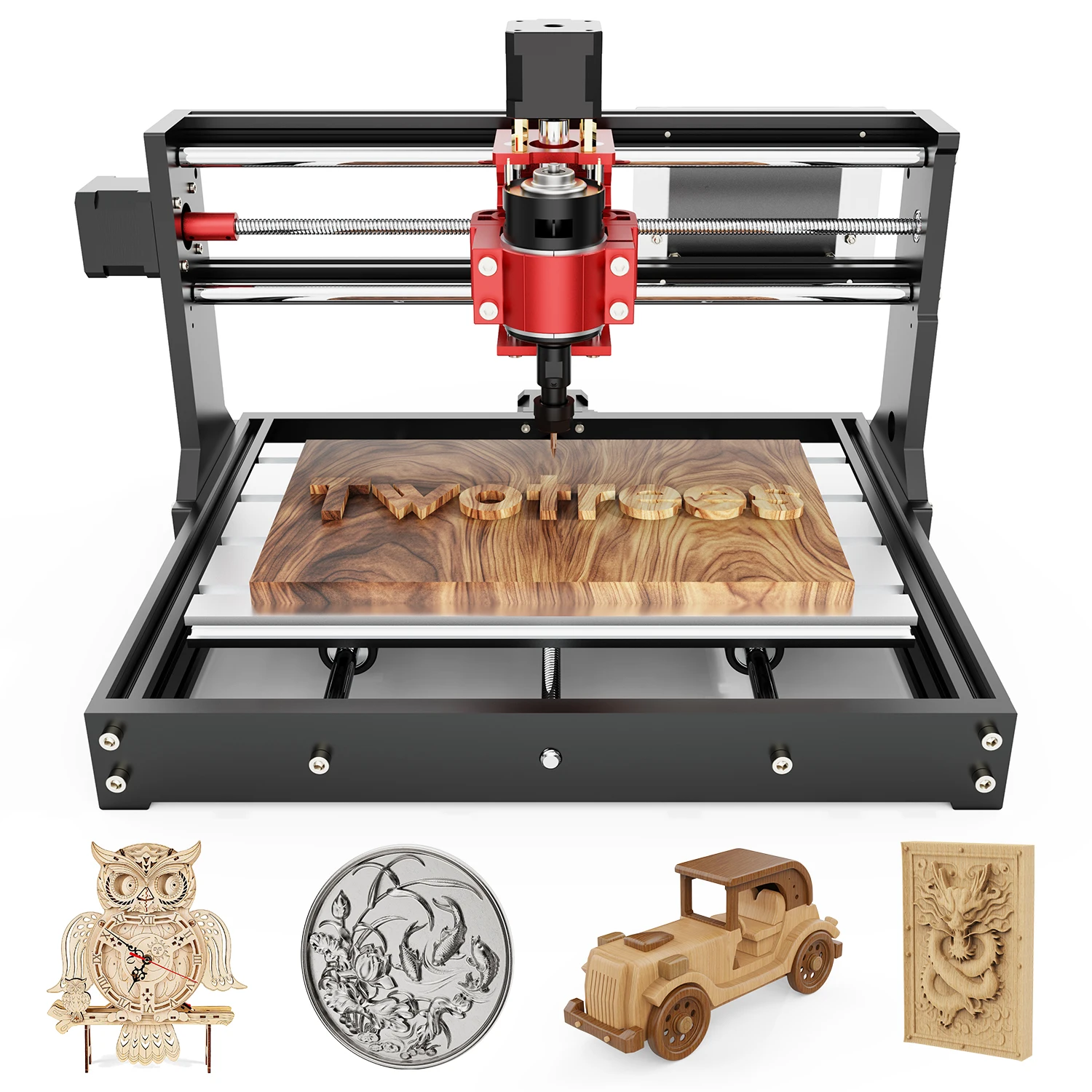

3. Multiple materials: can cut plastic, wood, acrylic, PVC, PCB, etc.

4. Precision engraving: 30x18x4.5cm working area, 775 spindle motor, DC24V, Nema17 stepper motor, can obtain accurate results.

5. High compatibility: The USB interface and GRBL control system ensure easy connection and operation.

6. Portable and lightweight: Small in size, light in weight, easy to carry, and convenient to use anytime and anywhere.

Name: CNC Woodworking Carving Machine

Model: TTC3018Pro

Molding technology: CNC

Main color: Black+Red

Main materials: aluminum+electric wood+acrylic

Shell material: Aluminum

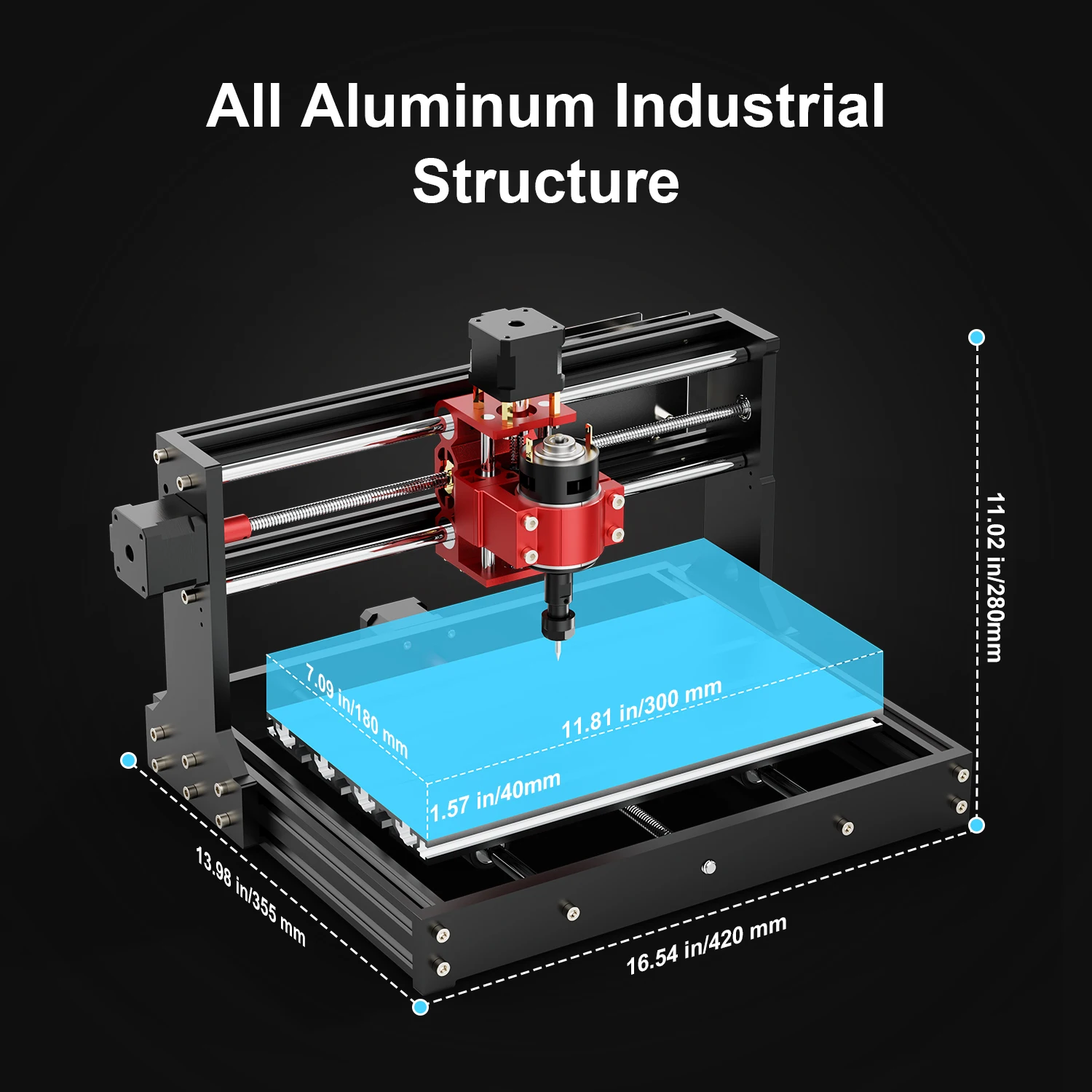

Product size: 420mm X 355mm X 280mm

Scope of work: 300mm X 180mm X 40mm

Support tool diameter: 0.5MM to 7mm (ER11 spindle head)

Compatible carving materials: wood+plastic+aluminum plate+brass+acrylic

Net weight of product: 6.8kg

Product gross weight: 7.4kg

Packaging size: 485X235X130mm

Power supply mode: 12-24V 5A power adapter

Control board input voltage: 24V

Overall power consumption: 33W

Standby power consumption: 5.5W

X/Y axis positioning accuracy: 0.1mm

Z-axis positioning accuracy: 0.1mm

Carving accuracy: 0.1mm

Maximum carving speed: 1500mm/min

Spindle motor: 775 brushless motor (standard)

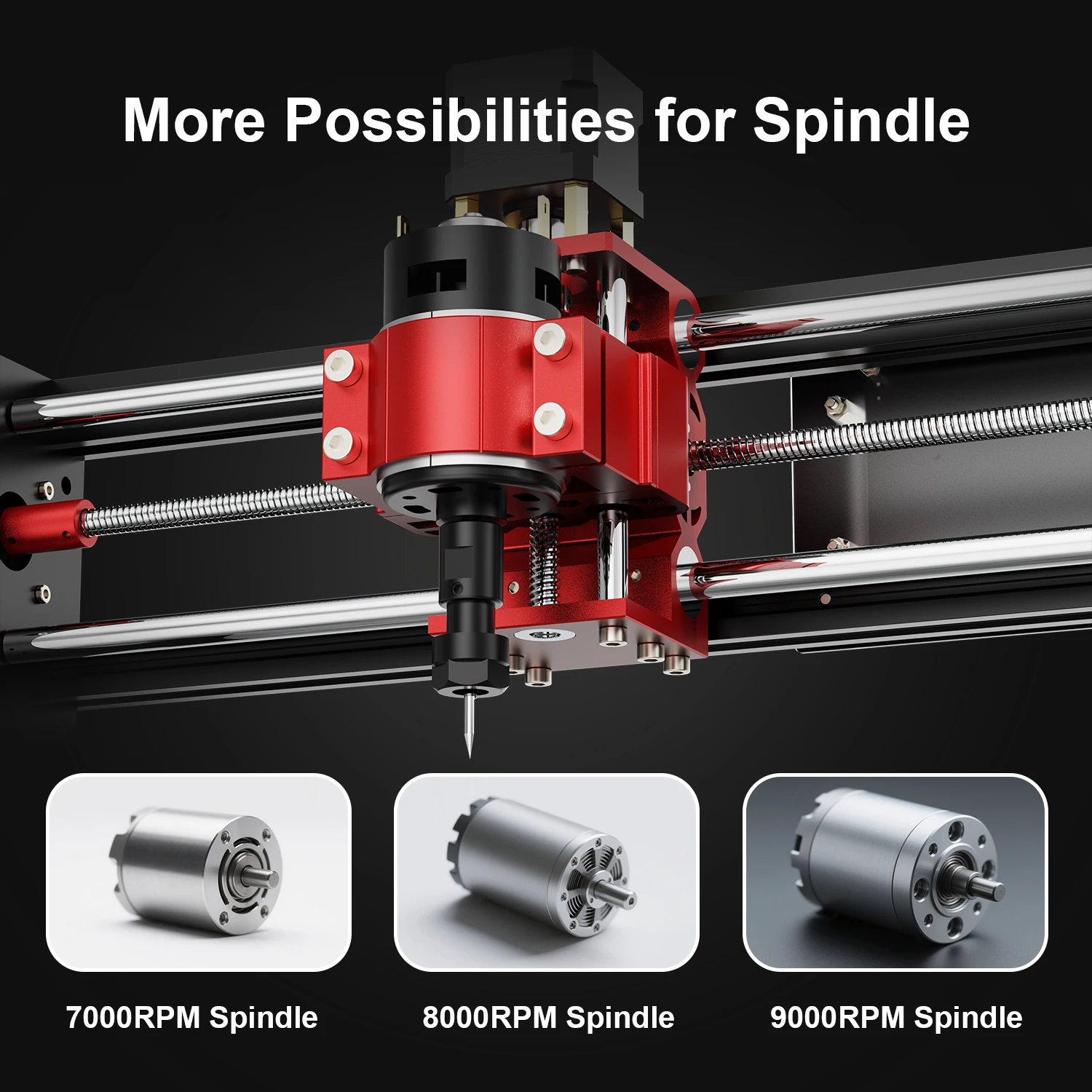

Spindle speed: Depending on the installation, the spindle speed range is 7000-9000 RPM

Tool size: Supports 0.5-7mm diameter tools based on the inner hole size of the ER11 spindle head

Carving layer height: Non metal 0.1mm-20mm, metal 0.1mm-0.2mm

Compatibility parameters

Programming software: Artcam, Fusion360, EASEL, Carveco Maker, etc.

Supported systems: Windows XP/Win 7/Win 8/Win10 Home Edition

Software language: Chinese/English/Spanish/German/French/Russian/Portuguese/Italian/Japanese/Korean/Turkish

Program support format:. nc/. Gcode

Security parameters: Security authentication CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC Sdoc/FCC-ID

Environmental parameters: Optimal carving environment temperature 0 ° -40 ° C
