Upgraded DIY Computer Case PC Frame Desktop Open Chassis PC Test Bench Support EATX/ATX/MATX/ITX Motherboard And 12CM/14CM Fan

Upgraded DIY Computer Case PC Frame Desktop Open Chassis PC Test Bench Support EATX/ATX/MATX/ITX Motherboard And 12CM/14CM Fan

Specifications:

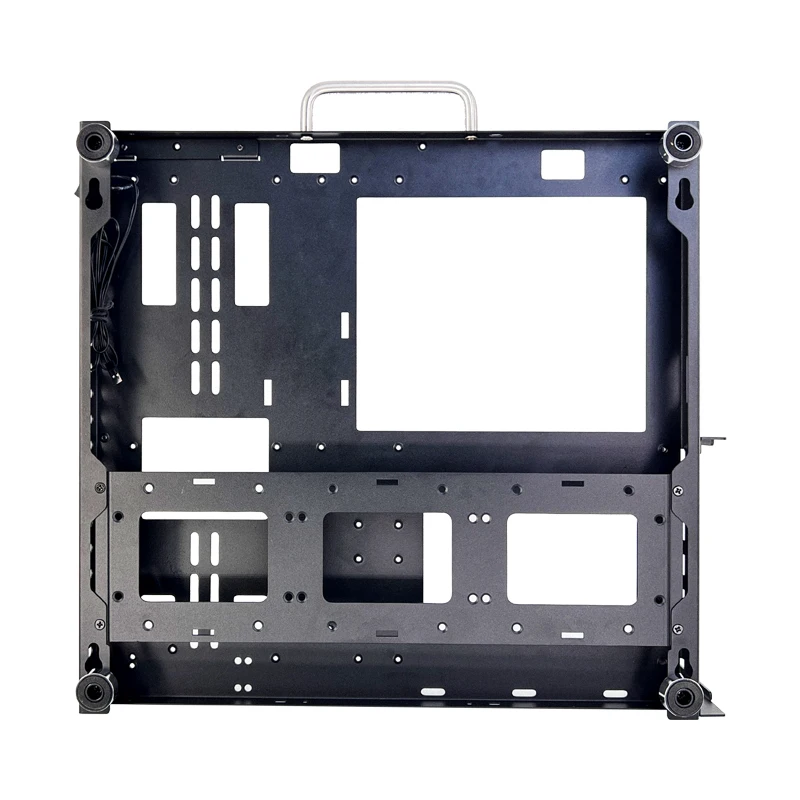

1: Product Size:365X332X150MM

---The product uses 1.0mm and 1.5mm thick SPCC steel with black sand-textured paint finish

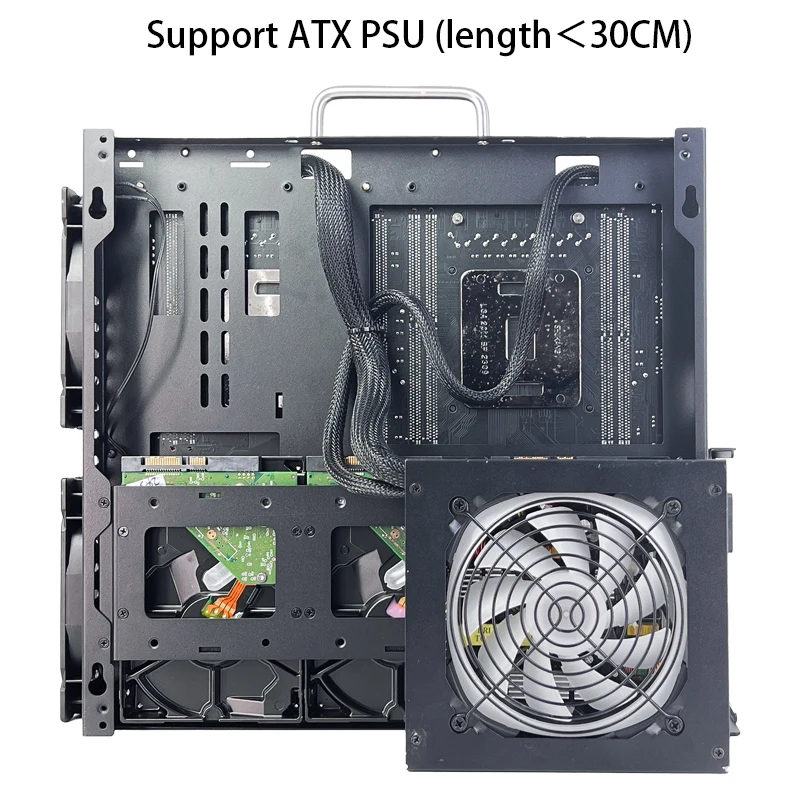

2: Supports EATX/ATX/MATX/ITX motherboard, and support ATX PSU(15CM length when PSU on the front)

3: Supports graphics card lengths up to 340MM (excluding graphics card mounting bracket length)

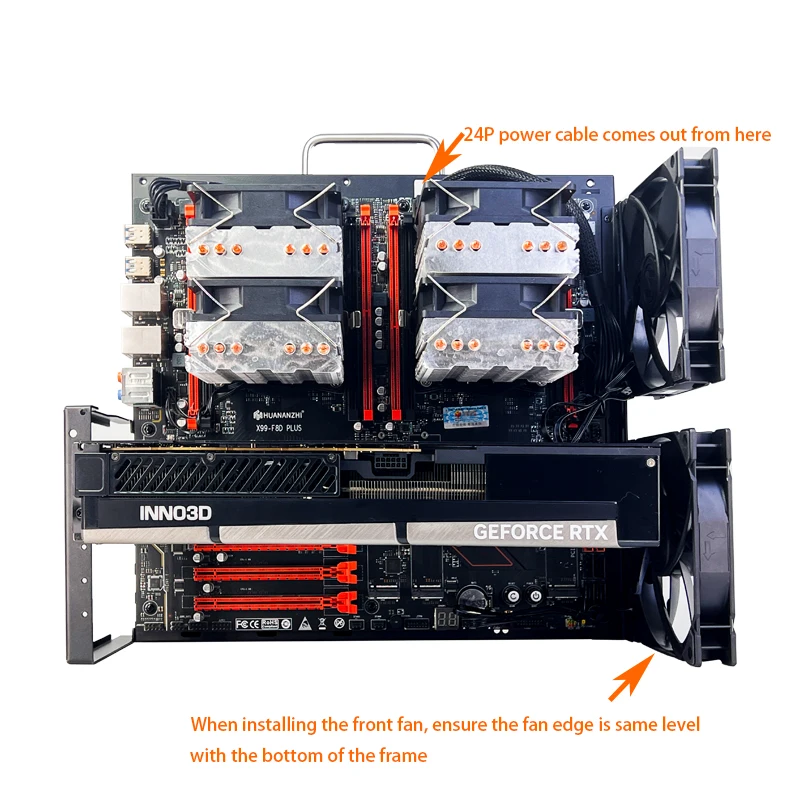

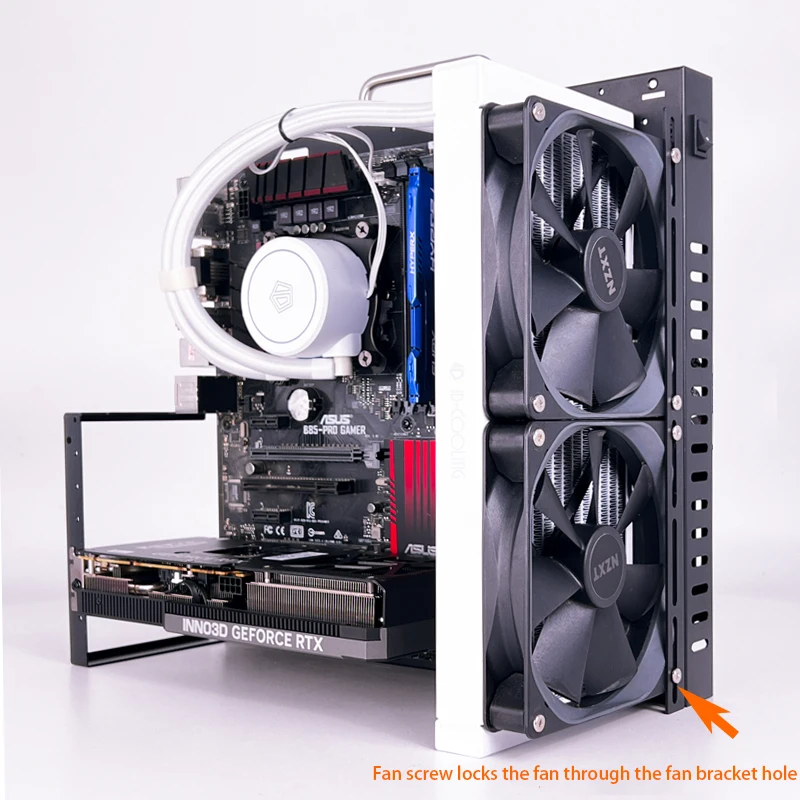

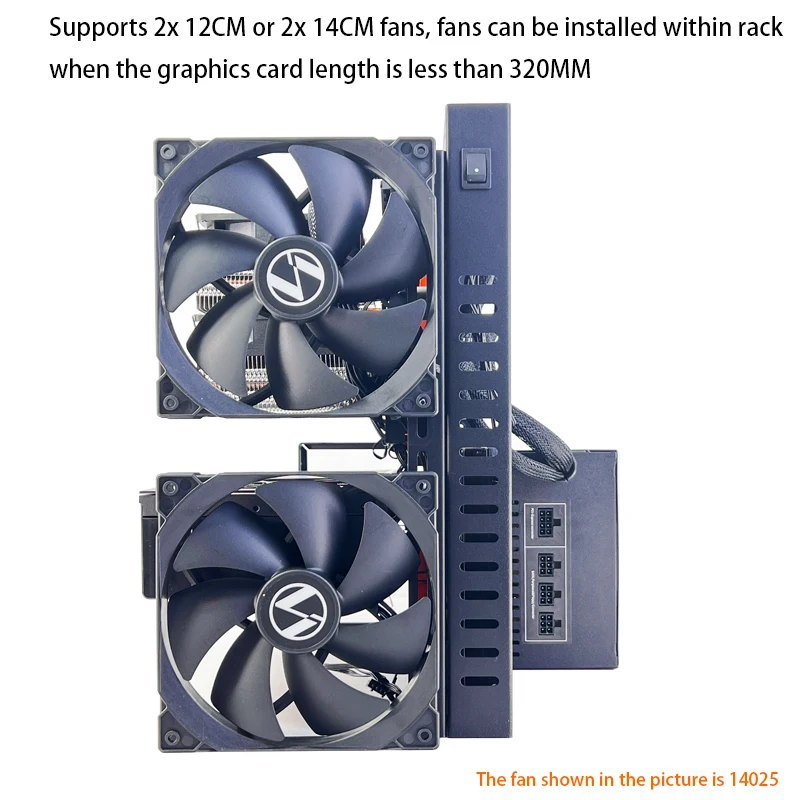

4: Standard multifunctional fan bracket, which can hold 2x12CM or 2x 14CM fans or water cooling(without fan, fan screws and

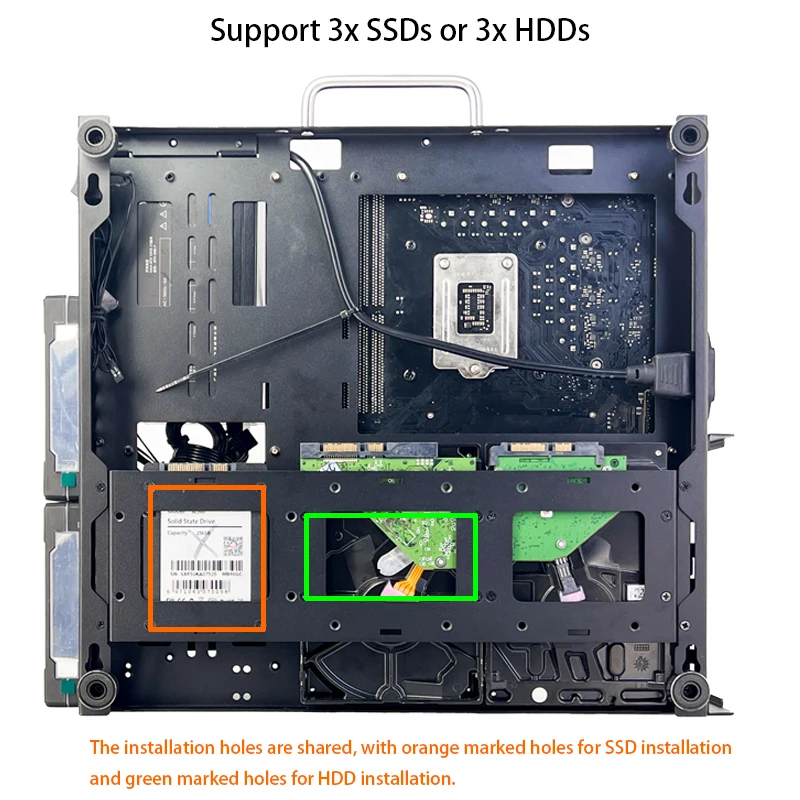

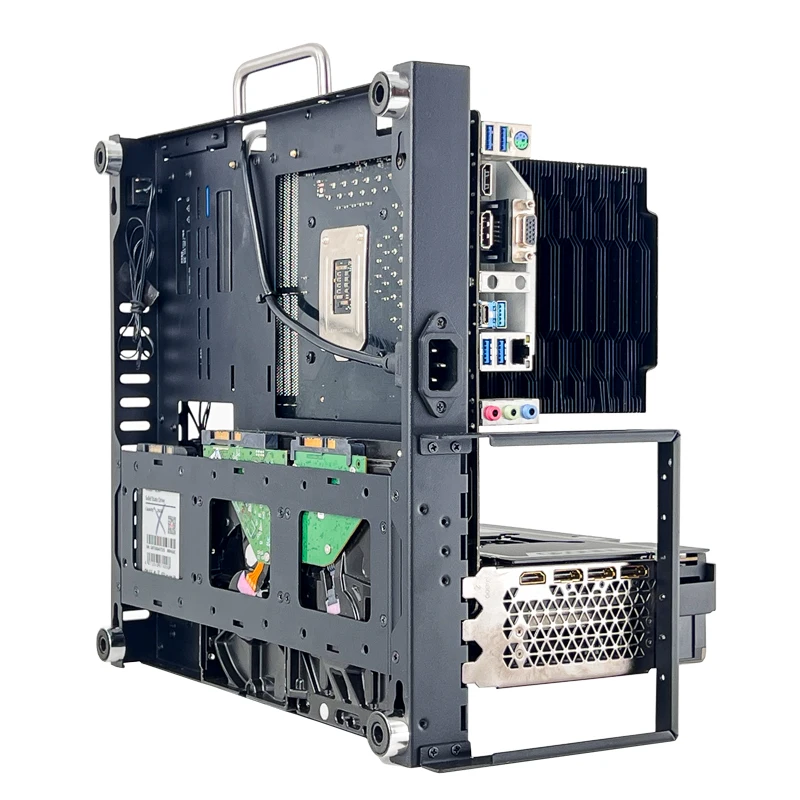

5: The hard drive rack supports 3x SSDs or 3x HDDs (shared holes)

6: Standard stainless steel handle for portable mobility

7: The frame goes vertical or horizontal for both utility and aesthetics

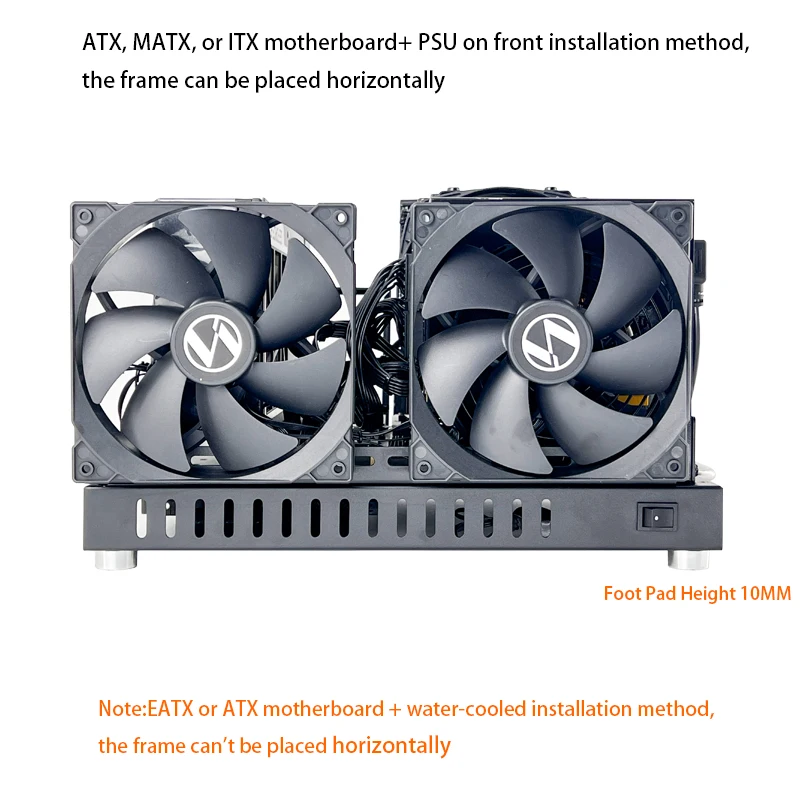

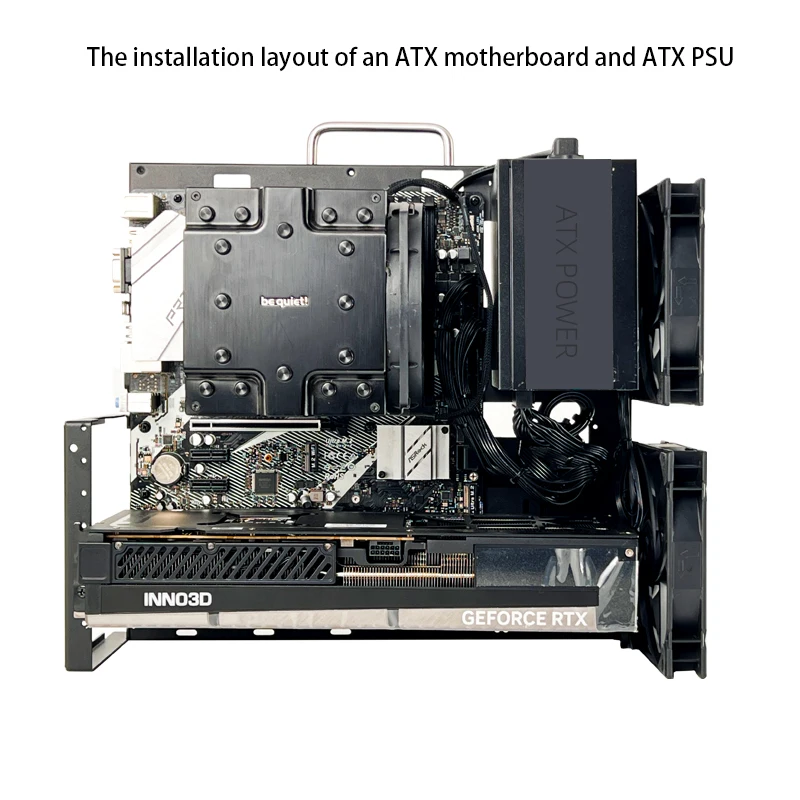

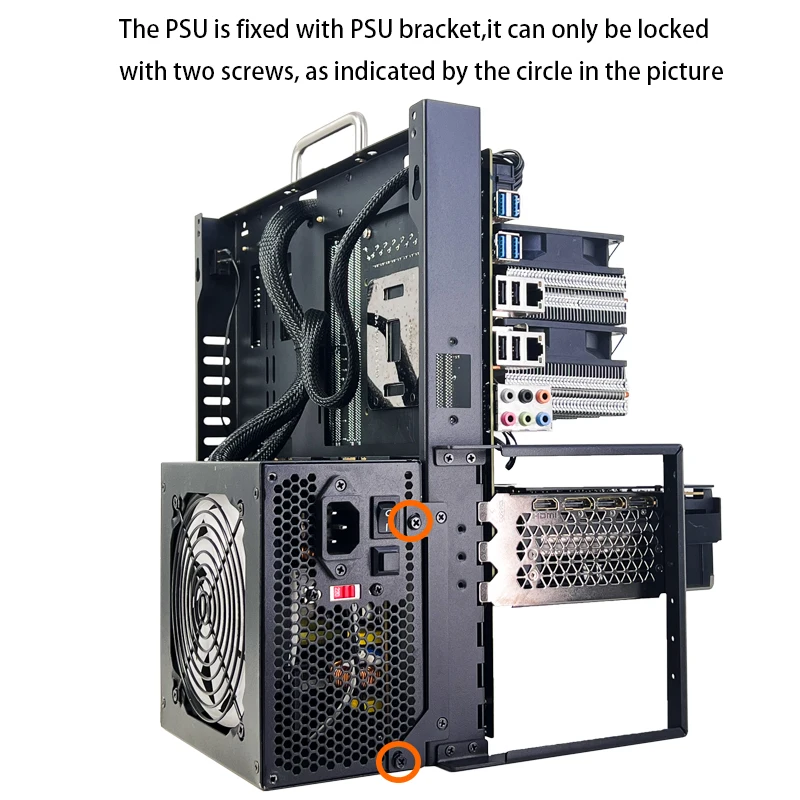

---When using ATX motherboard,PSU on the front, it can be used both vertically and horizontally

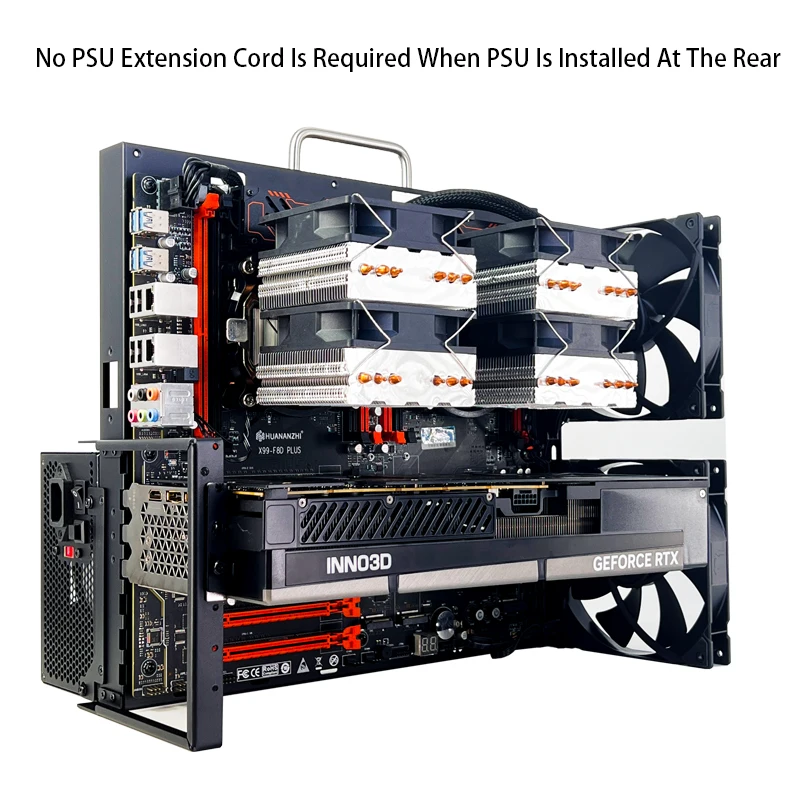

---When using ATX motherboard+240/280 water-cooled,PSU on the back, it can only be placed vertically and not horizontally

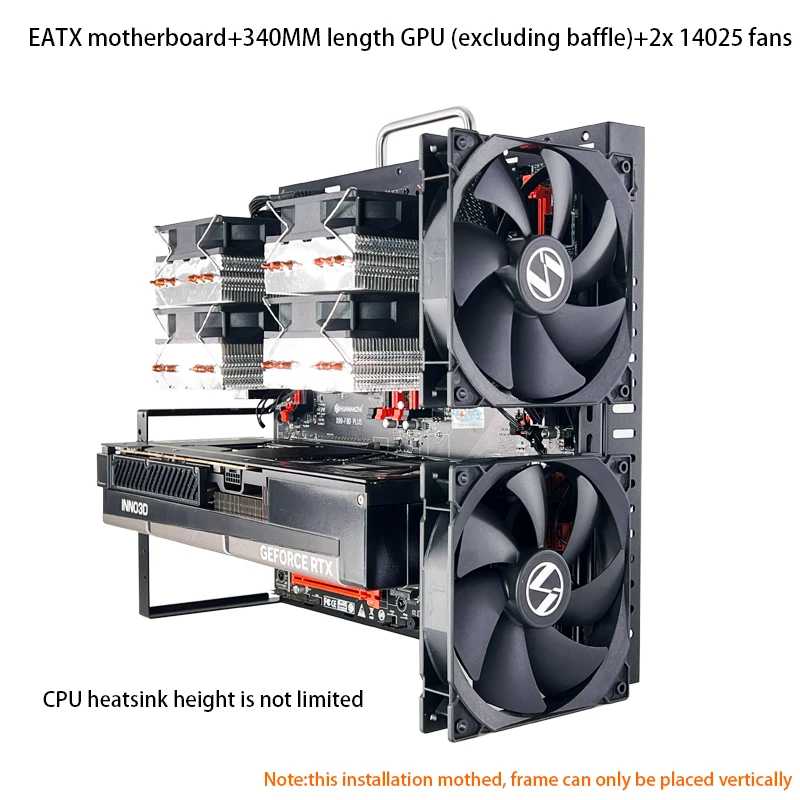

---When using EATX motherboard, it can only be placed vertically, not horizontally

8: Standard frame screws, power switch cable, and installation instruction

9: Packaging size: 365x45x365MM/1PC, gross weight: 2.5KG/1PC

                              380x300x390MM/6PCS, gross weight 16KG/6PCS

Package Include:

ATX Motherboard Frame (unassembled)*1pc

Notes:
Actual color may be slightly different from the image due to different monitor and light effect.
Please allow 1-3cm/0.39-1.18inch deviation due to manual measurement.
