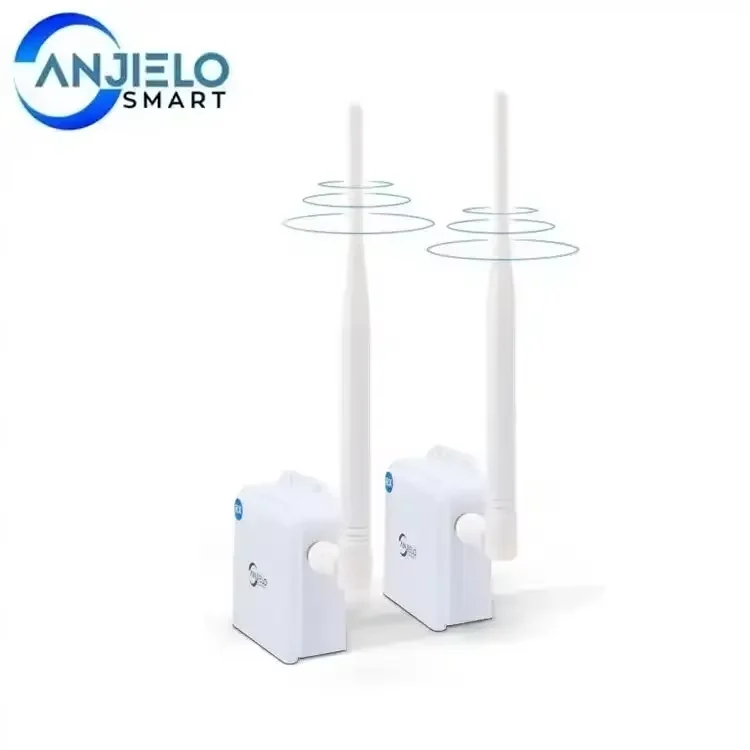

WIFI HaLow 2-Pack Wireless Access Point with Bridge Kit Outdoor Point to Point Connection Long-Range Upto 1 KM for IP Camera

Specifications:

Connectivity: Wi-Fi Halow security protocol

Transmission Distance: Max 3000ft with the 1080P video

Penetration Ability: 3-4 concrete walls

Power: 5V/1A DC

Operation Temperature: -5°F-120°F (-20°C-48°C)

Size: 300mm*190mm*75mm

Antenna: length 19cm with 2dbi gain

Warranty: 12 months Parts and Lifetime Purchase Protection

FCC ID: 2AXPI-TX-AH-R900ATR

How to Use:

1. Plug in the antenna

2. Drill the hole and screw the Scenes Air on the wall

3. Plug in the power supply

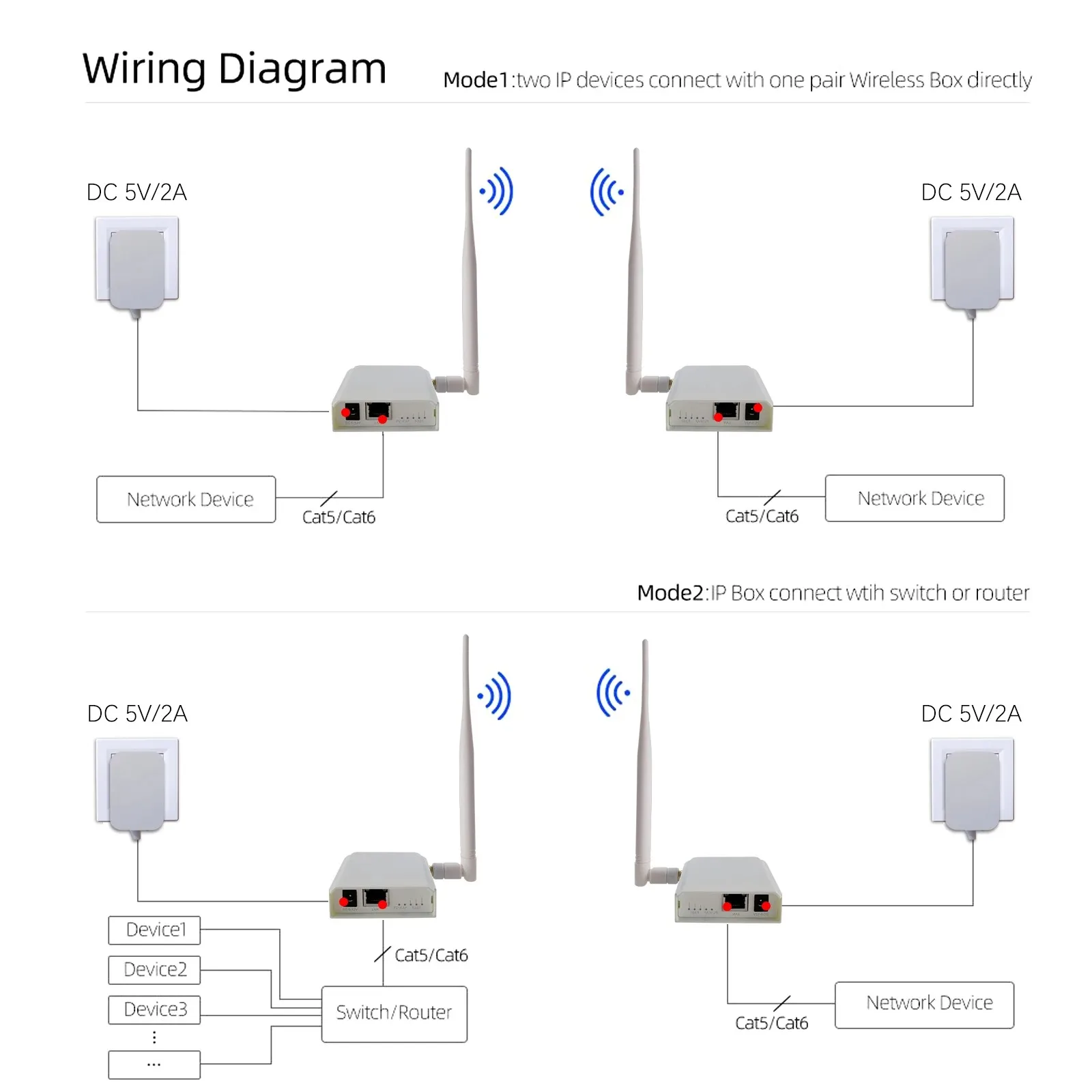

4.1 Pack connects to the IP camera, the other pack connects to the network NVR, and the connection will be set up.

Note1: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Note 2: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.Description：

   The Wi-Fi Halow standard network bridge works on the 902-928MHz(760-790MHz) frequency，Please refer to the country and region frequency for details.The model is dedicated to cost-effective solutions for wireless networking applications.

   It is ideal for point-to-point signal coverage applications. Professional performance, coupled with user-friendly design, makes the model an ideal choice for both business and home users. Compare with the traditional Network bridge or the CPE, the model is the first device with an Omni-directional antenna for the 1Km signal transmission or strong penetration capability.AnjieloSmart Long Range Wireless Bridge Kit

Long Range Outdoor Wireless Bridge. Designed for transmitting wirelessly with long range. It is an alternative to a long cable between your computer and router, or NVR and Ip cameras for Security monitoring on lodges, farms, pool houses, and more, with a long distance of up to 3000ft in open space.This is a new wireless transmission equipment package, divided into two parts: AP transmitter and AP receiver. And can be freely matched, a receiver can receive up to 4 transmitter signals at the same time.

Which can transmit Ethernet equipment within 100MB, and it can transmit up to 1000 meters in the open and unobstructed. If there are obstacles or devices with large network traffic, the transmission distance may be reduced. It is worth mentioning that even if there are obstacles, the device can be transmitted in surround mode.

For example: if you place a transmitter on the 1st floor, you can use the receiver on the 8th floor to receive network signals (it depends on the number of windows).

The equipment uses a transmission frequency of 740-970MHz, which has the characteristics of long transmission distance and strong anti-interference ability.

Using an encryption algorithm, other wireless devices cannot search for the device's signal, so it is hidden

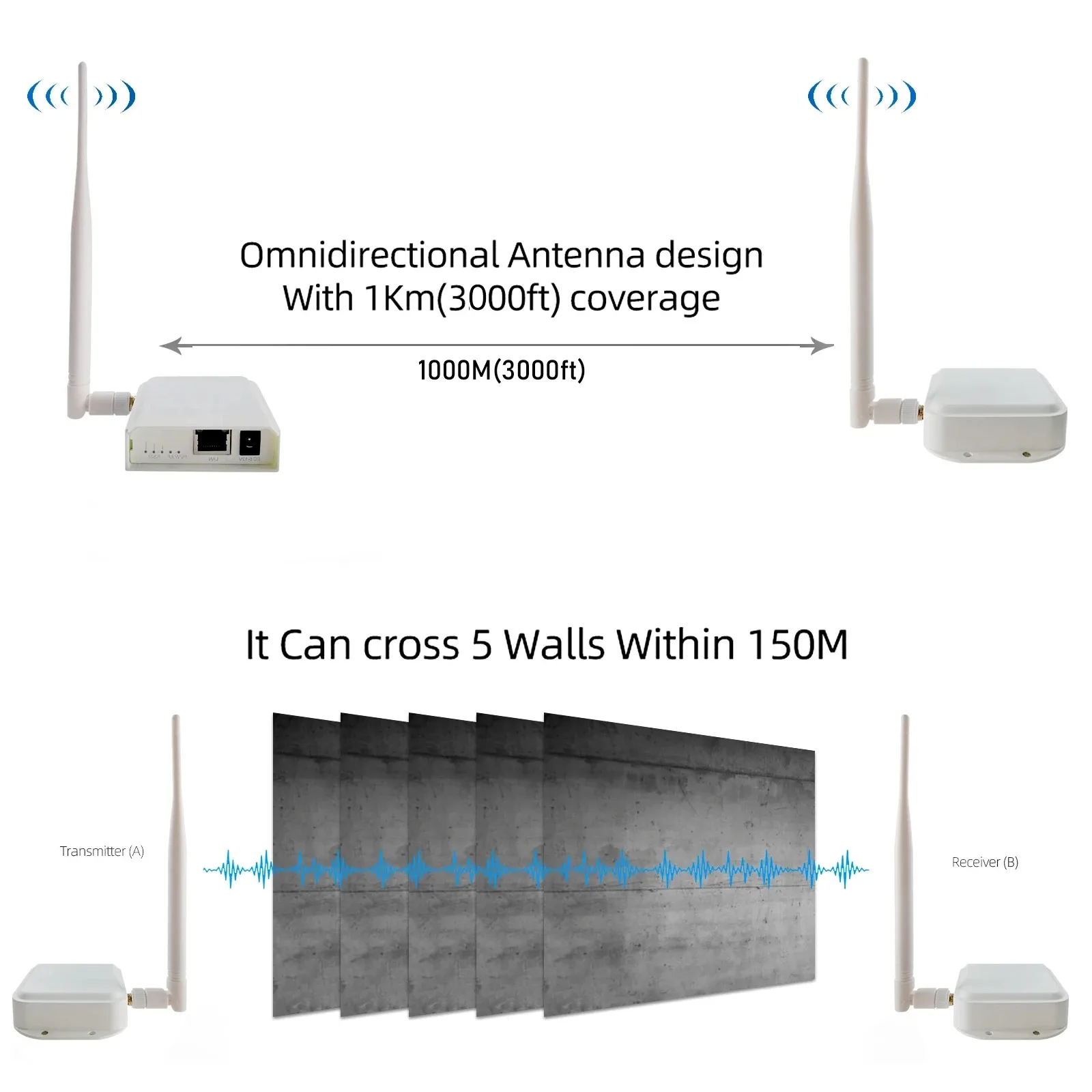

and safe. The product uses a 360-degree omnidirectional antenna design, so you don't need to adjust the position of the transmitter and receiver. Easy to install and use.Surveillance application just right:

The device can provide a physical bandwidth of 150Kbps-32.5Mbps to support low-rate sensors, such as remote wireless access control systems, etc.

The traditional 2.4GHz/5GHz wireless surveillance system can not avoid electromagnetic interference in complex environments, large path attenuation, and unsatisfactory non-visual distance transmission distance.

This equipment can solve the problem of unsatisfactory transmission distance or frequent disconnection of equipment by installing AP101. At the same time, AP101 is compatible with wired/wireless packages, flexible configuration, and one-key pairing of AP/STA mode.Wireless Bridge Kit：

1. Antenna network bridge with 3000ft max transmission distance in open space.

2. Support point-to-point connection.

3. Design for remote monitoring and wide use of the IP camera.

4. Plug and play, simple to build the connection.

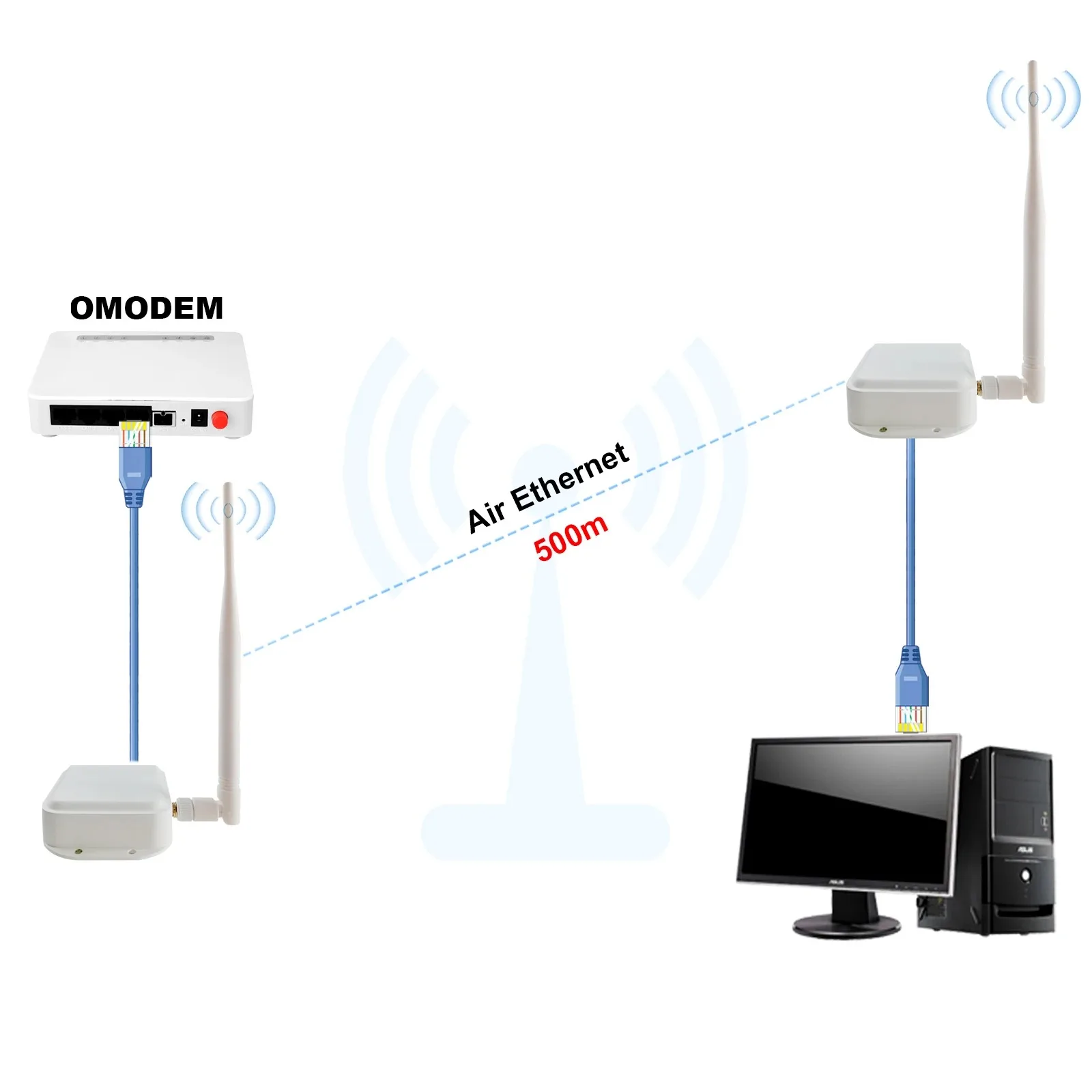

Point-to-Point Wireless Connection. Wireless wifi bridge with an ethernet port and LED display, coming with a transmitter and a receiver unit, they are pre-configured for point-to-point connection.

Fast Speed and Stable Transmission：

It performs excellently on transmission with a 906 MHz data rate and stable 1080P video signals, with an LED indicator, which let you know the signal strength.

Easy Installation：

Easy to set them up with IP cameras (cameras) and network DVR / NVR. Plug and play, easy to build the connection, without complex wiring work.

Wide Compatibility:

Ideal for many Outdoor wireless network cameras, such as Hikvision/DaHua/Sony/Pansonic/Uniview and more IP cameras, with operation temperature: -5℉-120℉(-20℃-48℃).

Product List:

A-Type (1 to 1)

2x Ethernet Air

2x Omnidirectional Antenna

2x Power Adapter

2x Ethernet Cable

4x Screws

1x User Manual

B-Type (1 to 2)

3x Ethernet Air

6x Self-tapping screw

6x Colloidal particles

3x Ethernet Cable

3x 5V1A power adapter

3x Omnidirectional antenna

C-Type (1 to 4)

5x Ethernet Air

10x Self-tapping screw

10x Colloidal particles

5x Ethernet Cable

5x 5V1A power adapter

5x Omnidirectional antenna

What is Wi-Fi HaLow?

This is a new, low-power, remote version of Wi-Fi designed to meet the unique requirements of the Internet of Things. Based on the IEEE 802.11ah standard, Wi-Fi HaLow builds on the market success of Wi-Fi to deliver an uncompromising wireless solution that provides energy efficiency, extended range, obstacle penetration, native IP support, ease of use and leading-edge security features that IoT developers are looking for.

Traditional Wi-Fi allows users to quickly transfer movies and download files on a variety of radio frequencies in the 2.4GHz, 5GHz, and 6GHz bands. These higher frequency Wi-Fi connections have a short effective range and can quickly drain the battery, requiring frequent charging, battery replacement, or plugging in. Wi-Fi HaLow is designed to reduce power consumption, increase wireless range and data rates without limiting performance, and support more devices in the network.

Our Advantages:

The working frequency band of the wireless bridge is 902MHz-928MHz.

Support two-way voice intercom, effective pickup range of 10 meters.

The camera can be adjusted 180 ° up and down angle.

Wireless bridge point-to-point, Supports up to 8 cameras.

Wireless Ethernet bridge transmitted by infrared has excellent performance. Indoor use can achieve signal transmission through 4 walls.

Motion Detection: When motion is detected, TUYA APP will send an alert to your mobile phone in time, and you can manually adjust the sensitivity of monitoring.
