Notes

If you want to program, please search for 'ICP5' in our store to purchase the ICP5 board.
If you want to modify the Bluetooth name of JAB5, please search for 'name' in our store to purchase it and don't forget to send us the new BT name.
Most buyers will purchase the corresponding cable package. You can search for "cables" in our store to buy the cable package for JAB5.

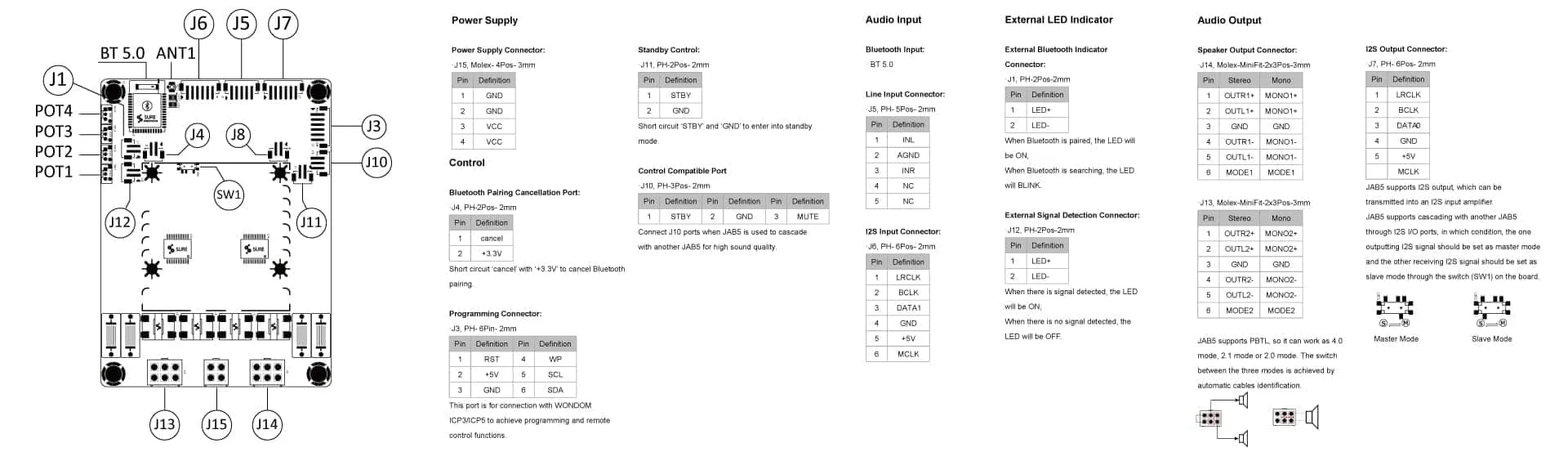

User manual

http://files.sure-electronics.com/download/JAB5.pdf

http://files.sure-electronics.com/download/JAB5_Datasheet.pdf

SigmaStudio

https://files.sure-electronics.com/download/ICP5_program.pdf

http://files.sure-electronics.com/download/JAB5_SigmaStudio.pdf

http://files.sure-electronics.com/download/Sigmastudio_Examples.pdf

PC UI

http://files.sure-electronics.com/download/ICP5_PCUI.docx

Video

https://www.youtube.com/watch?v=1tYLn3NvGho

https://www.youtube.com/watch?v=Yt2S9YIZyyo

https://www.youtube.com/watch?v=fUsLQpRW2eU

https://www.youtube.com/watch?v=8ftD-qouYY4

Video for 3-way Digital Crossover

https://www.youtube.com/watch?v=BOwIbNcLfmA

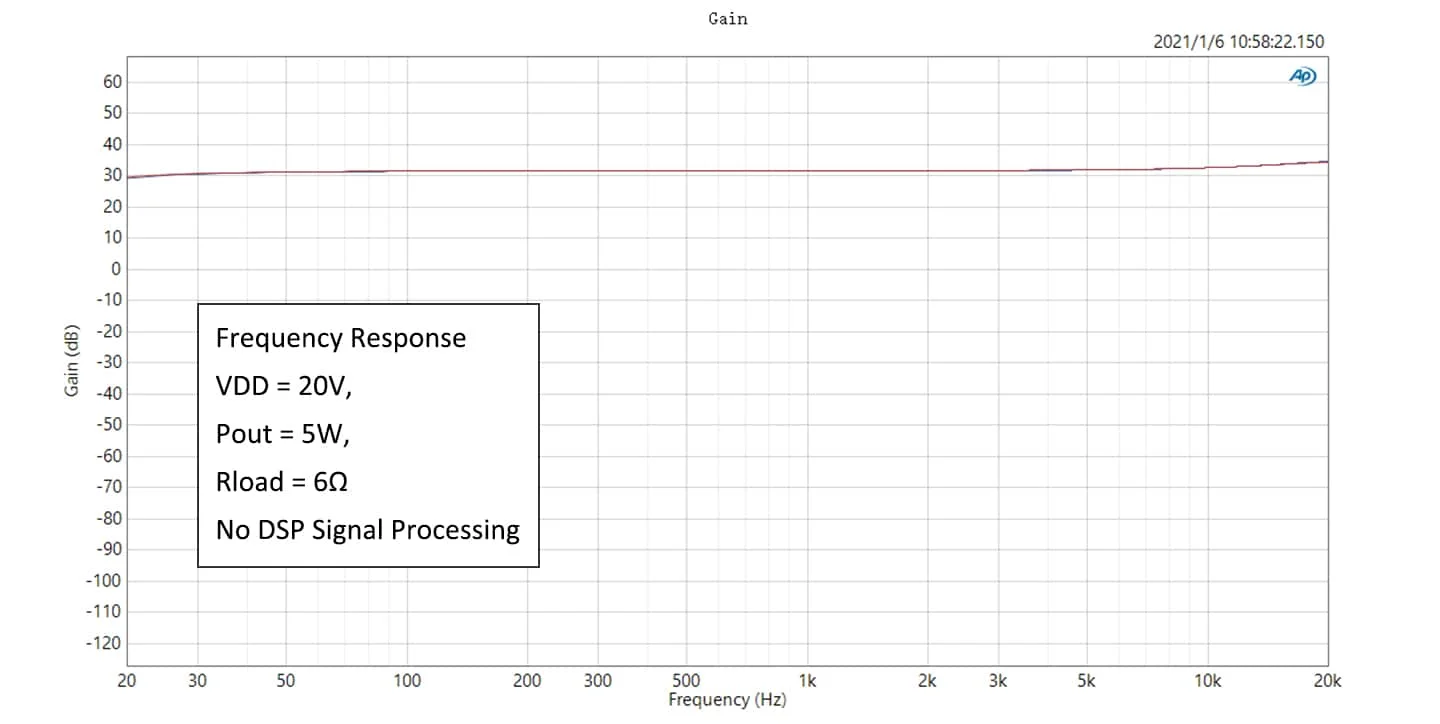

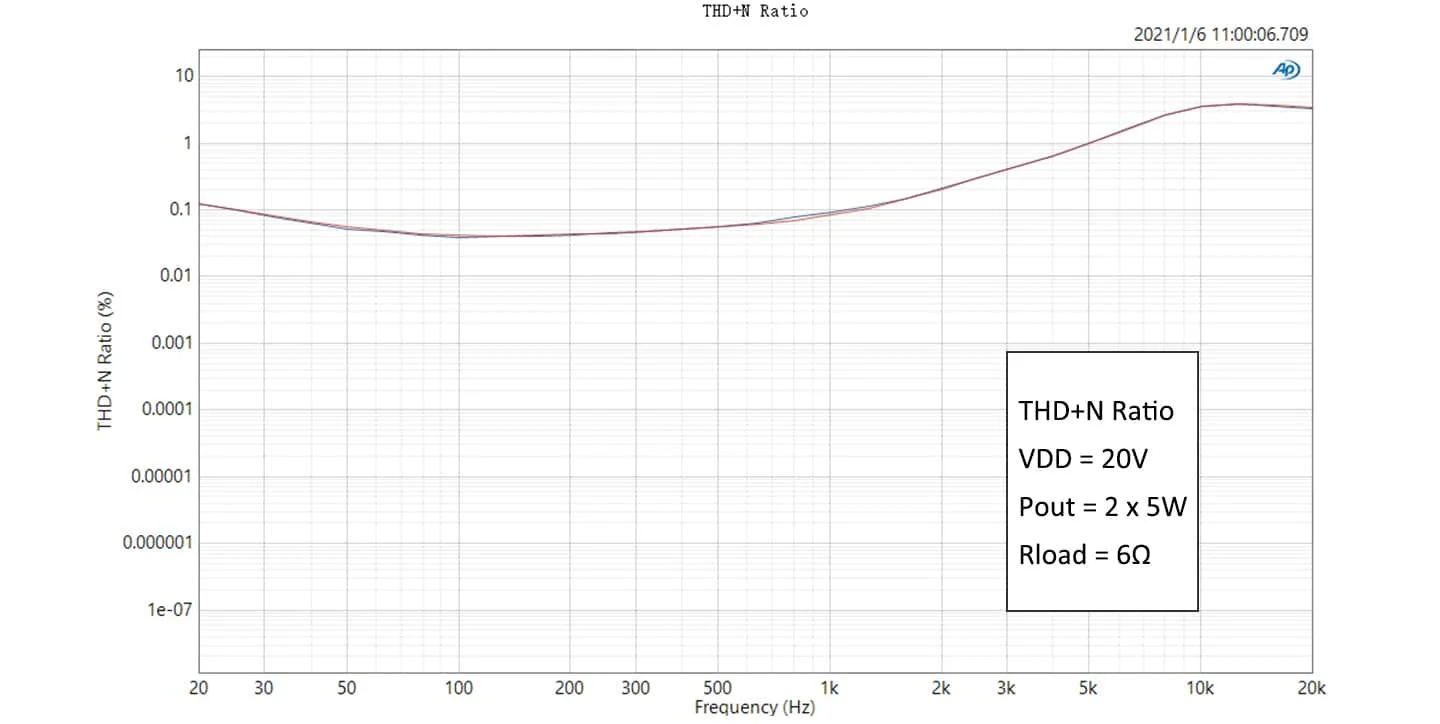

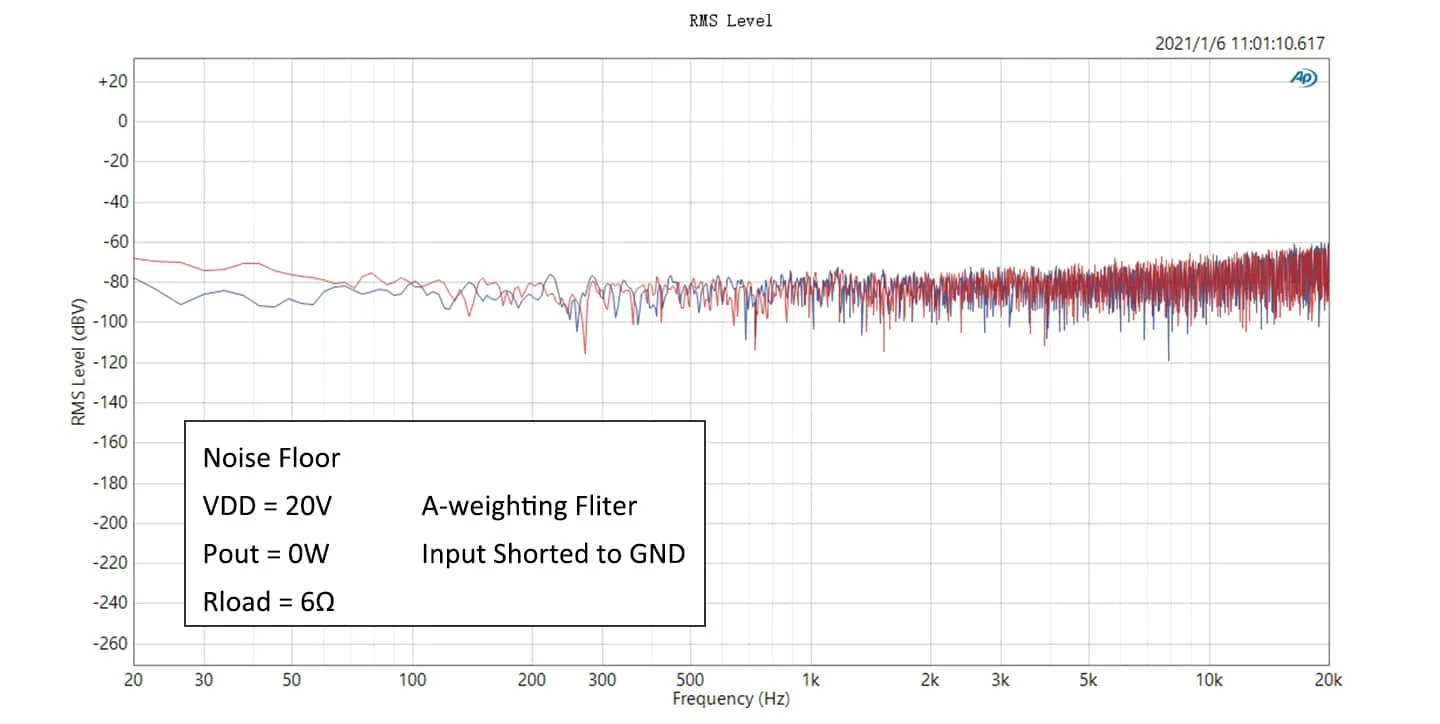

Features

4.80 x 3.60 Inches PCB Size
DSP & Bluetooth 5.0 Integrated
Power Management Circuit
Signal Level Sensor System
I2S Input & Line Input Supported
I2S Output Supported
Supporting 4.0 / 2.1 / 2.0 Mode
Supporting cascading with another JAB5 for 8 x 100W
Bluetooth Pairing Cancellation
Four External Potentiometers Control
Bluetooth LED Indicator
Signal Detection LED Indicator
Supporting ICP5 for Programming and APP / PC UI Control

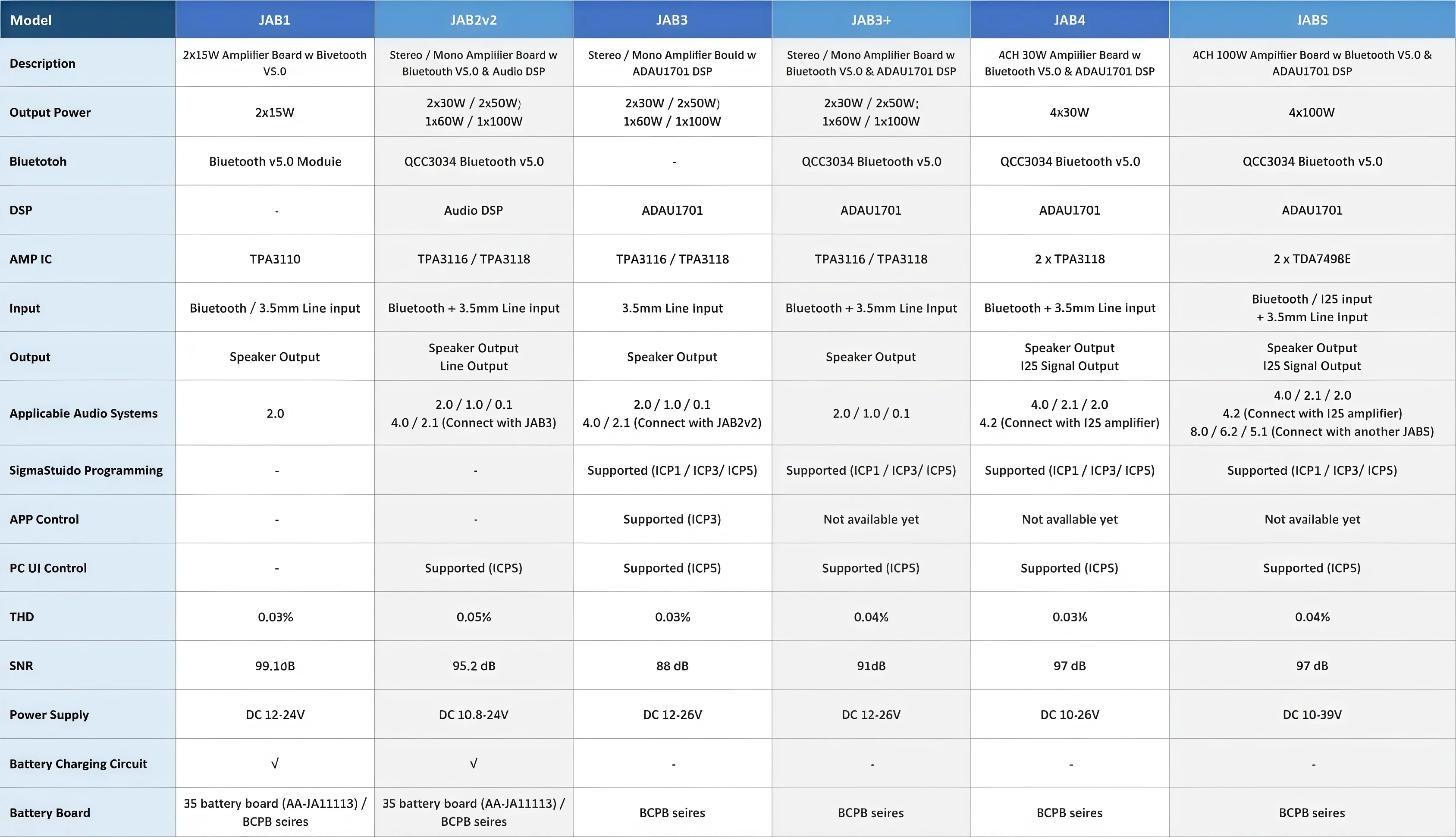

4CH Audio Amplifier Board - The Ultimate All-in-One Audio Solution

Experience the power of versatility with the JAB5 4CH Audio Amplifier Board. This feature-packed board combines Bluetooth 5.0 (supporting aptX HD) and ADAU1701 DSP, providing a comprehensive audio solution for all your needs.
Key Features:
High-Performance Amplification: The JAB5 delivers an impressive 100W output power per channel into a 6Ohm load, ensuring robust and immersive audio performance.
Multiple Input Options: Enjoy flexibility with Bluetooth, line, and I2S inputs, allowing you to connect various audio sources effortlessly.
ADAU1701 DSP Integration: The equipped ADAU1701 DSP opens up a world of possibilities. Program the board using SigmaStudio, control it through the dedicated app, or connect it to WONDOM ICP programmers for PC UI control, enabling precise adjustments to volume, gain, frequency, and EQ settings.
Versatile Output Modes: Customize your audio setup with different output configurations. Choose between 4.0 mode (4 x 100W), 2.1 mode (2 x 100W + 1 x 200W), or 2.0 / 0.2 mode (2 x 200W), catering to a wide range of audio projects.
Expandable Capability: Cascade multiple JAB5 boards to create audio 8.0 or build complex audio systems, offering scalability and adaptability.
Perfect for Various Audio Applications: The JAB5 is a versatile powerhouse, making it ideal for Bluetooth speakers, home audio systems, garden audio setups, digital crossovers, and DIY audio projects. Its wireless audio input, integrated ADAU1701 DSP, and high-quality audio performance ensure exceptional output in any application.
Power Supply Requirements: To power the JAB5, a DC10V-39V power supply is required, providing stable and reliable performance for uninterrupted audio enjoyment.

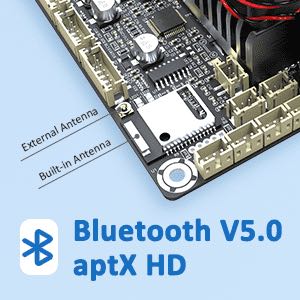

Integrated with Bluetooth V5.0

The JAB5 4CH Audio Amplifier Board offers seamless integration of Bluetooth 5.0 for audio input, supporting various formats such as aptX, aptX HD, aptX LL, SBC, and AAC. With its high receive sensitivity and RF power of up to 9dBm and -90dBm, this board ensures a strong and reliable Bluetooth connection. It features a built-in antenna for direct pairing with devices, allowing for convenient music playback. Additionally, an external antenna port is provided for installations in speakers or cabinets, ensuring a stable connection and high audio performance. Experience the convenience of wireless audio with the JAB5, without compromising on signal strength or audio quality.

Integrated with ADAU1701 DSP, Supporting Programming with SigmaStudio, APP and PC UI control

The JAB5 4CH Audio Amplifier Board takes audio signal processing to the next level with its integration of the high-performance ADAU1701 DSP chip. This powerful chip enhances the audio experience by providing advanced signal processing capabilities.
To offer convenient control options, the JAB5 includes four ports for external potentiometers. These potentiometers allow you to adjust gain and frequency settings even when the JAB5 is installed in a speaker or cabinet. The specific functions and usage of these potentiometers can be found in the datasheet or connection guide provided with the board.
For further customization and control, the JAB5 can be connected to WONDOM ICP programmers. With the use of SigmaStudio, you can write programs and create custom audio processing algorithms tailored to your specific needs. Additionally, through the dedicated PC UI, you can enjoy real-time remote control of your audio system, allowing adjustments to gain, volume, high/low-pass filters, EQ, and other parameters to fine-tune your audio output.
With the JAB5 and its integration of the ADAU1701 DSP chip, as well as the flexibility offered by the external potentiometers and control options through WONDOM ICP programmers, you have the power to optimize and customize your audio experience to perfection.
Note: Please refer to the provided datasheet or connection guide for detailed instructions and functionalities related to potentiometers and programming with WONDOM ICP programmers.

PC UI Miumax

PC UI - Miumax for JAB5 Download Link

http://files.sure-electronics.com/download/Miumax_Setup_v2.0.0.1.zip

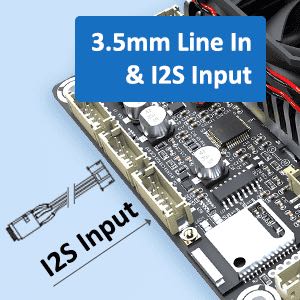

Supporting Line Input & I2S Input

The JAB5 4CH Audio Amplifier Board offers versatile input options to cater to different audio sources. Alongside Bluetooth input, the JAB5 supports 3.5mm line input and I2S input. These input methods provide flexibility in connecting various audio devices to the board.
When utilizing the Bluetooth, 3.5mm line, or I2S inputs, the signals are mixed together before being transmitted to the amplification circuit. This ensures a seamless integration of multiple audio inputs and allows for a consolidated audio output.
To make use of the 3.5mm line input, you can obtain the 3.5mm AUX-IN cable. Similarly, for the I2S input, the PH-6Pos cable is required. Both cables can be found in the Functional cables kit (AA-JA11117), providing you with the necessary accessories to connect your audio sources to the JAB5 board.
With the support for Bluetooth, 3.5mm line, and I2S inputs, the JAB5 ensures compatibility with a wide range of audio devices, making it a versatile choice for your audio projects.

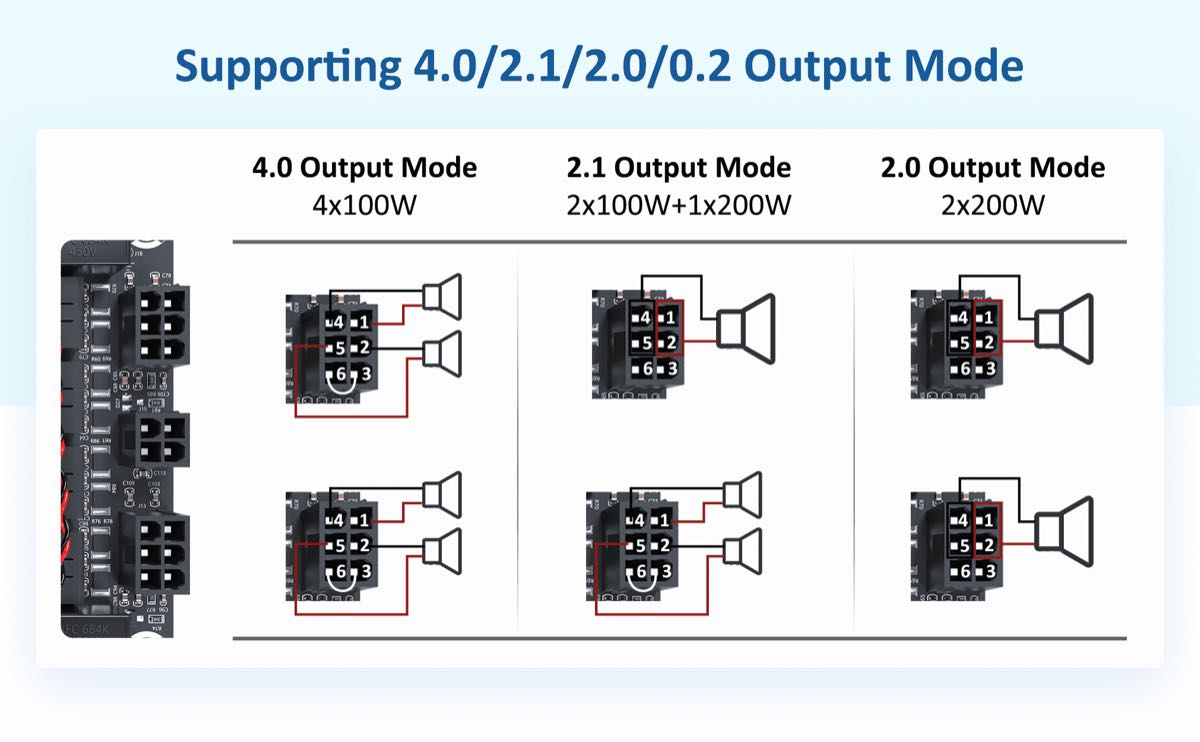

Supporting Configuration as 4.0 / 2.1 / 2.0 / 0.2 Output Mode

The JAB5 4CH Audio Amplifier Board offers multiple output configurations, providing flexibility for various audio systems. It allows for different channel combinations, enabling you to configure the board based on your specific requirements.
The JAB5 can be set up in the following output modes:
4.0 Mode: In this mode, each of the four channels delivers 100W of power, resulting in a total power output of 4 x 100W.
2.1 Mode: The total power output in 2.1 mode is 2 x 100W + 1 x 200W.
2.0 / 0.2 Mode: In this configuration, two channels are combined to deliver 200W of power. This mode is suitable for setups that require a higher power output. Please note that for 0.2 mode, frequency adjustment using the PC UI is essential, in addition to hardware settings. It's important to note that 0.2 mode is not supported when using hardware control through the potentiometers.
To ensure ease of operation, WONDOM has implemented automatic cable insertion identification functionality. This feature simplifies the switching process between different output modes. All you need to do is plug in the cables as required, and the board will automatically recognize the configuration. The functions of the four external potentiometers will change accordingly, aligning with the selected output mode.
However, it's important to remember that when using JAB5 in 0.2 mode, frequency adjustment using the PC UI is necessary in addition to the hardware settings. This mode allows for optimal performance but requires software control for frequency adjustments.

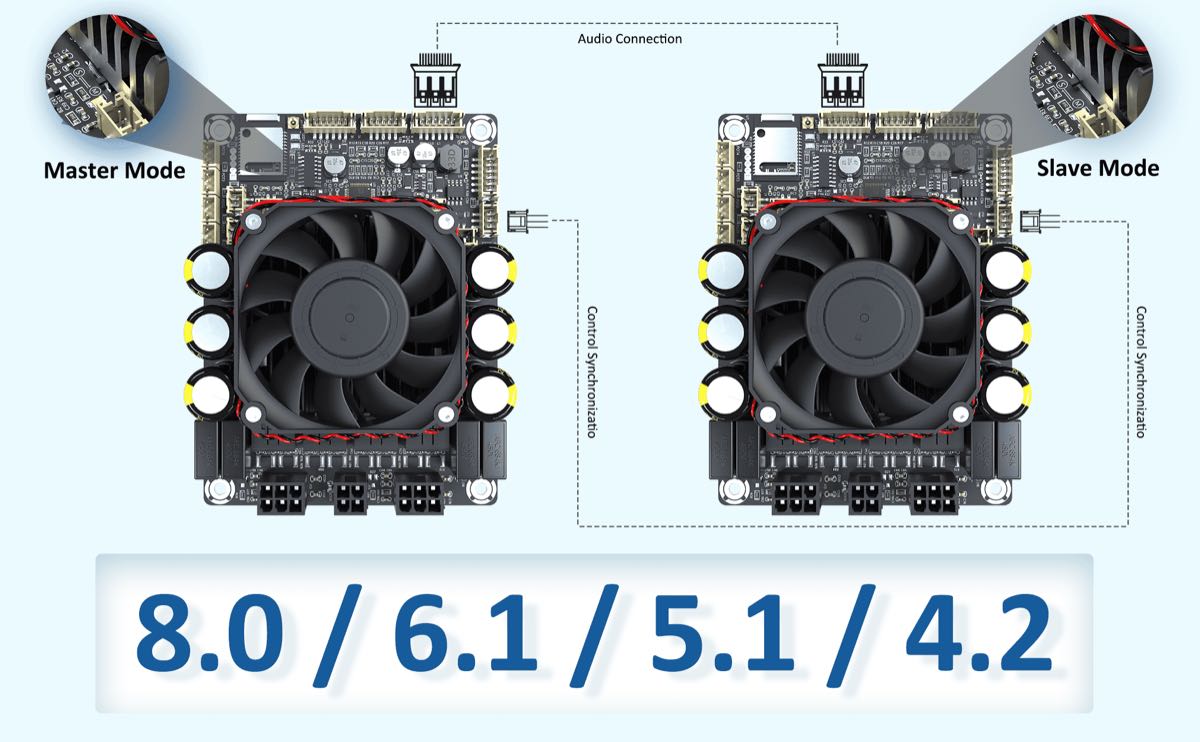

Cascading with Another JAB5 to Build Audio 8.0 or other systems

In addition to speaker output, the JAB5 4CH Audio Amplifier Board also supports I2S signal output, allowing you to transmit the audio signal to another I2S amplifier board. This feature enables you to cascade multiple JAB5 boards and create larger audio systems according to your needs. For example, you can build an 8 x 100W system by connecting two JAB5 boards together using the I2S input and output ports.
To configure the cascade setup, the JAB5 board includes a switch that can be set to either master mode or slave mode. This setting determines the role of each board in the cascade configuration. It's important to ensure proper configuration to maintain synchronization and control between the boards.
To ensure easy control and consistent audio performance in the built audio system, Sure Electronics has included a synchronization port on the JAB5 board. This port ensures that the control logic of the two connected boards remains synchronized, enhancing the overall functionality and reliability of the system.
For more detailed information and instructions on the cascade setup, synchronization, and control logic, please refer to the datasheet provided by WONDOM.

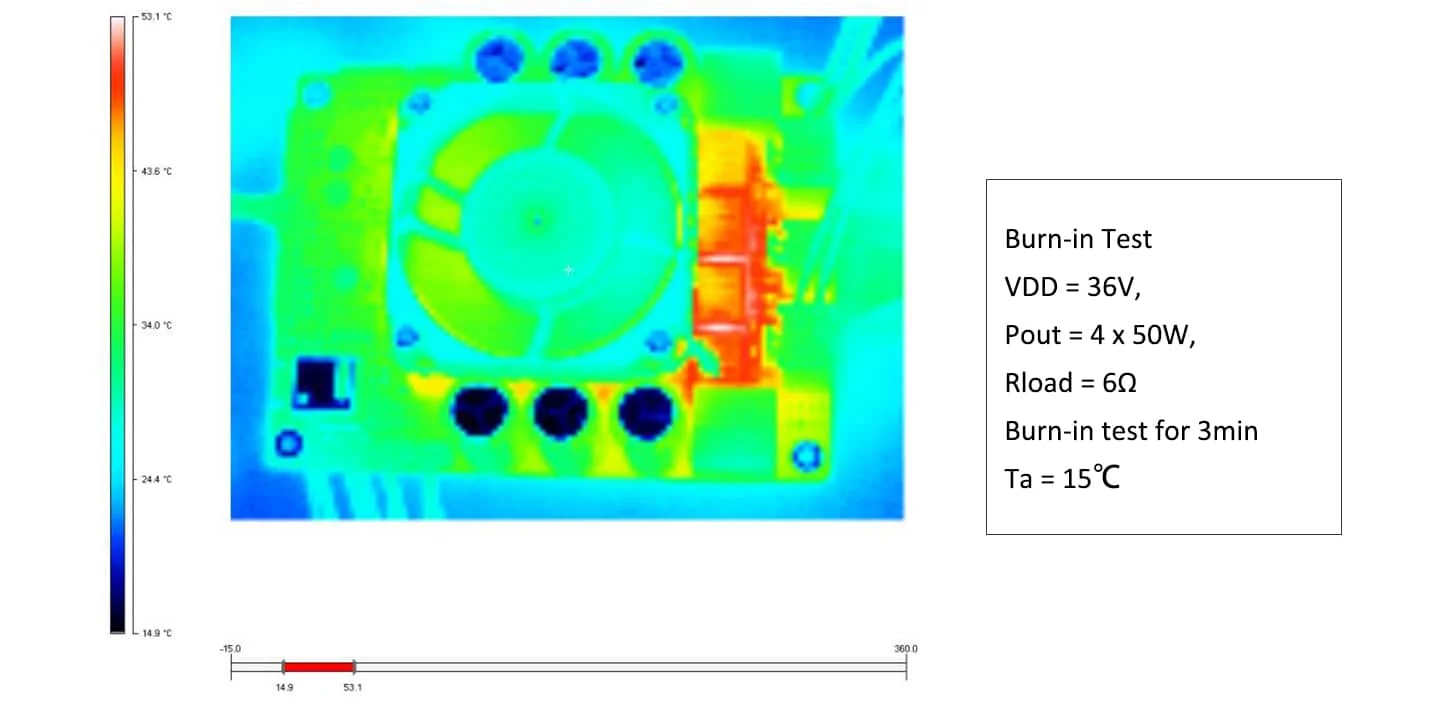

Signal Level Sensor System, Low Power Consumption

The JAB5 4CH Audio Amplifier Board incorporates a signal level sensor system that enhances power efficiency and extends playback time. This system continuously monitors the input signal and utilizes a preset signal voltage threshold.
When the sensor system detects that there is no signal present, meaning the voltage is lower than the threshold, for a period of 5 minutes, the amplifier module will automatically enter standby mode. In this mode, the power consumption is significantly reduced, optimizing energy efficiency and conserving battery life.
Once a signal is detected again, the amplifier module will promptly exit standby mode and resume operation without any interruption or loss of audio quality. This seamless transition ensures that the audio playback remains uninterrupted, delivering a smooth and uninterrupted listening experience.
By employing the signal level sensor system, the JAB5 achieves lower power consumption during periods of inactivity, resulting in longer playback time and improved energy efficiency. This feature is particularly beneficial in scenarios where the audio amplifier board is used in battery-powered applications or where power conservation is a priority.

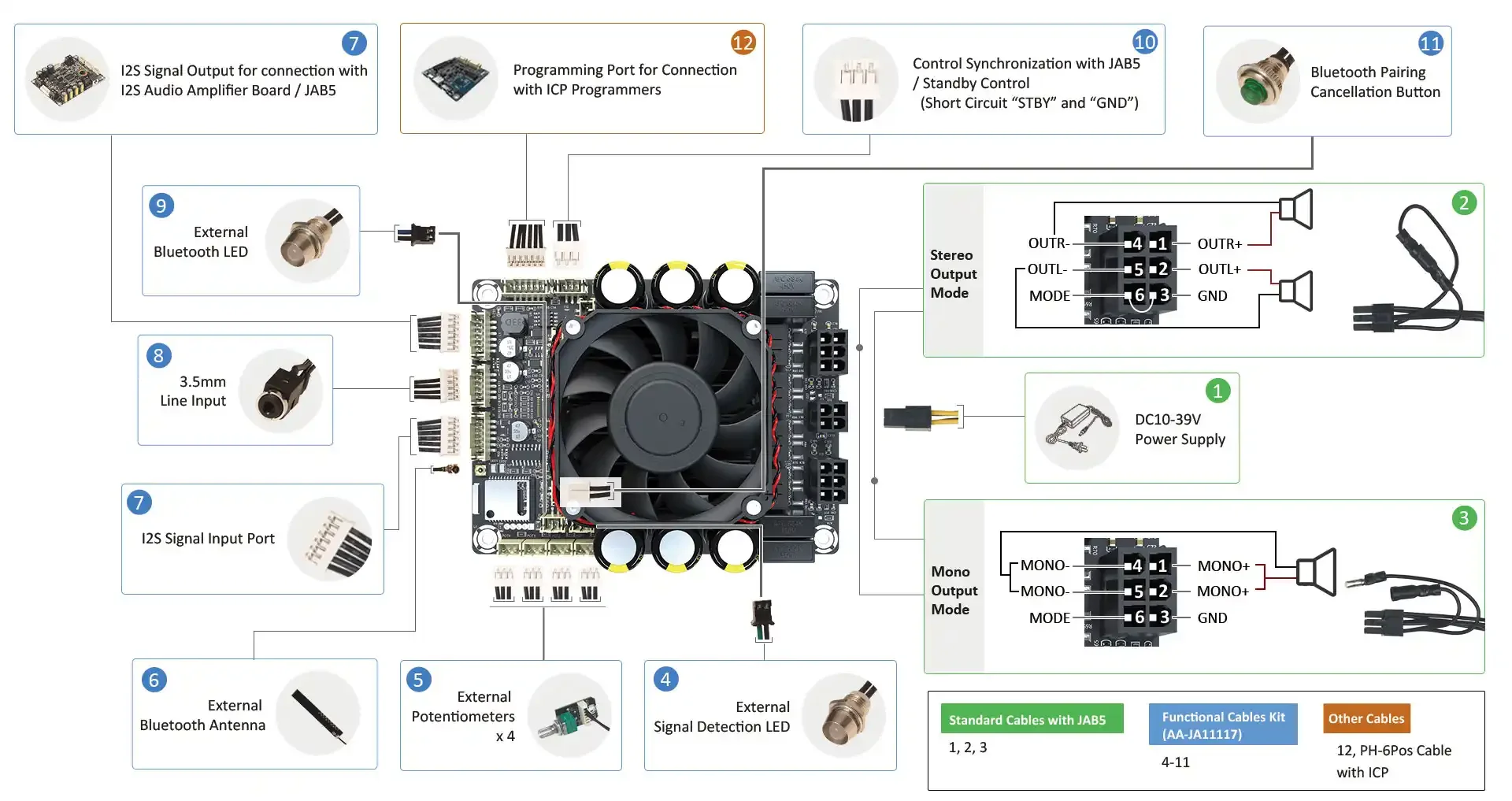

Easy for Integration

The JAB5 4CH Audio Amplifier Board incorporates convenient features to enhance the user experience and provide control over Bluetooth connectivity and power management.
The board includes a Bluetooth pairing cancellation function that allows you to disconnect from a Bluetooth device with a simple press of a button. This feature eliminates the need to identify and select a specific Bluetooth device for disconnection. With this function, you can easily terminate the Bluetooth connection without any hassle.
Additionally, the JAB5 offers a standby function, allowing you to put the amplifier board into a low-power standby mode when not in active use. This standby mode helps conserve power and extend battery life, making it an ideal feature for energy-efficient operation.
To provide visual feedback and status indication, the JAB5 includes ports for External LED indicators. These indicators display the status of Bluetooth connectivity and signal, providing you with a clear overview of the running condition of the JAB5. This visual feedback allows you to monitor the Bluetooth connection and signal strength at a glance, ensuring a seamless and reliable audio experience.

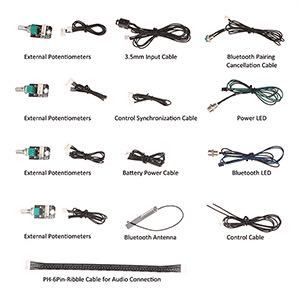

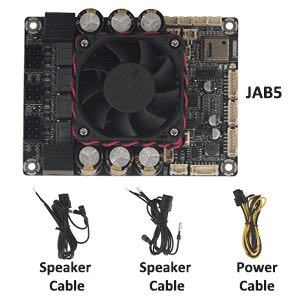

Optional Accessories

We provide optional accessories for customers' simple operation. Functional cables kit (AA-JA11117) offers all the cables you need for better use of JAB5. As for the detailed information, please refer to AA-JA11117.
