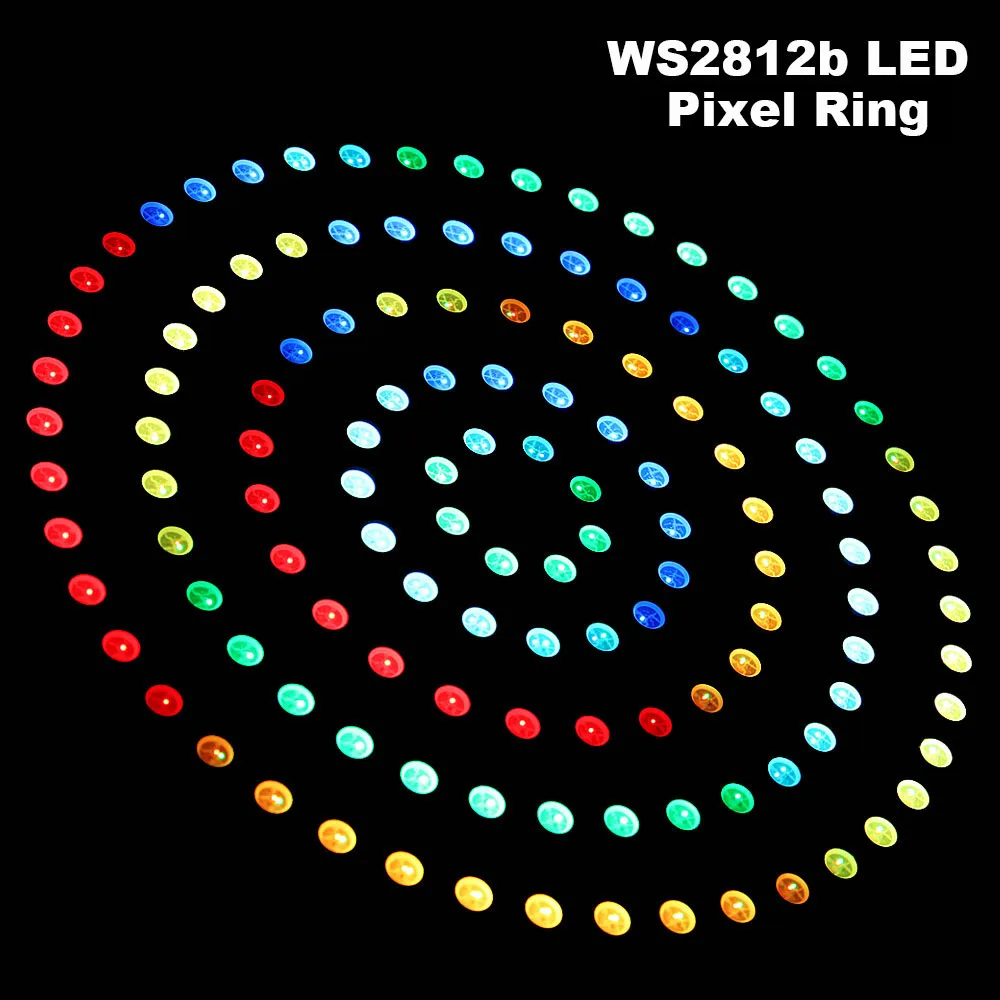

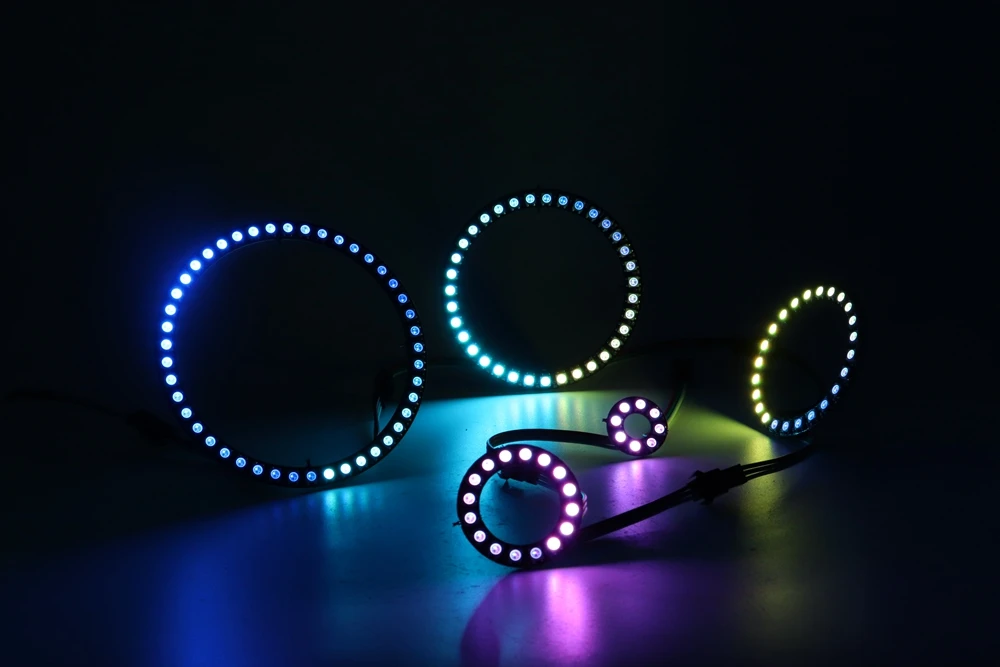

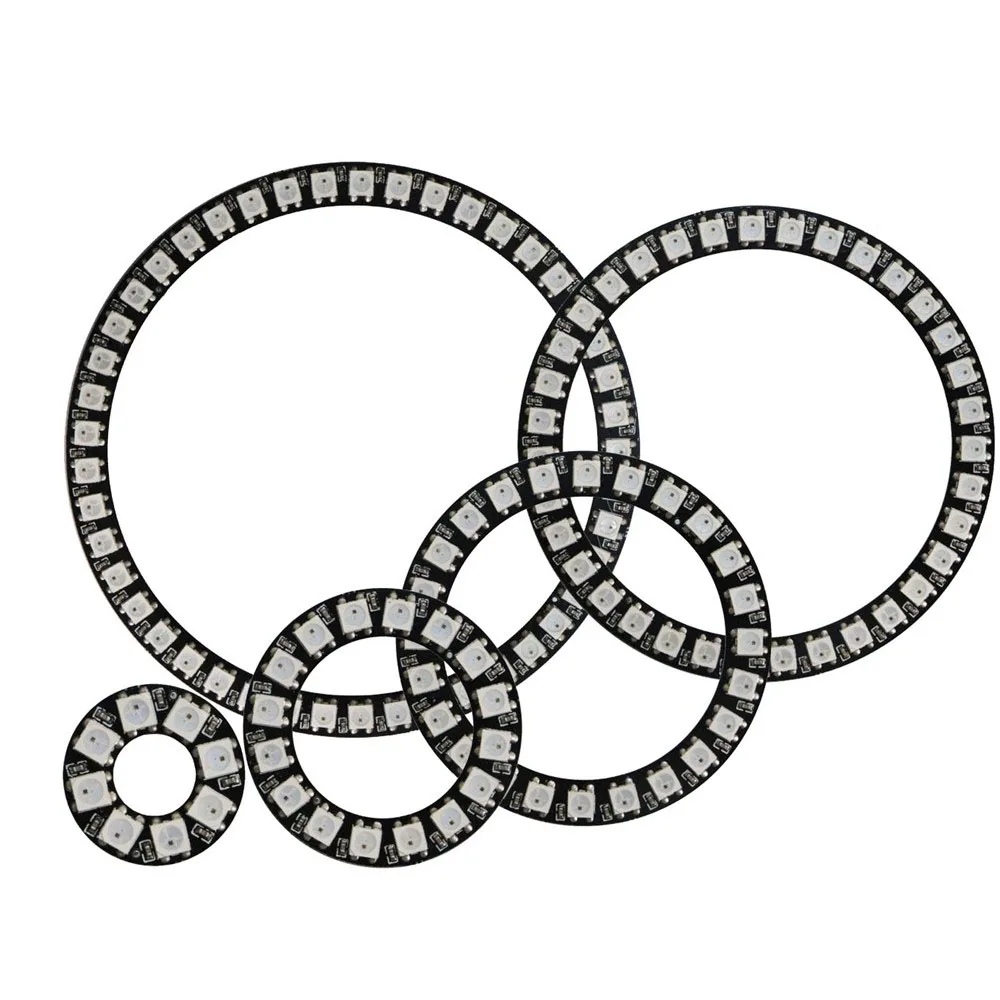

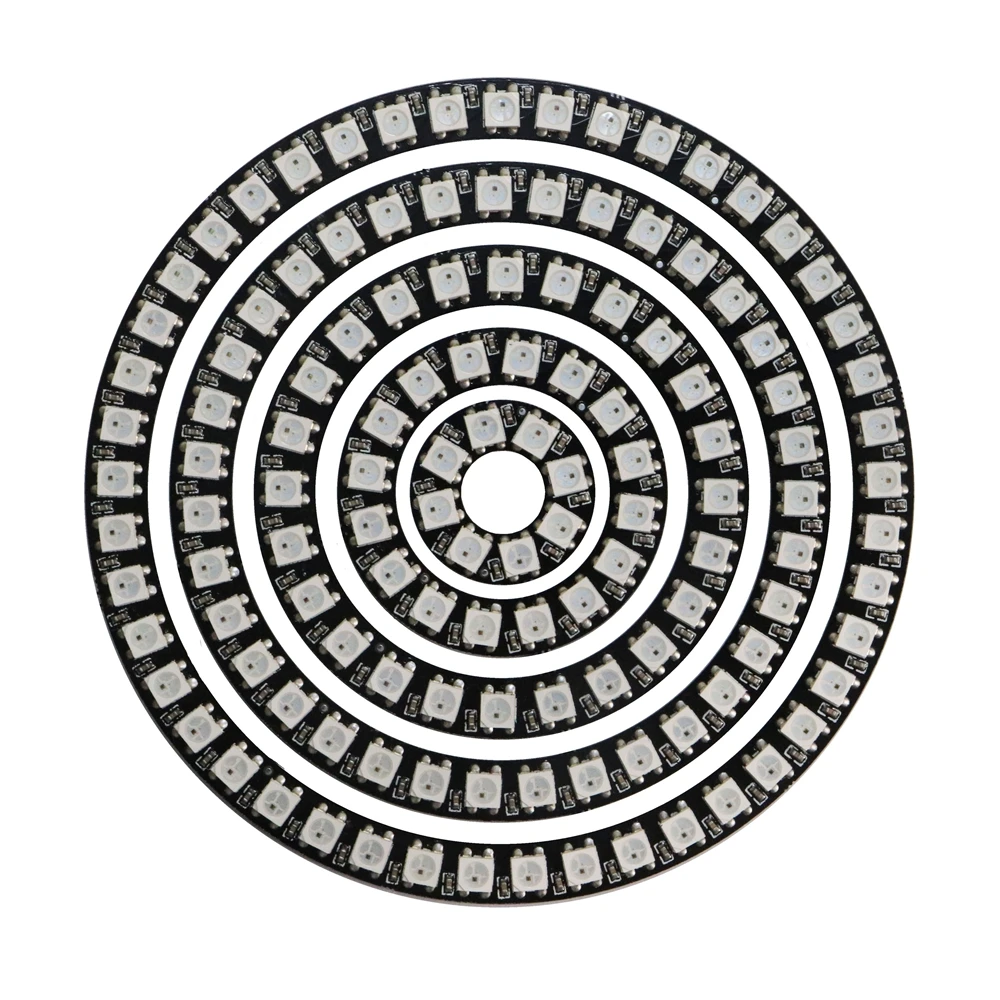

WS2812B Individually Addressable Pixel Ring 8 16 24 35 45 LEDs WS2812 Built-in IC 5050 RGB LED Ring Module Led Strip Light DC5V

Description:

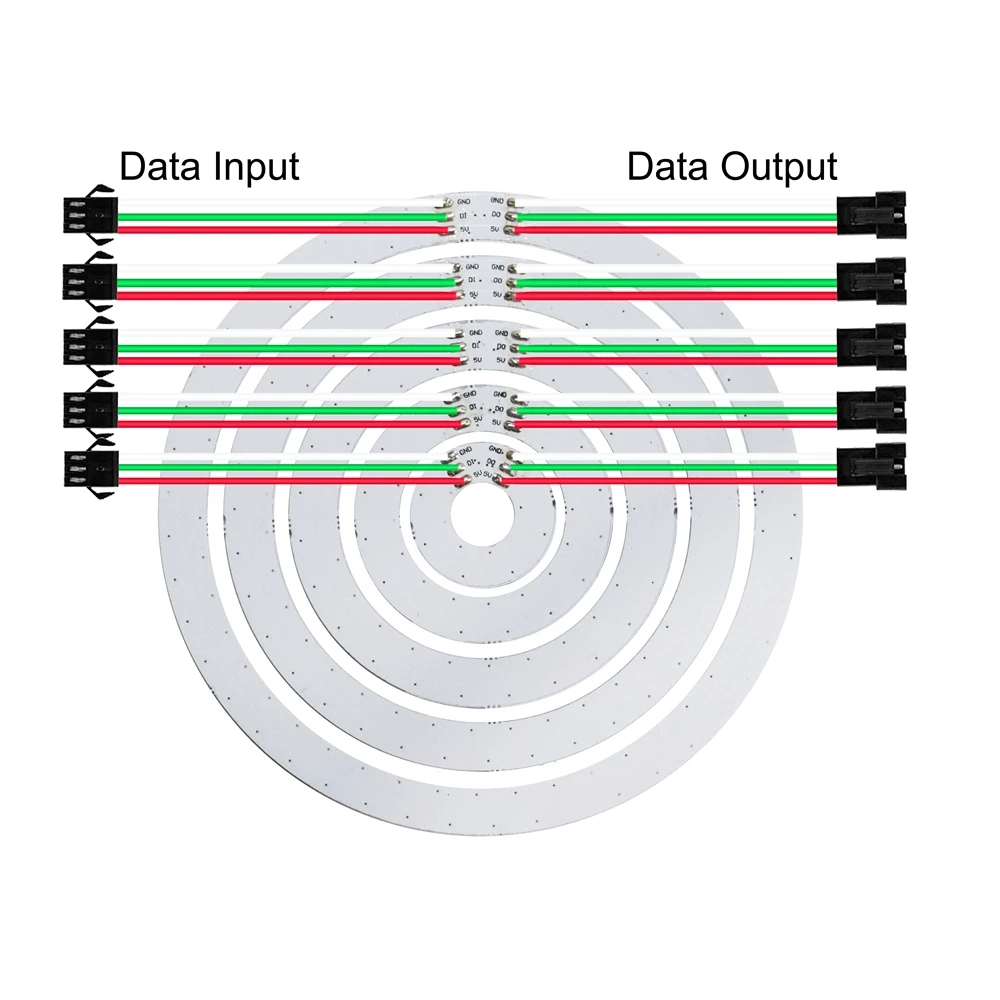

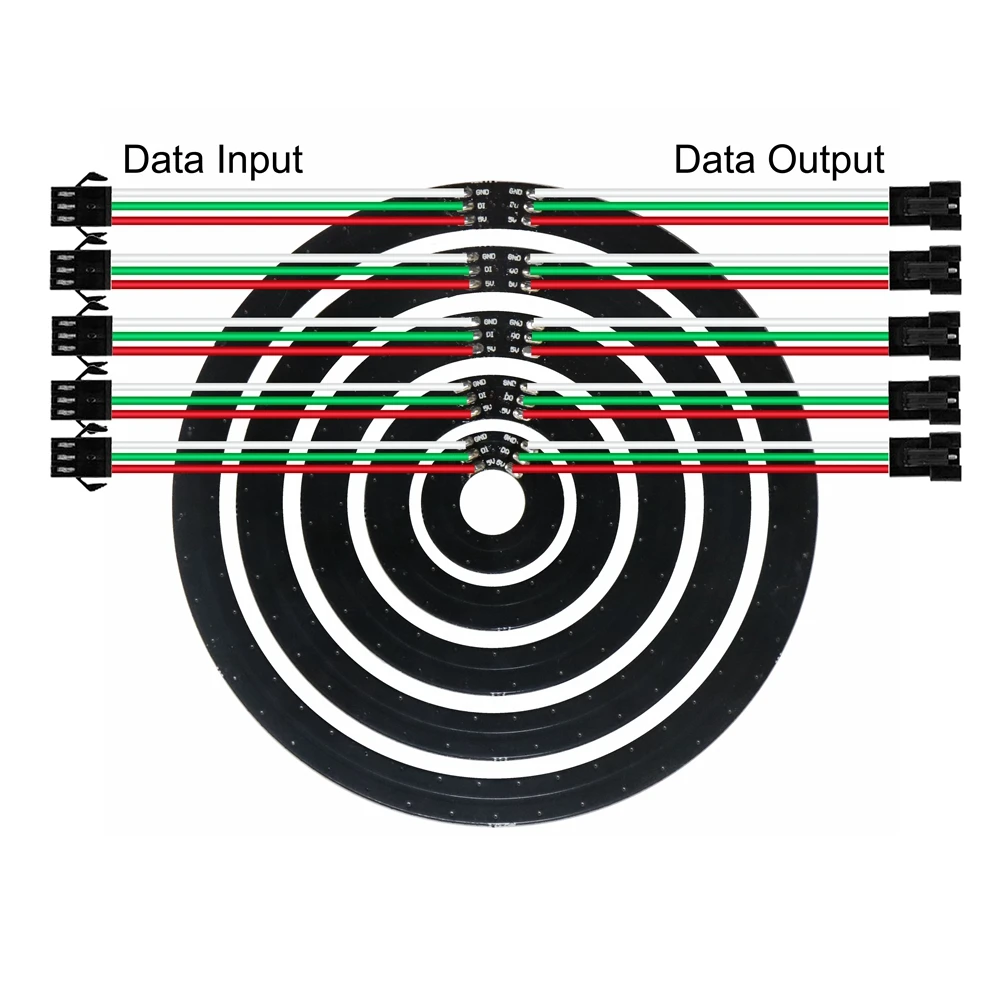

There is a single data line with a very timing-specific protocol.

Since the protocol is very sensitive to timing,

It requires a real-time microconroller such as an AVR, A rduino, PIC, mbed, etc.

It cannot be used with a Linux-based microcomputer or interpreted microcontroller

Such as the netduino or Basic Stamp.

Chip: WS2812 (Built-in LED)

LED:8/16/24/35/45Pcs 5050 RGB Full Color Highlighting

Voltage: 5V(POWER SUPPLY AND CONTROLLER IS NOT INCLUDED)

Size: Outer Diameter Inner Diameter PCB Width

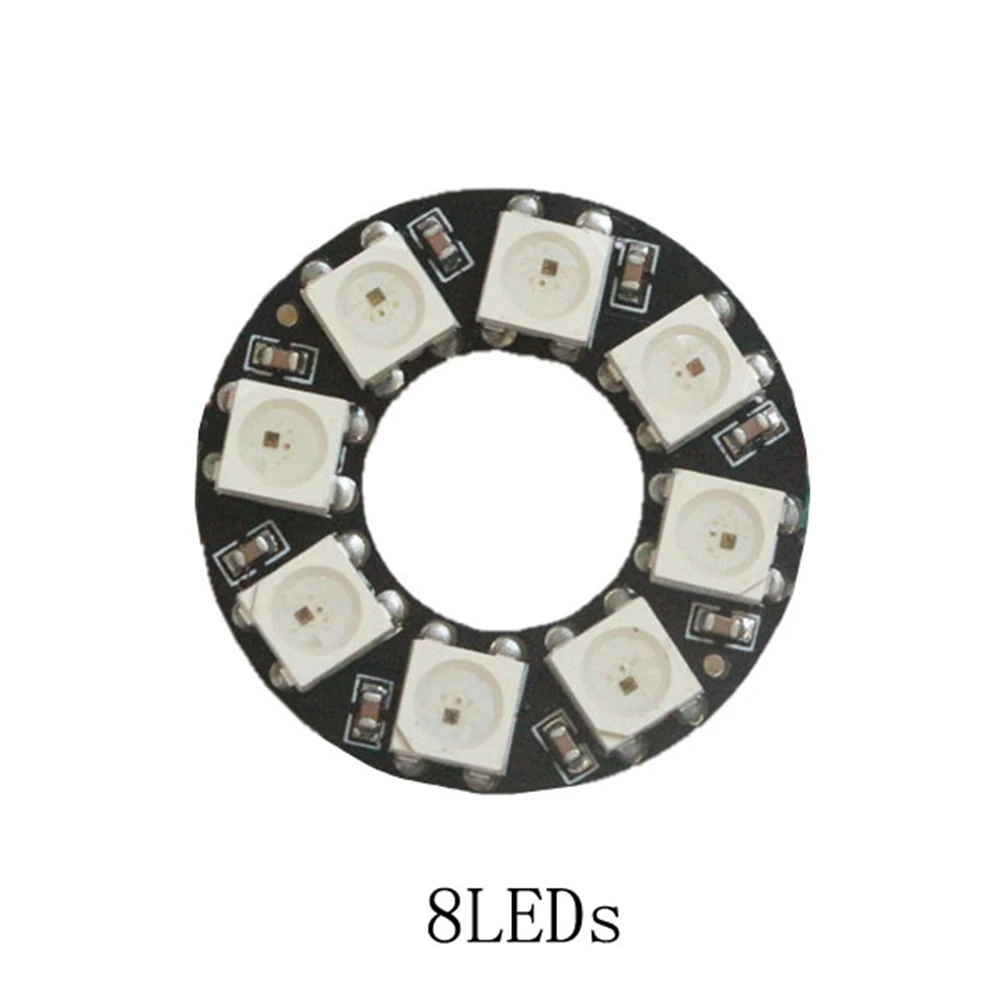

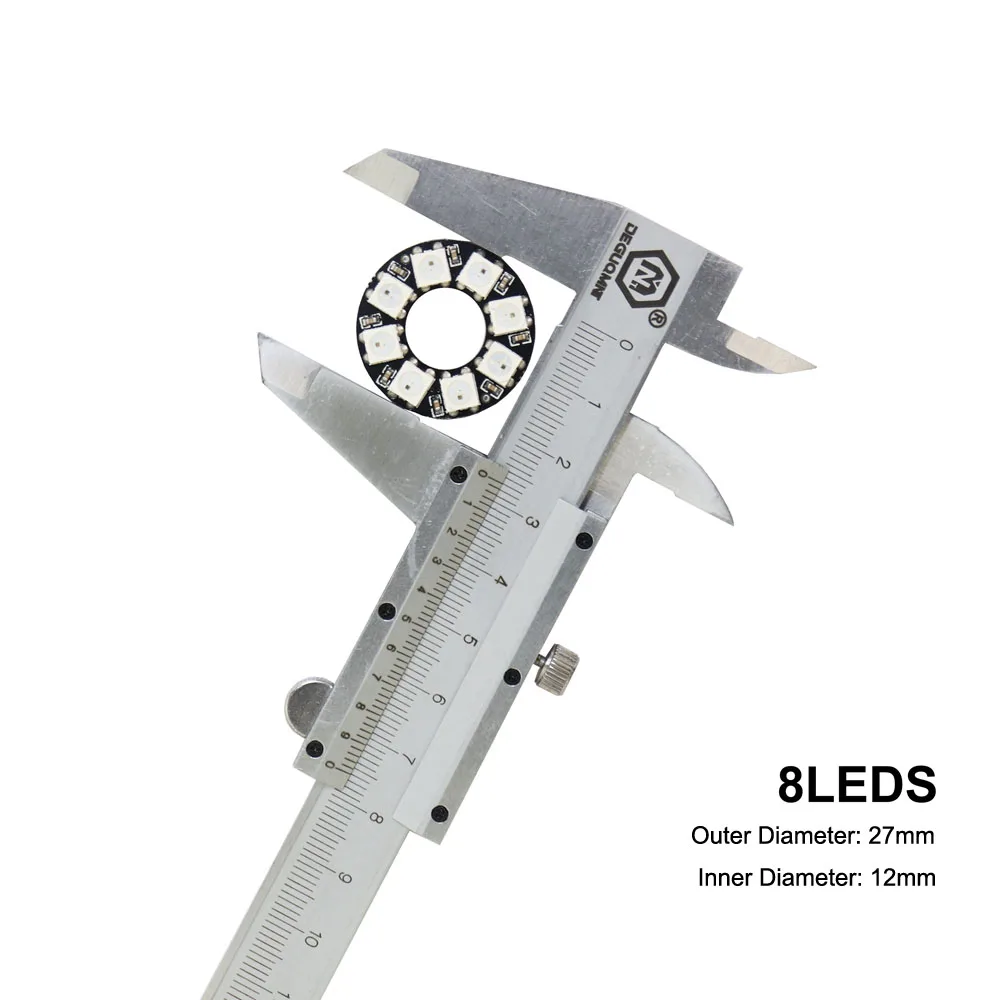

8LED 27mm 12mm 7.5mm

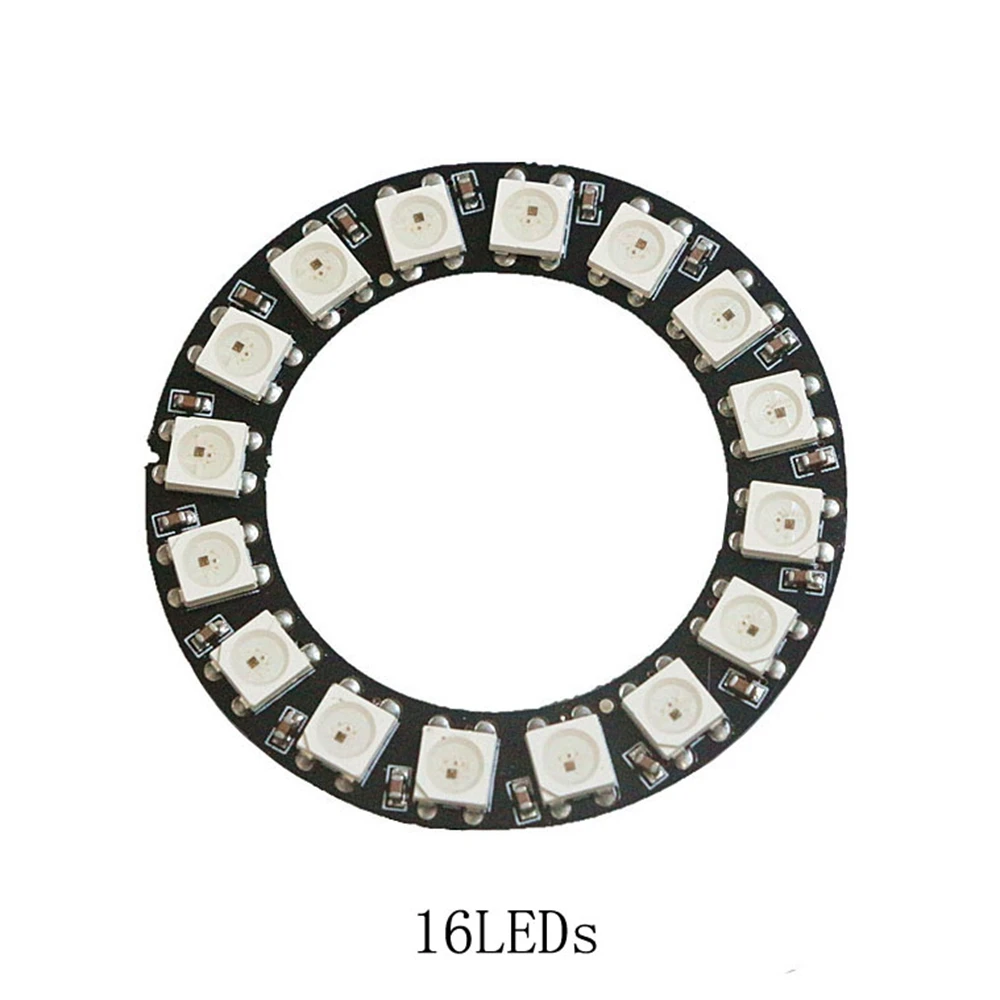

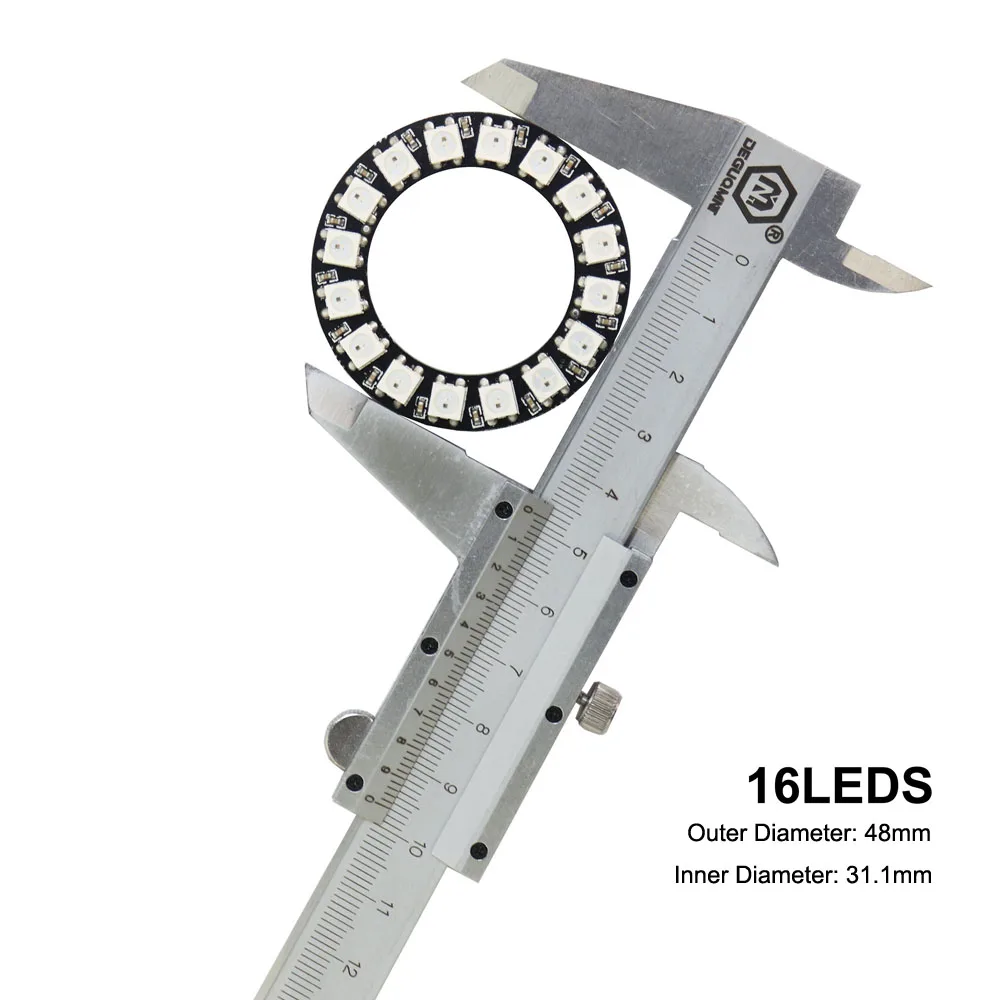

16LED 48mm 31.1mm 7.5mm

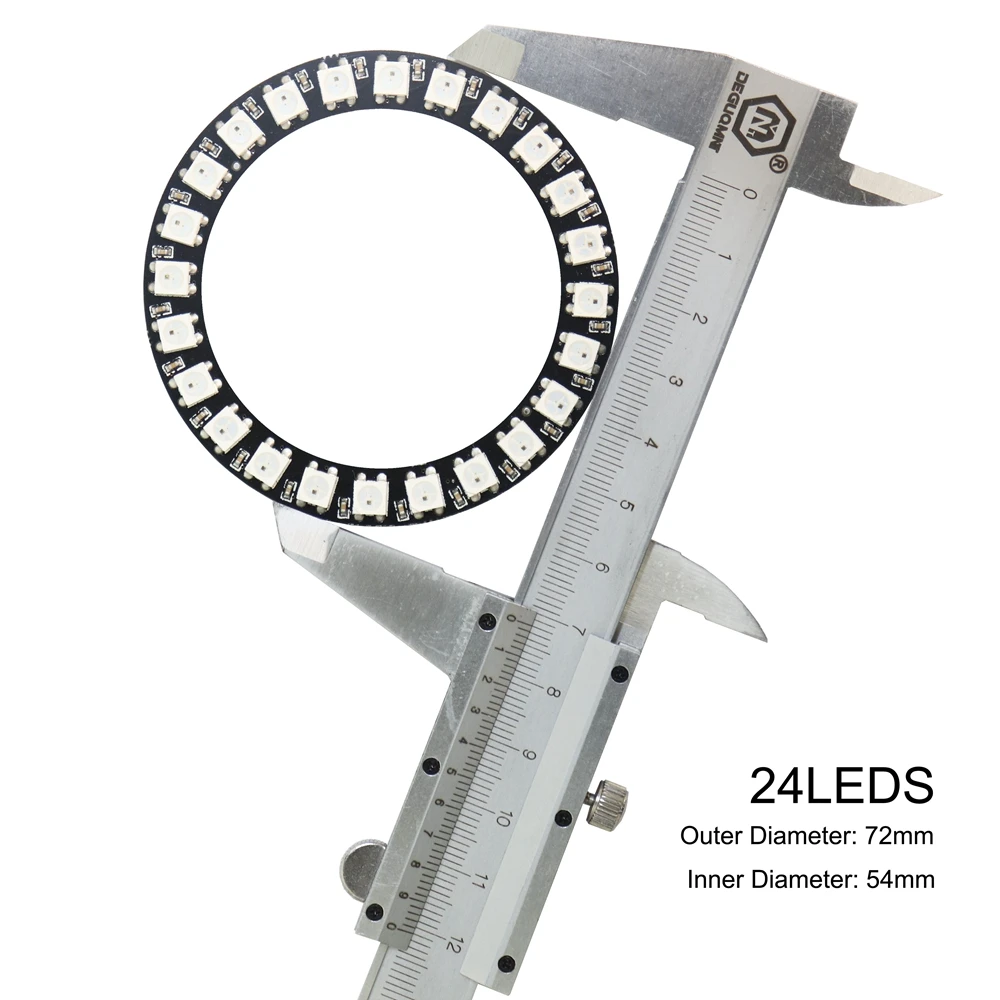

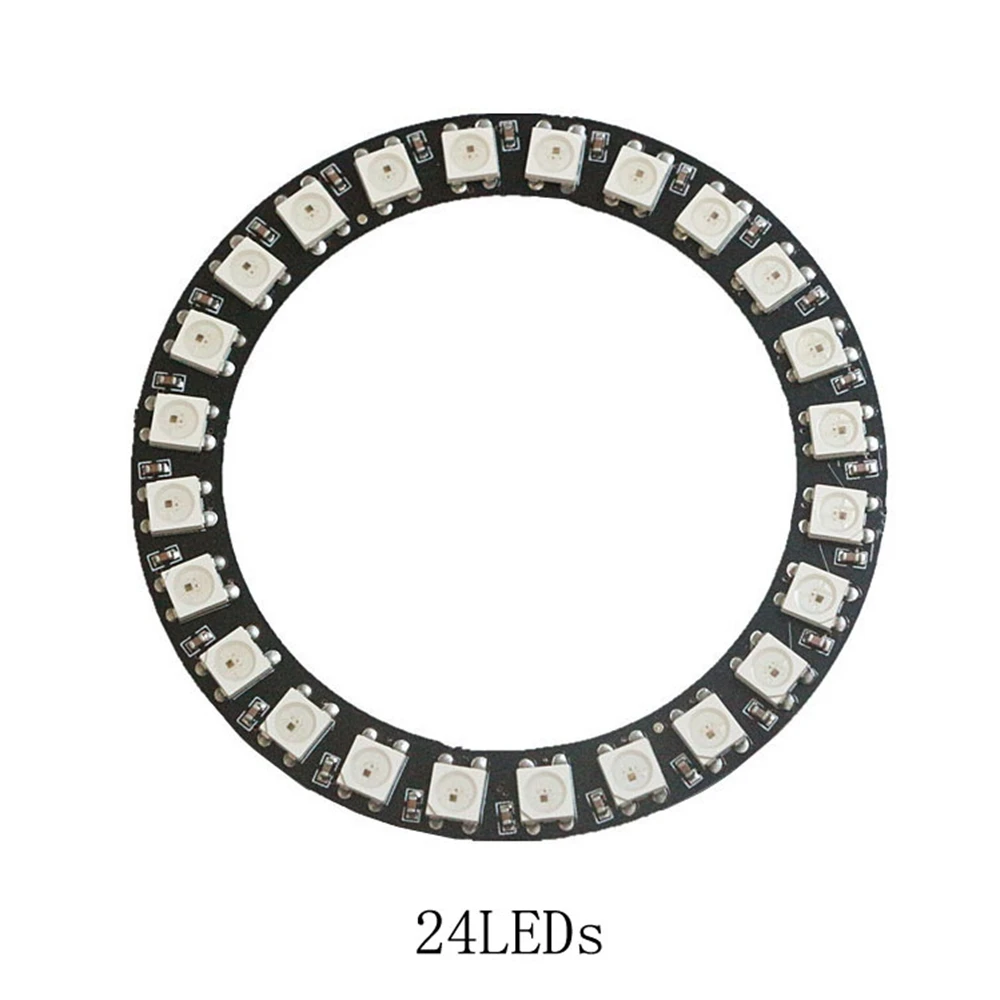

24LED 72mm 54mm 9mm

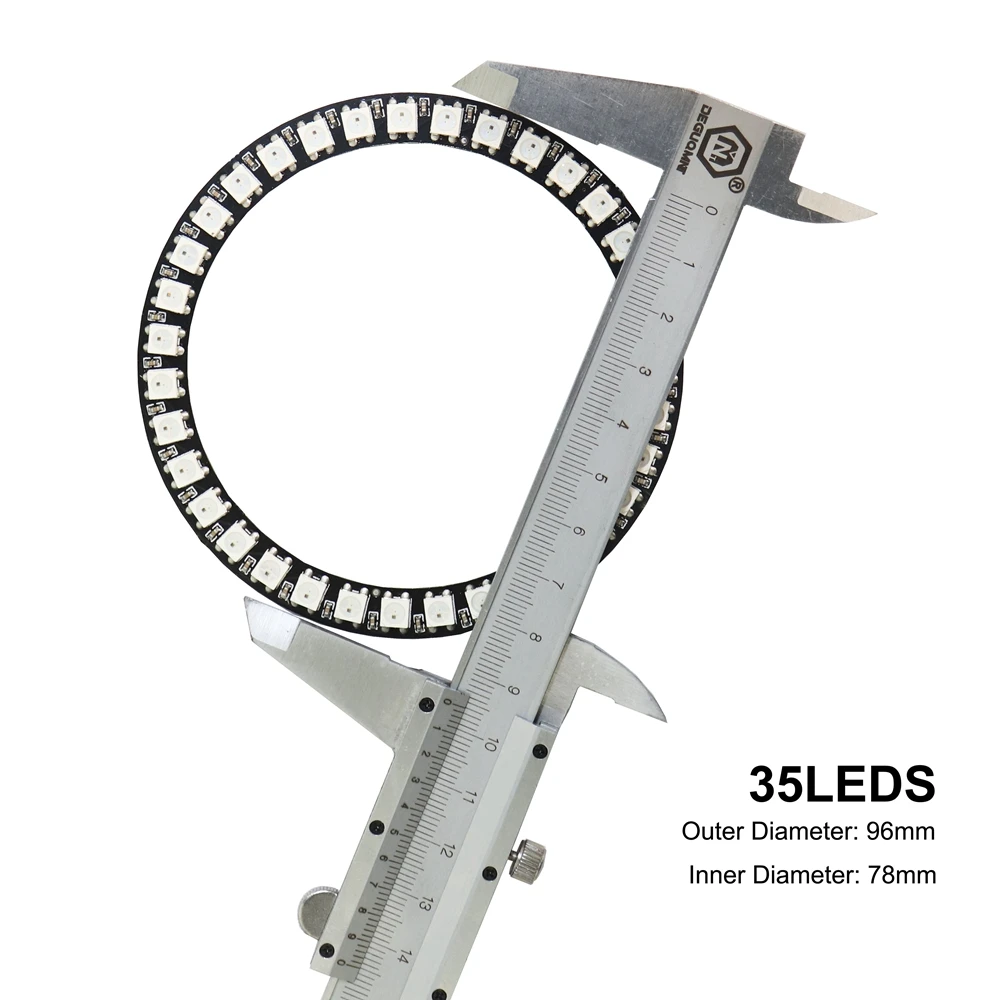

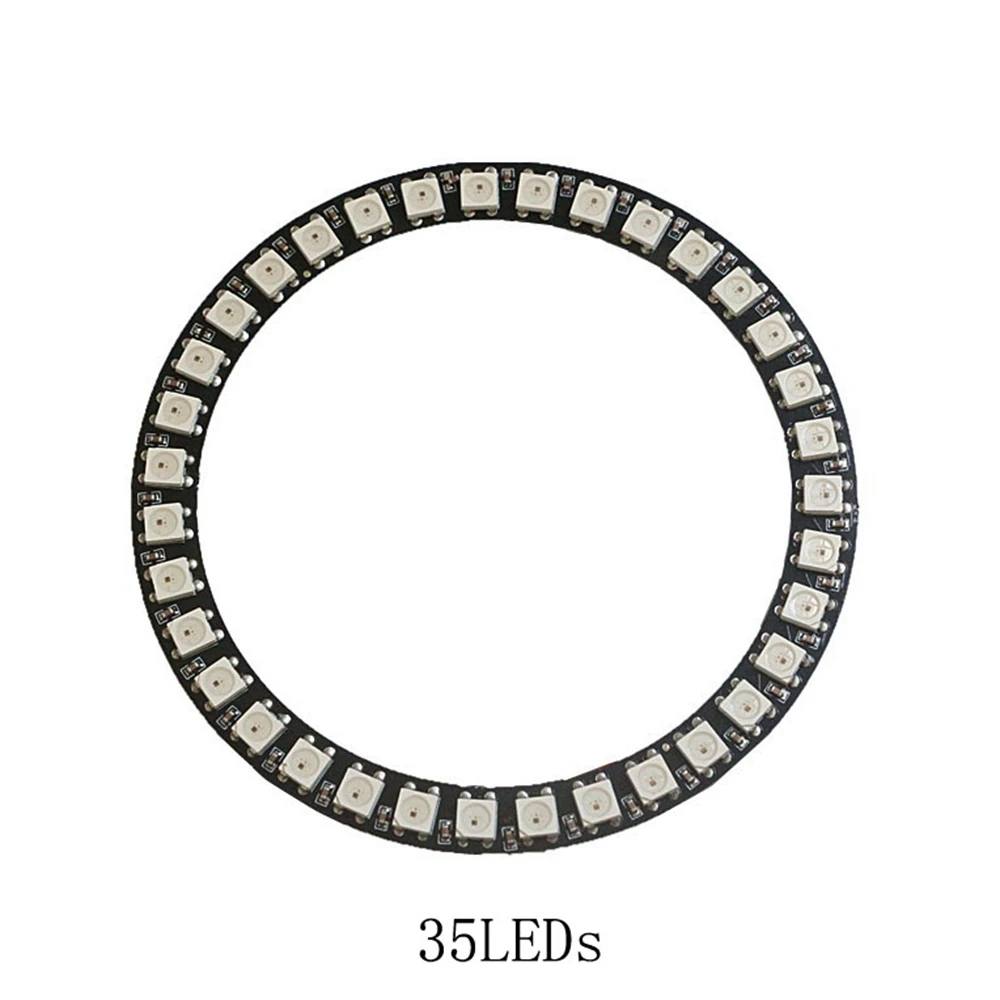

35LED 96mm 78mm 9mm

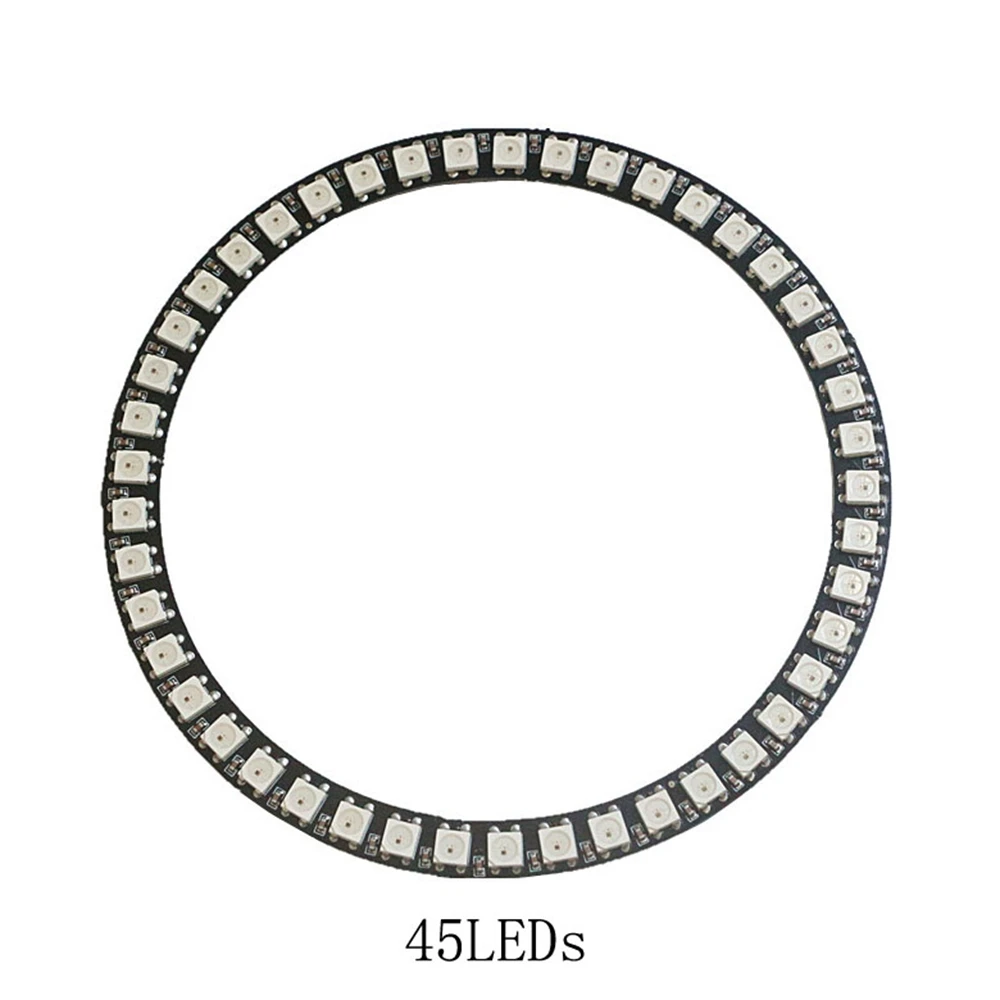

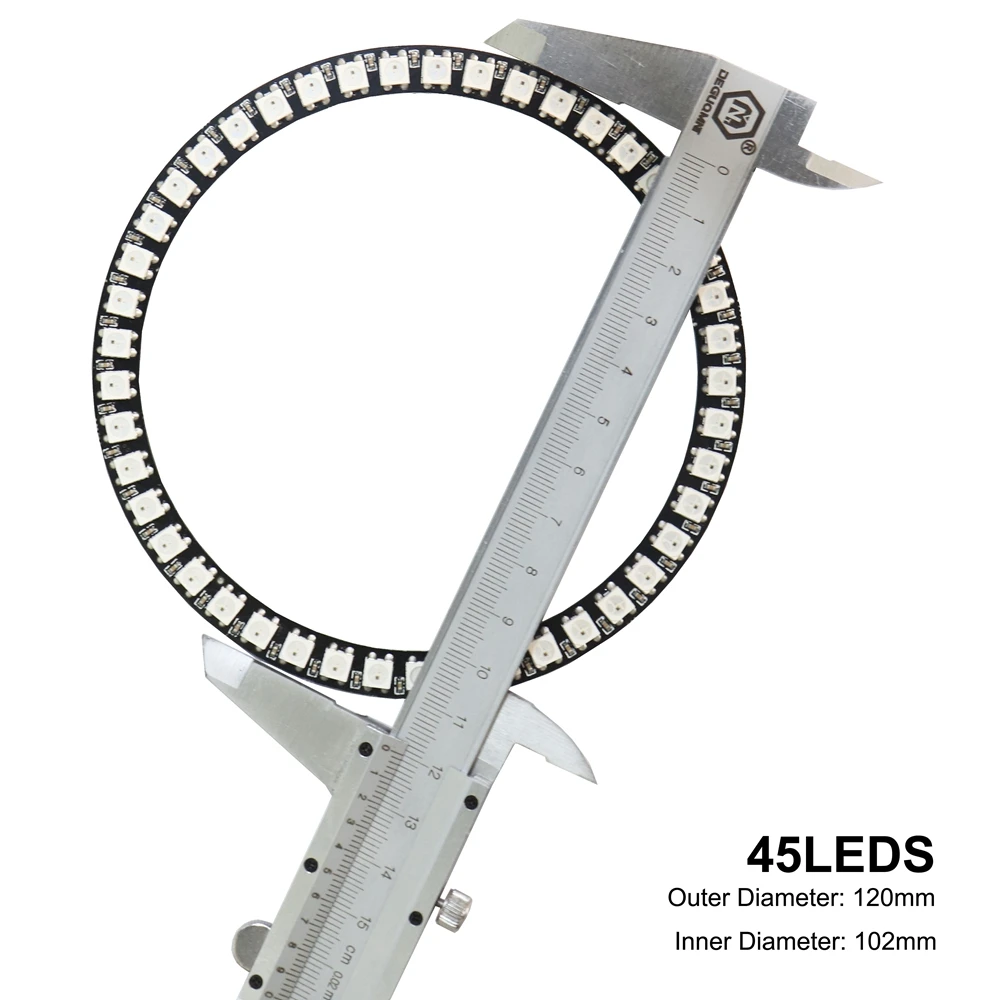

45LED 120mm 102mm 9mm

WS2812B Individually Addressable Pixel Ring 8 16 24 35 45 LEDs WS2812 Built-in IC 5050 RGB LED Ring Module Led Strip Light DC5V
