Description:

There is a single data line with a very timing-specific protocol.

Since the protocol is very sensitive to timing,

It requires a real-time microconroller such as an AVR, A rduino, PIC, mbed, etc.

It cannot be used with a Linux-based microcomputer or interpreted microcontroller

Such as the netduino or Basic Stamp.

Chip: WS2812 (Built-in LED)

LED:8/16/24/35/45Pcs 5050 RGB Full Color Highlighting

Voltage: 5V(POWER SUPPLY AND CONTROLLER IS NOT INCLUDED)

Size: Outer Diameter Inner Diameter PCB Width

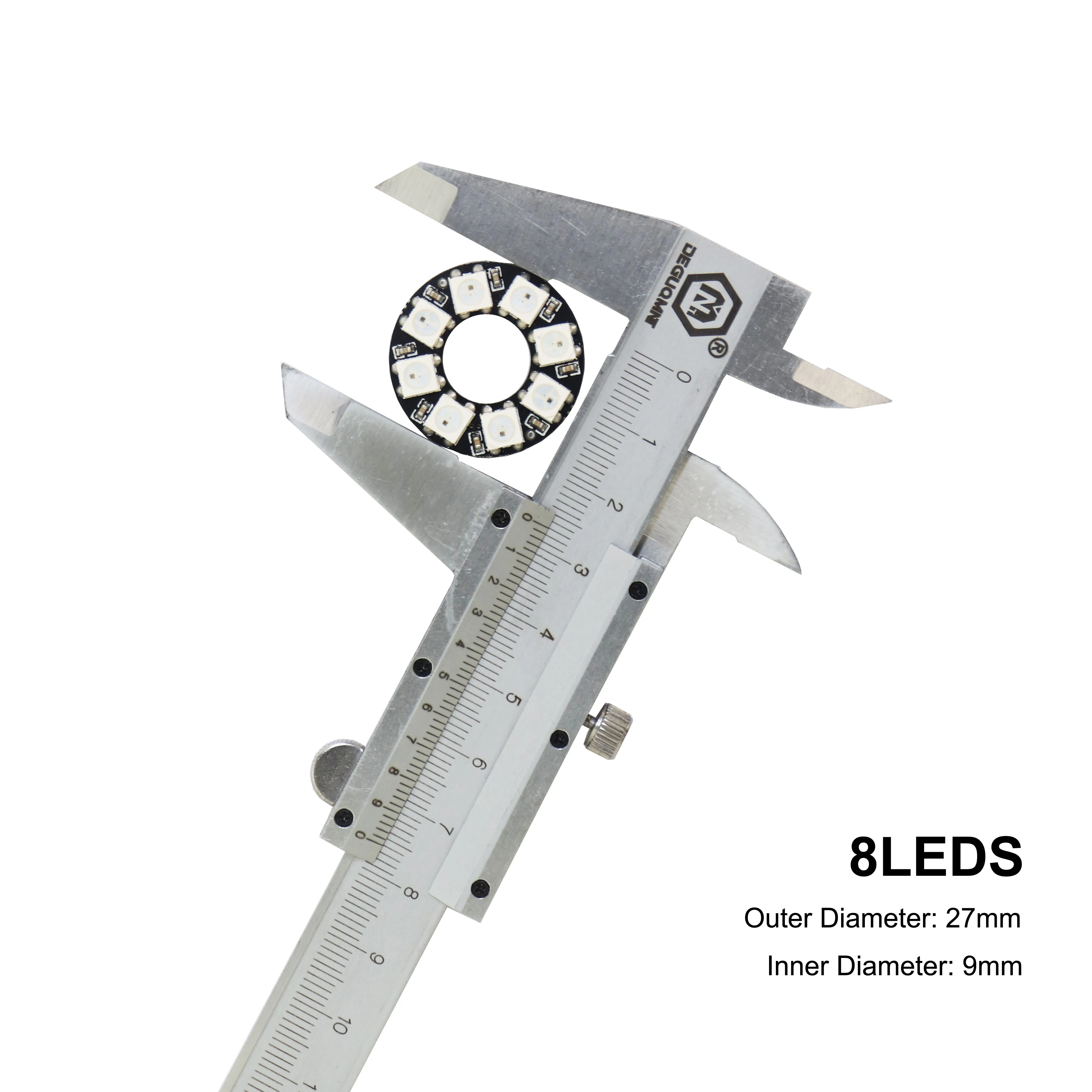

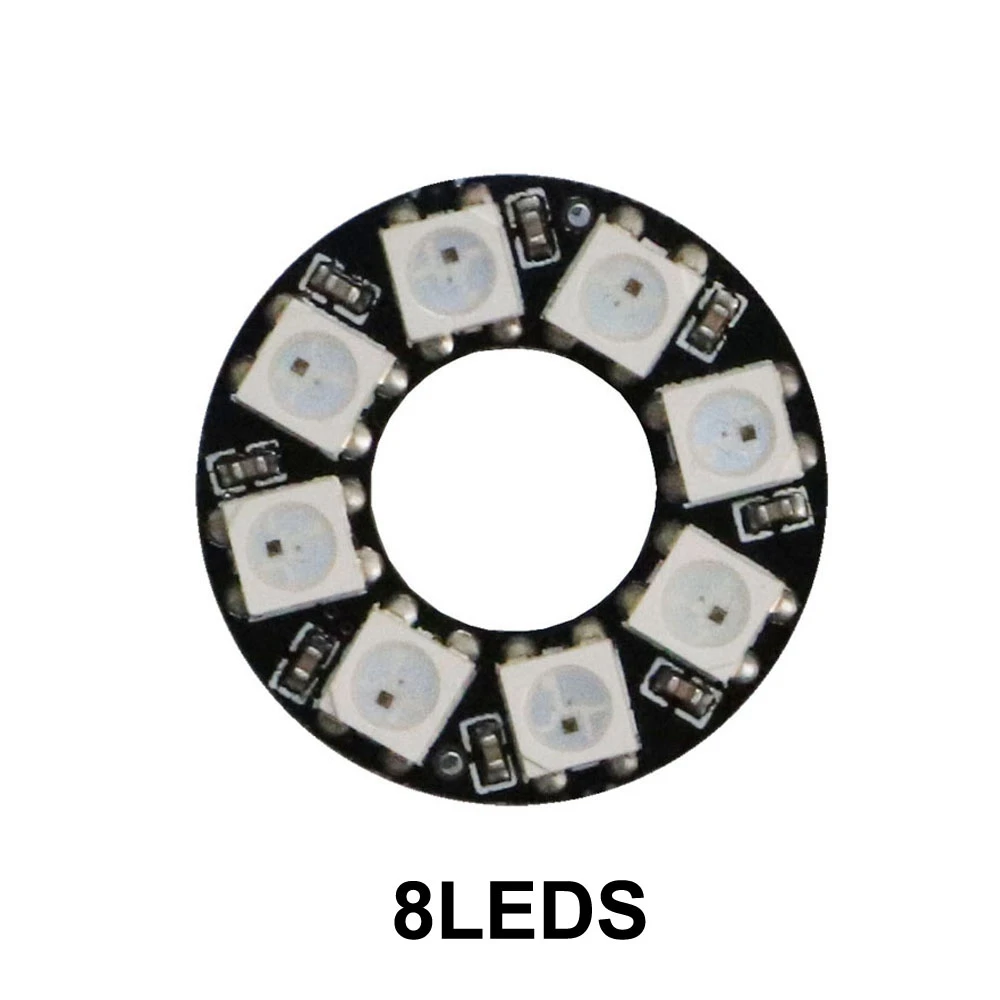

8LED 27mm 12mm 7.5mm

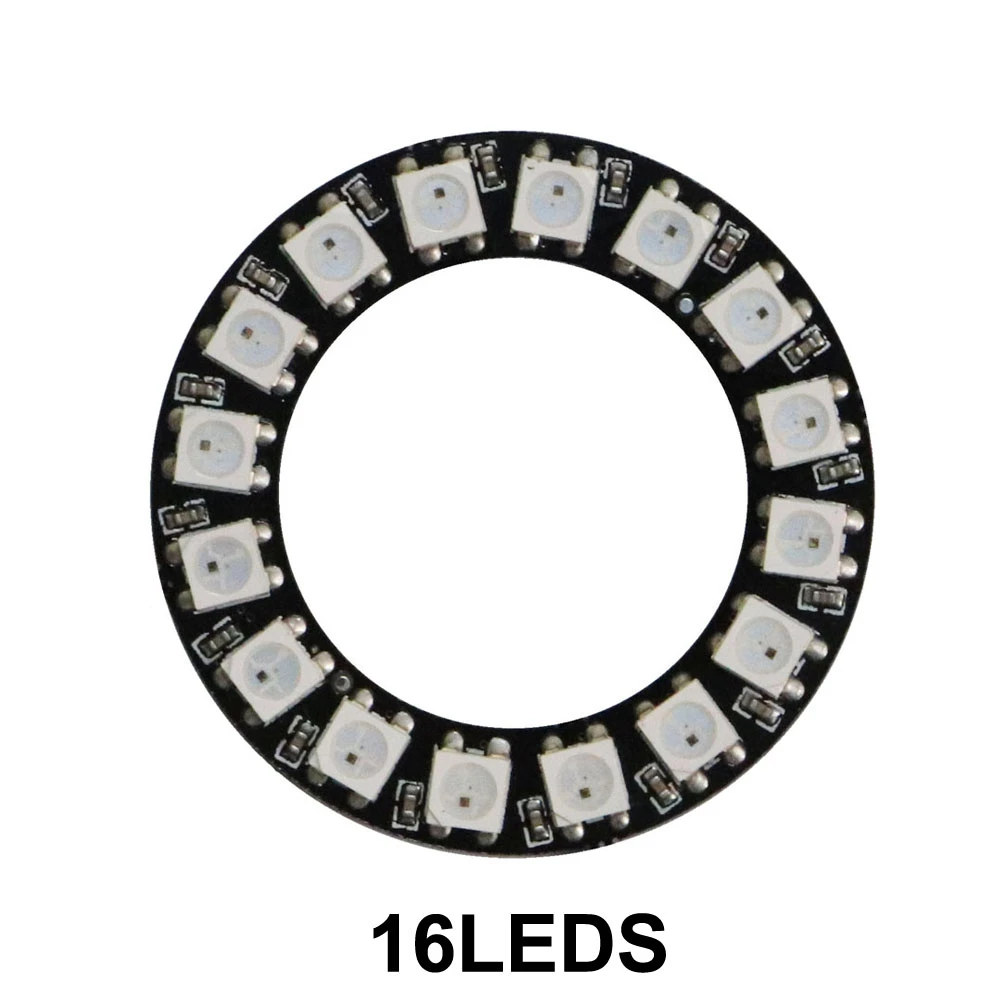

16LED 48mm 31.1mm 7.5mm

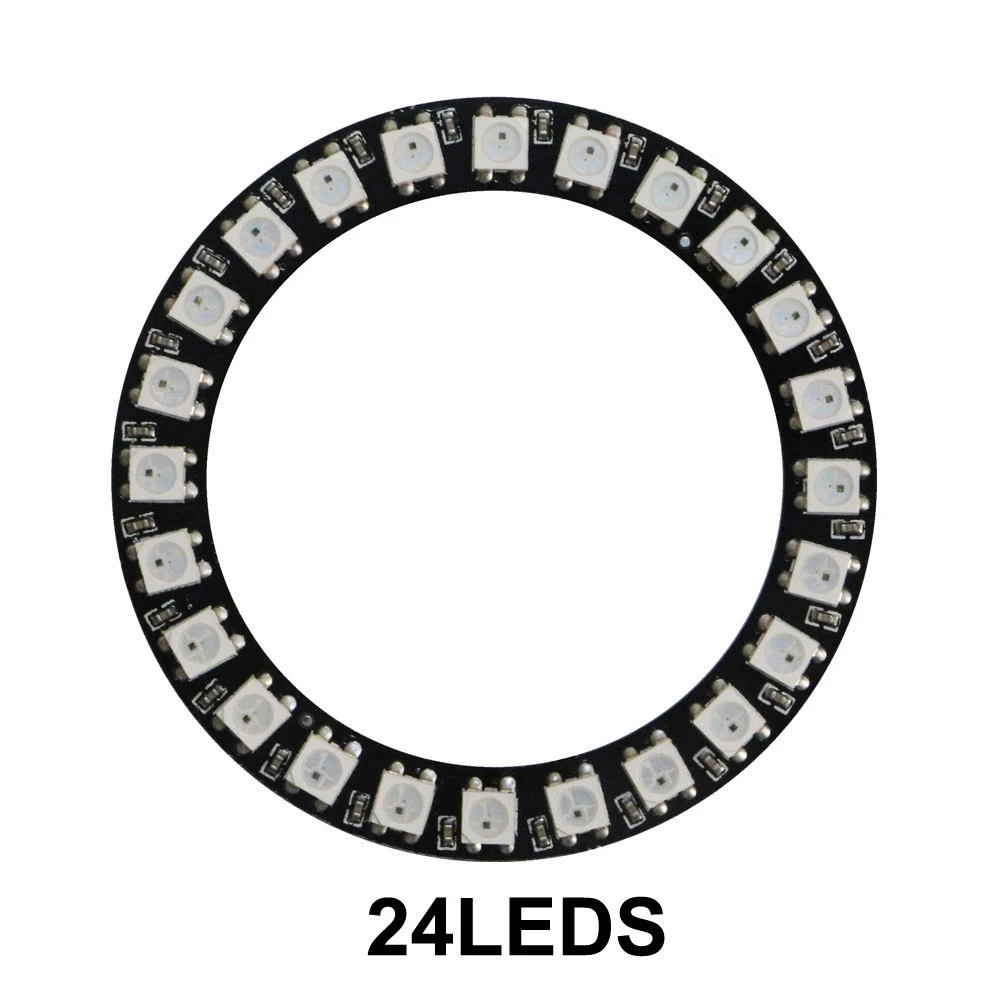

24LED 72mm 54mm 9mm

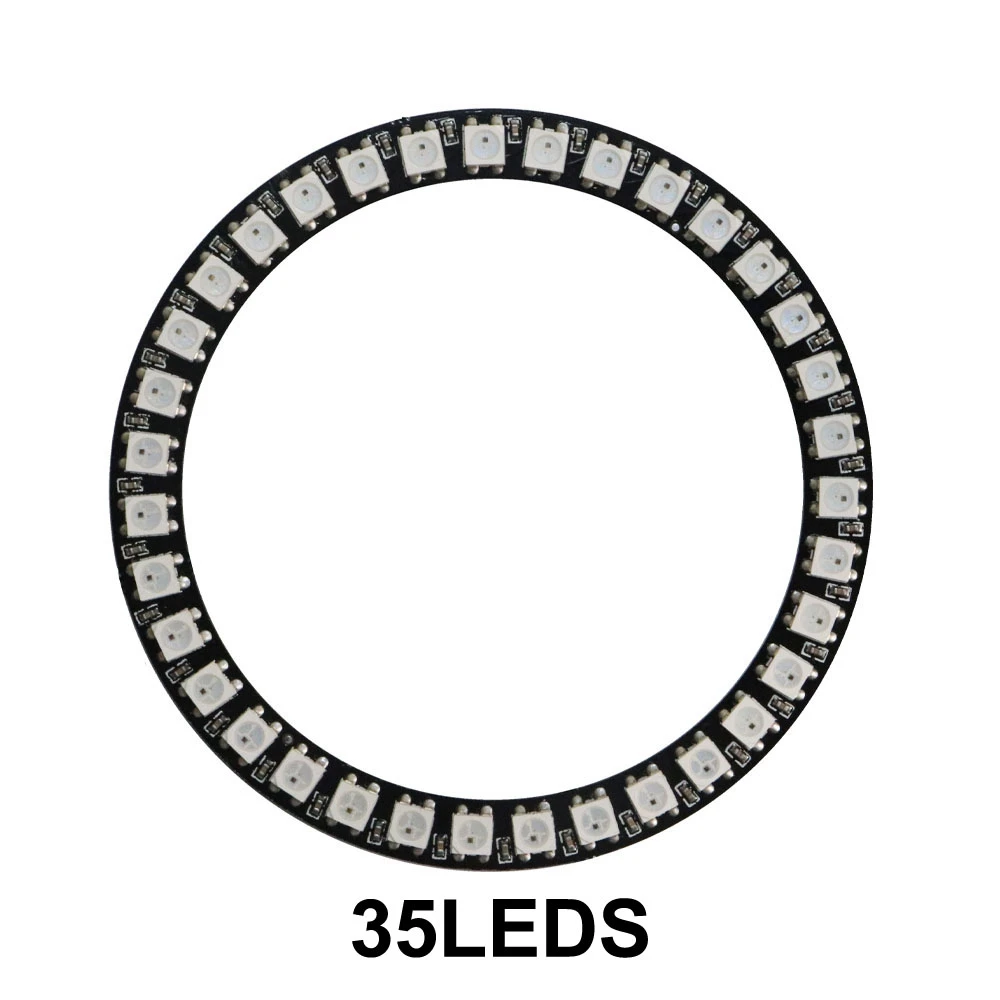

35LED 96mm 78mm 9mm

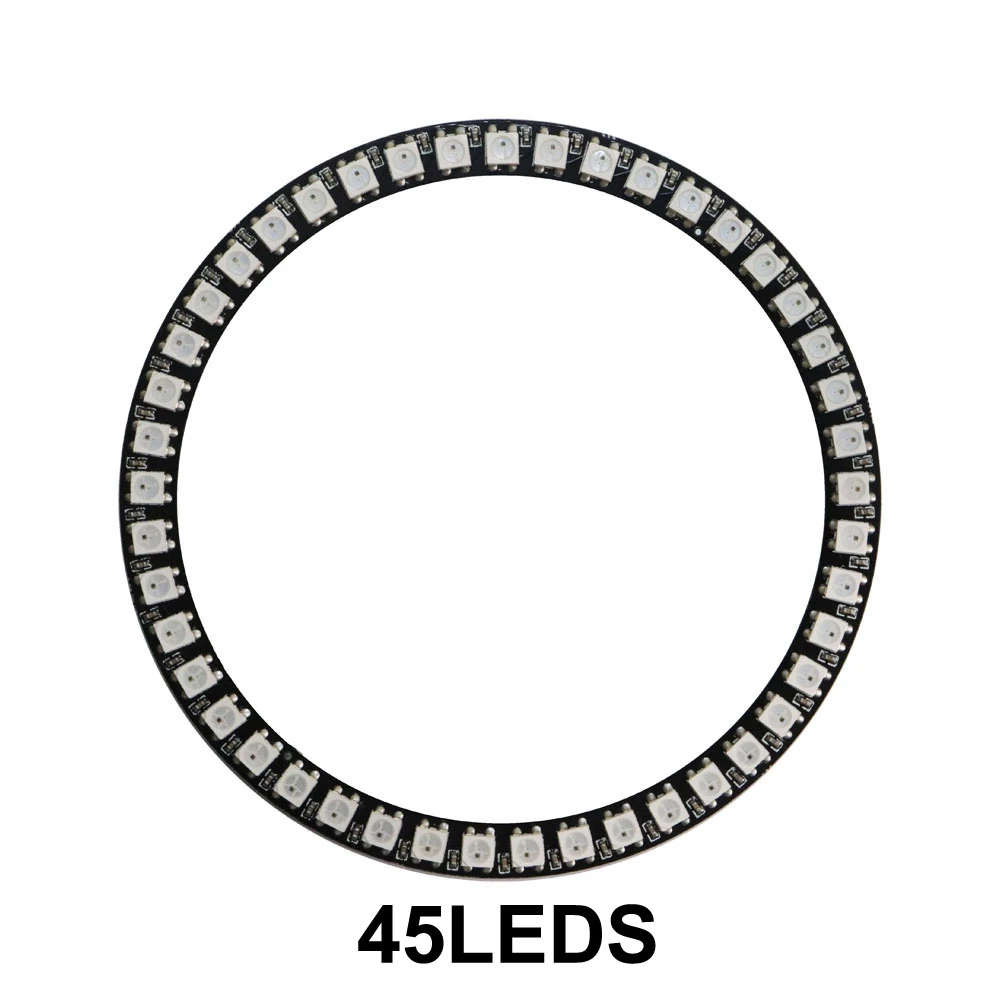

45LED 120mm 102mm 9mm

WS2812B LED Pixel Individually Addressable Ring 8/16/24/35/45Leds WS2812 Built-in IC Full Color Circle Led Modules Light DC5V
